Samian Vessels Summarised by Phase

Phase 4

A single vessel:
Tr 1 (183) One SG moulded bowl form 37, c AD 75-90 (Catalogue No 1)

Phase 5

A single sherd:
Tr 1 (144). One SG moulded bowl form 29 fragment, c AD 65/70-85 (Catalogue No 2)

Phase 5u

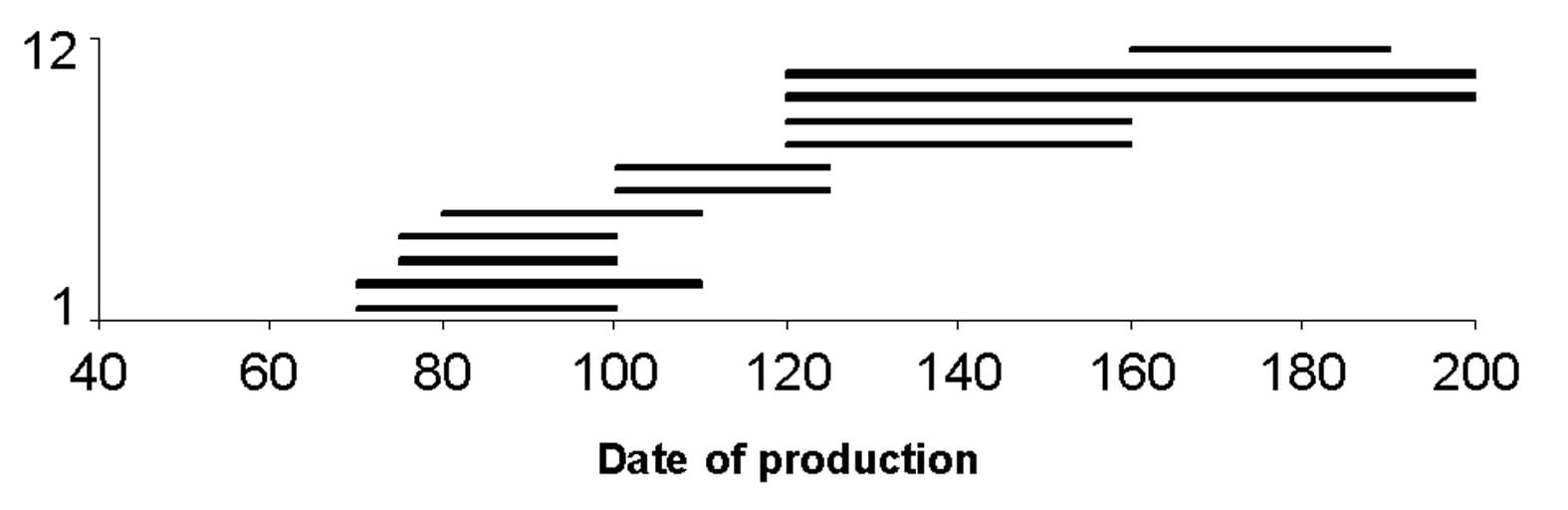

Fig 1. Floating bar diagram showing date ranges of vessels in Phase 5u contexts

(click to enlarge)



Form SG CG EG Total
 18R or 18/31R 1     1
79   1   1
30   1   1
37 3 1   4
Indeterminate 1 4   5
Total 5 7 0        12

Fig 2. Table of samian forms found in Phase 5u contexts



Figure 3
Fig 3. Floating bar diagram showing date ranges of vessels in Phase 7 contexts



Form SG CG EG Total
18 2     2
18/31   4   4
18/31R   4   4
18R 6     6
27 3 3   6
29 1     1
29 or 37 1     1
30 1     1
33 1     1
35 1     1
36   1   1
37 6 3   9
Indeterminate 9 4   13
Total
31 19 0 50

Fig 4. Table of samian forms found in Phase 7 contexts



Figure 5
Fig 5. Floating bar diagram showing date ranges of vessels in Phase 7u contexts



Form SG CG EG Total
18R 3     3
18 or 18R   1   1
18/31   1   1
36 1     1
37 2     2
indeterminate 1     1
Total
7 2 0 9

Fig 6. Table of forms found in Phase 7u contexts

Figure 7

Fig 7.  Floating bar diagram showing date ranges of vessels in Phase 8u contexts

Form SG CG EG Total
15/17 or 18 1     1
27 1     1
37   1   1
Indeterminate 1 1   2
Total 3 2 0 5

Fig 8. Table of forms found in Phase 8u contexts

Figure 9

Fig 9.  Floating bar diagram showing date ranges of vessels in Phase 9m contexts

Form SG CG EG Total
18 or 18R 1     1
18R or 18/31R 1     1
18/31   1   1
18/31R   3   3
18/31R or 31R   3   3
27 4 4   8
33   1   1
36 1     1
37 5 8   13
38   4   4
79   1   1
Indeterminate 1 2   3
Total
13 27 0 40

Fig 10.  Table of forms found in Phase 9m contexts

Phase 10

A single sherd:
Tr 1 (108) One CG dish form 18/31R, c A D 120-160, burnt almost black. Weight 9 g

Phase 11

2 rimsherds, both 2% of the rim, in Tr 1 (117): SG moulded bowl form 37 c AD 70-110, weight 3g and an EG sherd of indeterminate form c AD 160-250 (Trier?), weight 4g

Figure 11

Fig 11. Floating bar diagram showing date ranges of vessels found in Phase 12 contexts


Form SG CG EG Total
18 or 18R 1     1
18/31 or 31   1   1
31   1   1
31R group     1 1
27 2 5   7
33   2   2
36 1 1   2
37 2 6   8
38   1   1
Lud Tx   1   1
Indeterminate 4 13   17
Total
10 31 1 42

Fig 12. Table of forms found in Phase 12 contexts

Phase 14

A single fragment:
Tr 8 (805) CG indeterminate form, c  AD 120-200, a flake weighing less than 1 g

Form SG CG EG Total
Curle 11 2     2
15/17 2     2
18 2     2
18 or 18R 1     1
18 or 18/31 2     2
18R 2     2
18R or 18/31R 1     1
18/31   1   1
18/31 or 18/31R   1   1
18/31 or 31   1   1
18/31R   2   2
18/31R or 31R   4   4
31R group     1 1
27 2     2
33 1 1   2
29 1     1
30   1   1
37 7 7 1 15
38   2   2
indeterminate 4 15 3 22
Total
27 35 5 67

Fig 13. Table of forms; unstratified material from all areas (including Catalogue Nos 4, 8 and 9 above)
