Since their initial discovery on site, all of the artefacts recovered during the community dig have been separated into individual categories, cleaned, labelled and then subjected to detailed analysis.
Artefact analysis can serve many purposes. Some artefacts, such as pottery and coins, are closely datable and can therefore help to date the deposits on the site and build up a chronological sequence of events. Other artefacts give an indication of social status, for example the types of pottery that poeple could afford, the jewellery and personal adornments they wore, the food that they ate and the materials used to build their houses.

We can also learn about the occupations of people living at the site from the industrial materials left behind. Such materials include kiln waste from the salt making process (briquetage), metal casting waste and mis-fired pottery.

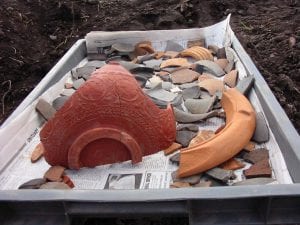

The Finds TrayBy combining the results of the separate analyses, it is possible to build up a picture of the people who lived and worked along King Street in the Roman period.

Each category of artefact is discussed in detail in the sections on the right. Many of these have been undertaken by specialists in their particular fields. A number of the analyses were also undertaken by volunteers in Middlewich, including the briquetage, building materials, metalwork and industrial residues.

As part of the analysis programme, public workshops were held with some of the specialists so that members of the community could gain a greater understanding of the purpose of this work and the methods used. A selection of photographs from these workshops can be viewed below (click images to enlarge).

Coarseware Pottery

Report on the Romano-British coarse pottery from excavations at Buckley’s Field
R.S. Leary with contributions from Kay Hartley and David Williams

A total of 3615 (54515g, rim equivalent total of 4776%) sherds of Romano-British coarse pottery were recovered during the excavations and a further 400 sherd of samian (4369g, rim equivalent total of 674%). Of these 3615 sherds of coarse pottery (54515g, rim equivalent total of 4776%) and 316 sherds of samian (3699g., rim equivalent total of 589%) came from a phased group. All the pottery is catalogued but only the phased groups are included in the quantification tables. The ceramics have been catalogued in fabric groups according to the guidelines laid down by the Study Group for Romano-British pottery (Darling 2004).

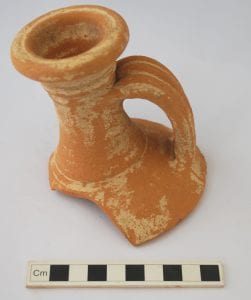

A ring-necked flagon discovered in the fill of ditch 1221, Trench 12

METHODOLOGY

The pottery was examined in context groups and the fabrics, forms, decoration, condition such as burnt or perforated, level of abrasion and cross joins were recorded. The catalogue was deposited with SLR Consulting Ltd. All pottery was quantified by sherd count, weight and rim % values. The guidelines for compiling Romano-British pottery archives set out by the Study Group for Romano-British pottery were adhered to with additional details being recorded for key groups.

The mortaria was examined in consultation with Kay Hartley who helped with fabric identification and dating. All the mortaria stamps were identified by Kay Hartley. The mortaria catalogue and discussion was compiled by R. Leary. The amphorae sherds were initially sorted by R. Leary but a selection were sent to D.F. Williams for further comment and study.

Further information about how archaeologists study pottery and what can be learnt can be found at
http://www.worcestershireceramics.org/content.php/front?expand=260 and an excellent site to aid the identification of Roman pottery in Britain can be found here http://www.potsherd.uklinux.net/

NOTE: In the ‘Chronology’ section below, the pottery is discussed by trench and phase in chronological order. The text in Italics describes individual sherds of pot from the collection, with numbers in bold italics giving each piece’s catalogue number. The complete catalogue can be viewed in the ‘Illustrated Catalogue’ section – simply click on the thumbnail images to view the artefacts. Note that it may tak a short while to load all of the images.The pottery from the site was dated by reference to similar vessels found on other sites associated with historic events, such as the building and occupation of Hadrian’s Wall and the Antonine Wall, and closely datable items such as coins. Samian ware is often more precisely dated than other kinds of Roman pottery because it was used over much of the Roman Empire and occurs in well-dated groups such as the disaster at Pompeii. Using these means four ceramic phases could be identified: Flavian-Trajanic (cAD69-117), Hadrianic (cAD117-138), early Antonine (cAD138-161) and late second to mid-third century. Although these date ranges are precise, in reality potters did not always change their repertoire right away, nor did settlement immediately acquire the latest pottery styles, so they should be thought of as rough guides only. The samian ware and aspects of the coarse ware indicated that the strong evidence for activity during the early Flavian period at the Fairclough site was lacking here and that it is unlikely that there was any diminution in activity during the Trajanic period as was suggested at the Fairclough site. During the first three phases the army was very involved in the region, and we know more about the sequence of events so the reference to the ruling emperors is appropriate. During the final phase military involvement may have been less pronounced and the dating is less precise since we know less about the history of the civilian population.Much of the Flavian-Trajanic pottery came from the buried soil layers or were incorporated into later features- very little pottery came from secure Flavian-Trajanic phases. The jars in this period were typically neckless jars with short everted-rims with shoulder grooves and/or rusticated surfaces (25, 44, 45). These may have been made in the Middlewich kiln along with flagons with near vertical ring necks made in an oxidised fabric with white slip (21). There was a smaller number of necked jars with everted rims. This was a common form at the Fairclough site Phase 1 in the Flavian period, but was less common in the Trajanic-early Antonine levels at the Fairclough site and at Barton St, Manchester (Figure 1). The smaller number found here agrees with the evidence of the samian for a stronger Trajanic presence on the site compared to the Fairclough site and perhaps less Flavian activity.

The pottery from the site was dated by reference to similar vessels found on other sites associated with historic events, such as the building and occupation of Hadrian’s Wall and the Antonine Wall, and closely datable items such as coins. Samian ware is often more precisely dated than other kinds of Roman pottery because it was used over much of the Roman Empire and occurs in well-dated groups such as the disaster at Pompeii. Using these means four ceramic phases could be identified: Flavian-Trajanic (cAD69-117), Hadrianic (cAD117-138), early Antonine (cAD138-161) and late second to mid-third century. Although these date ranges are precise, in reality potters did not always change their repertoire right away, nor did settlement immediately acquire the latest pottery styles, so they should be thought of as rough guides only. The samian ware and aspects of the coarse ware indicated that the strong evidence for activity during the early Flavian period at the Fairclough site was lacking here and that it is unlikely that there was any diminution in activity during the Trajanic period as was suggested at the Fairclough site. During the first three phases the army was very involved in the region, and we know more about the sequence of events so the reference to the ruling emperors is appropriate. During the final phase military involvement may have been less pronounced and the dating is less precise since we know less about the history of the civilian population.

Much of the Flavian-Trajanic pottery came from the buried soil layers or were incorporated into later features- very little pottery came from secure Flavian-Trajanic phases. The jars in this period were typically neckless jars with short everted-rims with shoulder grooves and/or rusticated surfaces (25, 44, 45). These may have been made in the Middlewich kiln along with flagons with near vertical ring necks made in an oxidised fabric with white slip (21). There was a smaller number of necked jars with everted rims. This was a common form at the Fairclough site Phase 1 in the Flavian period, but was less common in the Trajanic-early Antonine levels at the Fairclough site and at Barton St, Manchester (Figure 1). The smaller number found here agrees with the evidence of the samian for a stronger Trajanic presence on the site compared to the Fairclough site and perhaps less Flavian activity.

Figure 1

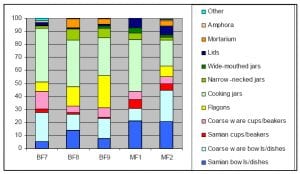

Figure 1 Relative proportion of jar types at Middlewich and Manchester (MBF, Buckley’s Field all: all phases Buckley’s Field, MF1 the Fairclough site Phase 1: Flavian Middlewich Fairclough site., MF2 the Fairclough site Phase 2: Hadrianic-Early Antonine Middlewich Fairclough site., Barton St 2 Trajanic-early Antonine. Necked jar= pre-Flavian toTrajanic with stronger presence in Flavian period, Ev rim jar, Flavian-Trajanic with stronger Trajanic presence, BB1 jar=Hadrianic-Antonine

Bowls included vessels copying the imported samian tableware from Gaul as well as a bowl with a flat reeded rim which is very common on sites of this date (4, 124). Most of the features and structures date to the Hadrianic-early Antonine features. At this time a whole range of vessels arrived from Dorset, known as black burnished ware 1 (BB1). These industries supplied much of western England and the military north with cooking wares, and because the forms change through time they provide a useful dating tool. Cooking pots, small beakers, bowls and dishes and lids were all transported, mainly by sea, to Middlewich during this period (as 31, 32, 47, 48, 49, 60 and 64).

Both the coarse pottery and the samian suggested a decline in the numbers of sherds being discarded after cAD160. This contrasts with the coin evidence from Middlewich, but corresponds to the results from excavations to the north of Buckleys Field on the Fairclough site. A small amount of material dated to the early to mid-third century, but only two vessels demanded a date later than this. The late Nene Valley colour coated range (http://ads.ahds.ac.uk/catalogue/adsdata/cbaresrep/pdf/010/01010001.pdf ) of the late third to fourth century was not represented. Only three late splayed-rim BB1 jars (5, and vessel associated with the cremation, 15) were identified, with bodysherds possibly from these or two more jars of the same type, and one developed bead and flange bowl (85). Jars in this form were not made until the third century and the bowls probably appeared in the potters’ repertoire cAD270. Only three examples of the wide-mouthed jars with everted or wedged form rims (67) of the late second to third century were present and only three of the third century bifid-rim, narrow-necked jars (11-13). Only three reeded-rim hammerhead mortaria (7-8) were present and of these one was dated to AD200-260 while the other two fell within a range of AD 230-330 and 260-350 so could belong to the mid-third century. Activity of any substance after the mid-third century in the excavated areas is unlikely on the basis of the pottery types.

Trench 1

The ceramic evidence indicated settlement from the late first century until the mid/late third century.

Phase 4-6

The earliest contexts in this trench were devoid of coarse wares but two small sherds from two South Gaulish samian decorated bowls were dated to AD 75-90 and 75-100 and came from the buried soil layer in Phase 4. A very small scrap from another South Gaulish decorated bowl came from surface layer 144 in Phase 4 and was dated to AD 65-90. Such small numbers of relatively small abraded sherds cannot be used to date these phases with great confidence but do give a reliable date after which the features must date, a terminus post quem. In this case the terminus post quem is in the late first century AD, cAD75 at the earliest.

Phase 6

Bodysherds from a Dressel 20 Spanish amphora and a local oxidised ware vessel were present in the agger 166 in Trench 1. The oxidised sherds are not closely datable but are typical of vessels made at kilns on the Cheshire Plain and Dressel 20 oil amphora were imported from southern Spain from the mid-first to the third century AD. These very large vessels, holding an average of 63 litres, were made in the Roman province of Baetica along the banks of the River Guadalquivir between Seville and Cordoba (Peacock and Williams 1986). This type was the most common and widely distributed of all amphorae, particularly in the Western provinces, being distributed along the Rhone and Rhine. Rather than wine, this vessel was principally used to distribute olive oil. These types suggest a date in the late first to early second century.

Phase 7-8

The Phase 7-8 ditch 150 in Trench 1 was clean of pottery apart from recut 127 (fill 125/126). In this fill were found fragments of vessels which can be dated to the early to mid-second century. The base of a beaker from this fill is a form typical of the Roman kilns at Wilderspool (Hartley and Webster 1973). The beaker was first formed on the wheel and then, when partially dried, tiny pieces of dried clay were attached to the walls and covered in a slip of darker liquid clay before being fired. This resulted in a “non-slip” surface for the user to grip. Such vessels were initially imported from a variety of sources in Gaul but this example is of local origin and was most common in the early to mid-second century. Part of a flanged hemi-spherical bowl (2) was also found in this layer. This form was a copy of imported samian ware bowls from Gaul. The samian bowls with internal moulding like this example usually date to the late first century but the form of the vessel, apart from this feature suggests a date in the early second century. Some very worn sherds from an FLB1 flagon with an upright rim has a little cupped area just inside the rim (1) to hold a small lid, perhaps wooden. A vessel very similar to this one was found at the Roman fort at Chesterfield in a context dated to the mid-second century (Leary 2001 no. 14) and Peter Webster dated one from Warrington to the late first to mid-second century (Webster 1992, 136 no. 521, Grimes 1930 no. 128). No black burnished ware category 1 (BB1 henceforth) was found in this feature. BB1 ware was used to make cooking pots and dishes and was traded up the west coast of England to supply military installations at Hadrian’s Wall from its source in Dorset from cAD120. It is a key type in the dating of Roman features both because we know when it started to be traded in this area, and because the forms of the pots changed over time. Excavations on Hadrian’s Wall and on the Antonine Wall and at excavations in Exeter have allowed archaeologists to date changes in the vessels very well; these dates can be applied to BB1 vessels all over Britain (http://www.potsherd.uklinux.net/atlas/Ware/BB1). The absence of BB1 sherds in this group might suggest that it pre-dates AD120 although the beaker, flagon and bowl may still have been in use in the mid-second century so a later date is possible. A sherd of samian dated AD140-70 was also present in the final fill 126 giving a terminus post quem of AD140.

Ditch 184 has a samian sherd dated AD 60-80 in its primary fill 185. This must have been re-deposited from earlier phases. The neck of an FLB1 flagon, a similar vessel to that found in ditch 150, was also found in layer 181 in ditch 184. The date of this vessel lies in the late first to second century. The material from 155 was not closely datable but this layer and 181 were above the upper fill of ditch 150 containing a sherd of samian dated AD140-170 so must belong to the mid-second century or later.

Layer 198 under metalled surface 122 contained a sherd of a BB1 jar with acute lattice burnish, a decorative style used from around AD 120 to 200. Still later forms were found within the metalled surface 122. This included an OAB1 wedge shaped rim of narrow-necked jar (no. 3, cf. Evans et al 2000 type JM9 dated second to third and third and Webster 1976 no. 4. dated second to fourth century) and several sherds of the BB1 ware traded from Dorset which appeared in this area cAD120 or later. Both bowls or dishes and jars were represented in this ware. The OAB1 jar is similar to vessels made by potters in the Severn Valley industries (see http://www.worcestershireceramics.org/hms/object.php?type=fabrics&id=63). Other vessels (as nos 11-13, 67, 73,77, 78 and 105) made at the Wilderspool kilns and found at sites on the Cheshire Plain are similar to the products of the Severn Valley industries and, given these similarities it seems likely that some potters moved from there to the Cheshire Plain around the middle of the second century when the oxidised repertoire increased. A further fragment from the flagon found in the ditch 150 recut was found in this layer demonstrating the difficulty of sherds being moved from earlier layers into later layers. Layer 104 also contained the neck of an FLB1 flagon and a narrow-necked jar with wedge shaped rim as no. 3. Layer 198 included a sherd of a BB1 jar with acute lattice burnish, AD 120-200. The pottery gives a date range in the Hadrianic to early Antonine period for this phase with the fill of the ditch 150 recut belonging in the early Antonine period after AD140.

Post hole, 164, cutting the Phase 8 trackway contained part of a GRB8 bead rim bowl (no.4). This vessel copied the imported samian table ware bowl form 37. This example has a shallow upper body and, if compared with the chronological development of the samian bowls, comes early in the series, in the late first or, perhaps, early in the second century. The vessel compares with a bowl from a Trajanic-Hadrianic kiln at Northwich (Jones 1972 fig. 11 no. 16) and from a Hadrianic context on the Fairclough site (Leary forthcoming no. 99). The undiagnostic sherds from surfaces 155 and 157 were not closely datable but a samian vessel from layer 103 dated to AD120-60. However these layers can be dated to the Antonine period, after cAD 140, on account of the samian from the stratigraphically earlier fill of the ditch 150 recut, fill 126. In Phase 8 the samian sherd from 126, dated to AD140-60, is rather later than the coarse pottery from the phase. This is likely to be the result of the nature of the site at the time, a trackway. One would not expect a great deal of pottery to be deposited near such a feature except where it bordered an area of domestic activity so the lack of later coarse ceramics need not indicate an early date.

Phase 10

The Phase 10 pit 128 contained a sherd from a late BB1 jar with splayed rim form of the mid-third century at the earliest (5) and the pottery from layer 102 represents the latest pottery from the site including several oxidised bifid-rim jars of third century type and multi-reeded mortaria from the kilns at Mancetter-Hartshill near Coventry common in the mid-third to mid fourth century (nos 6-14). The Mancetter-Hartshill potteries were major suppliers of mortaria, large Roman bowls for mixing and mashing, during the second to mid-fourth centuries and traded large quantities of these vessels to the military zones in the north of Britain. Mortaria were made by specialist potters due to the difficulty of making such large, heavy vessels and successfully attaching a rim strong enough to use to pick up the vessels. Small, sharp fragments, usually of stone or re-fired, crushed ceramics, were embedded in the inner surface of the vessels before firing to help mash or grate foodstuff.

These vessels indicate activity on or near the trench at least as late as the mid-third century. The absence of later types such as bead and flange bowls, Nene Valley or Oxfordshire colour-coated wares or late shelly wares in this trench suggests occupation did not continue significantly beyond the mid-third century.

Phase 8

Ditch 150 recut
1. FLB1 flagon with upright rim, rebated. The form compares with an example from an early Antonine group at Chesterfield (Leary 2001 no. 14) and a vessel dated from the late first to mid-second century at Warrington (Webster 1992, 136 no. 521, Grimes 1930 no. 128) 40g. Re 41% 126
2. OAB1 flanged hemi-spherical bowl. Flanged bowl forms of this type were found in Hadrianic-Antonine levels at Derby Little Chester and Chester (Birss 1985 fig. 39 no. 6 and table 6, Gillam 1970 no. 294 dated AD120-50, Grimes 1930 nos 157-60). However the internal moulding on the flanged bowl is a Flavian feature of the samian prototype. 87g. Re 20% 126

Surface 122
3. OAB1 wedge shaped rim of narrow-necked jar, cf. Evans et al 2000 type JM9 dated second to third and third and Webster 1976 nos 4-5 , .dated second to fourth. 54g. Re 11%.

A grey rusticated sherd was also present with FLA4 sherd from a large vessel, perhaps a mortarium, late first-early second century. Undiagnostic sherds in fabrics OBA1 and GRB2 came from layers 116 and 119 respectively. A BB1 bowl/dish sherd and a BB1 jar sherd were recovered from surface 103 dating to AD120 or later. A further fragment of flagon no.1 came from this layer.

Posthole 164
4. GRB8 bead rim bowl coping samian form 37. This example has a shallow upper body and if compared with the samian bowls, comes early in the series, in the late first or, perhaps, early in the second century. The vessel compares with a bowl from a Trajanic-Hadrianic kiln at Northwich (Jones 1972 fig. 11 no. 16) and from a Hadrianic context on the Fairclough site excavations (Leary forthcoming no. 99). 17g. Re 6% 164

Phase 10

Pit 191

One fragment from a burnt FLB1 ring necked flagon was identified.Pit 128

5. BB1 splayed rim, probably of mid to late third century date Gillam 1976 nos 8-9). 24g Re 8% Fill 108

Phase 11

Only a residual sherd from a late first-early second century “honey pot” was recovered. These narrow-mouthed vessels with two small handles are common in the early Roman period, particularly in the first and early second century and are a well-known type on the Continent and was introduced to Britain by the military (Evans 2000 type JH, Gose 1950 nos 420-428, Bidwell and Croom 1999, 476 types 175-7mid first to early second century)

Phase 12

Layer102

6. BB1 plain rim dish with burnished intersecting arcs outside body and outside base. Gillam 1976 no. 77 late second to early third century. 73g Re7%.
7. MH2 multi-reeded rim mortarium. AD260-350. 104g Re 21%.
8. MH2 multi-reeded rim mortarium. AD230-330. 148g Re 15%.
9. MH flanged mortarium. Antonine, probably after AD180. 29g. Re 6%.
10. OAA2/SV narrow-necked jar with bifid rim. Cf Webster 1976 type 11 third century. 20g Re 15%
11. OAA2 narrow-necked jar with bifid rim. Cf Webster 1976 type 11 third century. 21g 12%
12. OAA2 narrow-necked jar with bifid rim. Cf Webster 1976 type 11 third century. 6g. Re 12%
13. OAB1 narrow-necked jar with bifid rim. Cf Webster 1976 type 11 third century. 28g. Re 10%.
14. GRC4 wide-mouthed everted rim

This layer also contained a BB1 jar fragment with traces of obtuse lattice, a decorative motif dating after c 220AD (Bidwell 1985, 174-6). The forms present indicate a date range continuing to the mid-third century at least.

Trench 2

Phase 9 mid-third century

34 sherds of Romano-British pottery were excavated and 30 of these came from a cremation, a BB1 jar (15) with splayed rim, shoulder groove and obtuse lattice, a type dated after AD240 by Evans (2004b, 334). The jar was rather burnt around the lower body both internally and externally, with burnt matter outside the body and some limescale inside. The limescale suggests that this was a well used domestic cooking pot taken from everyday use for use during the funerary rites. There was a small perforation through the body of the jar, perhaps indicating the jar had been repaired at some point, such repairs were usually made using lead rivets or cleats. The use of lead rivets in pyre goods and cremation urns may, however, have a ritual significance. Lead is a metal associated with the gods of the underworld, being particularly associated with ill health and death and used as a medium for curses (Tomlin 1988, 81). Riveted vessels are not uncommon in graves but their associations do not always suggest mere poverty. Rather their presence in otherwise rich graves suggests some other significance, perhaps linked to the particular suitability of lead alloys for the gods of the underworld (Cool and Leary forthcoming).

This jar was largely incomplete and is likely to have been offered on the pyre and been gathered up with some of the cremated bones rather than serving as a cremation urn. This is a common occurrence and ceramic pyre goods seem to have been both commonly offered at military sites and also had sherds collected for burial (Leary 2008). Also present were a BB1 jar sherd with acute lattice burnish, a BB1 flat-rim bowl/dish sherd with acute lattice burnish, both of second century date, and two GRA4 sherds. These showed no signs of being burnt and are likely to be residual sherds from earlier occupation.

15. BB1 jar with splayed rim, shoulder groove and obtuse lattice. One perforation, 4mm by 2mm through a wall sherd. 359g. Re 14%. 208.

Trench 4

The three earth-cut features 403, 405 and 408 in Trench 4 contained ceramic assemblages dating to the Hadrianic period.

Pit 403

The assemblage from pit 403 included some large sherds which were relatively unabraded as well as smaller abraded sherds. Conjoining sherds were found in fills 402, 417 and 412 and roughcast sherds, probably from the same beaker, were found in fills 409 and 412. BB1 was present in the earliest fill with pottery, 419, so infill took place after AD120. A BB1 jar from this fill had wavy line burnish on the neck which was a decorative motif which went out of fashion towards the middle of the second century AD (18). The proportions of campanulate bowls (nos 20, 22, 28, 34-36) and late first-early second century neckless, everted-rim jars (17, 25 and 26) were high and the BB1 vessels (nos 18, 31, 32, 38, 39) present suggested a date before the middle of the second century. The neckless everted rim jars, rusticated (rustication is a technique where a tool was used to roughen the surface of a pot while the clay was still wet to form linear or nodular raised area similar to spikes created using royal icing on a Christmas cake) or plain, declined numerically during the Hadrianic period (Gillam 1970 types 97-8, AD 80-130, and nos 103 and 105, AD70-120) and their relative abundance in this pit group may indicate that the assemblage represents ceramic debris dating to the Trajanic-Hadrianic period, perhaps deposited early in the Hadrianic period. If compared with the Trajanic and Hadrianic groups from the stream deposit and mansio deposits at Melandra, the pit 403 assemblage is closer to the Trajanic group which included some BB1 vessels (Webster 1971 table 1). In the stream deposit, c23% of the group comprised everted-rim jars and only 2% were BB1 jars whereas in the mansio deposit this ratio is reversed with 22% BB1 jars and 2% everted rim jars. In pit 403, using rim equivalents, everted rim jars made up some 37% of the group and BB1 jars c 15% suggesting a date early in the Hadrianic period. The samian ware supported this dating and included a fragmented dated to AD 100-140 from fill 419 and another dated AD120-60 from fill 410.

Other vessels of interest from this pit include a tazze from fill 419 (16). Tazzes were used as incense cups and, like this one, are often found scorched on the inside where the incense has burnt. Another vessel from fill 417, a small mica-dusted beaker of early second century type (no. 19, Marsh 1978 type 22) was scorched along the rim edge and may have been used in a similar way. At Manchester a building probably used as a temple or shrine had a high proportion of beakers and it was thought that this related to the rites being carried out there (Leary 2007, 106-8). The scorching on this beaker may indicate that it was also being used in a similar way to the tazze for burning incense or fragrant oils. Fragments from a ring-necked flagon (21) add to this range of vessels and a Dressel 20 rim (24) from a one of the large oil amphorae from Spain add to the types of comestibles being used on this part of the site.

Part of a G4 storage jar (29) along with a GRB1 lid (27) and a BB1 lid (31) add another aspect to the function of the area, namely storage of goods. A rim sherd from a narrow-necked jar with almost flat everted rim (37) may belong to an early series of vessels related to so-called honeypots (see 59) and a misfired or burnt FLB1 carinated bowl with rouletted upper and lower body (30) is copying one of the imported samian bowl forms of the mid to late first century. Sherds from a ring-and–dot beaker were present and this type is typical of the late first to early second century date (40). Two other bowls, a GRA1 bead and flanged hemi-spherical bowl and an OAA1 grooved-rim vessel of uncertain form (33 and 23) were also present. The latest sherd from pit 403 was a Nene Valley beaker sherd from the final fill 402 with en barbotine decoration (41) made from the mid/late second century to the third century. The Nene Valley industries near Peterborough supplied much of the fine wares to the Midlands and Northern Britain in the third and fourth centuries but the journey to the settlements on the Cheshire Plains would have involved a long and expensive journey overland so these wares were not common in this region.

BB1 sherds were present in the lowest fill but the preponderance of neckless jars of late first-early second century type and the form of the campanulate bowls, close to the terra nigra prototypes from Upper Germany and Rhaetia (Greene 1979, 110 type 6 fig. 46, Ward 1981 types III.1 and .2 and III. 1 and p. 62-3), suggests the group belongs to the early second century in the Hadrianic period. At Usk Greene gives a mid-late first century date range for the Terra Nigra bowls which have somewhat deeper profiles than the Middlewich vessels. At the Fairclough excavations, this form was associated with Hadrianic-early Antonine pottery (Leary forthcoming). At York a similar vessel, type BB (Monaghan 1997 no. 3935), was dated Flavian to Hadrianic-early Antonine. A similar form was present at Warrington (Webster 1992, fig. 32 nos 246, 313) and at Whitchurch in a Flavian-Trajanic and a late second century group (Jones and Webster 1969, nos 124 and 148) where a Gallo-Belgic derivation is noted with continuation into the late second century (Gillam 1970 nos 211-2). A group of similar carinated bowls with plain everted or bifid everted rims occurred at Wall cemetery site, Warwickshire associated with Hadrianic-early Antonine pottery and at rural sites at Coleshill and Tiddington, Warwickshire in contexts dated to the mid to late second century (Booth 2006 no. 498 and 1996 nos 184-196 respectively). Its’ association here with BB1 jars of early second century type may indicate popularity in Middlewich in the Hadrianic period. Although some of the pottery may belong to an earlier phase, these may have been cleared up into this feature in the Hadrianic period. The number of large fresh sherds of this bowl type rather suggested it was contemporary ceramic rubbish.

Fill 402 had the greatest number of sherds. It was not absolutely clear how many campanulate bowls were present but an unusually high number were identified and the presence of an oxidised example along with some undiagnostic waster GRB1 bodysherds raises the possibility that these were being made nearby along with neckless everted rim jars of which two distorted rims were present. Pottery has previously been identified on the Fairclough site in the form a kiln (http://www.earthworksarchaeology.co.uk/pages/projects.htm)
excavated by Earthworks and dated by them to the late first to early second century.

Pit 405

In contrast only a very small number of sherds including three rusticated sherds and a rim from a neckless everted rim jar came from pit 405 fill 404. All of these types were common in the late first to early second century.

Pit 407

In pit 407 a reduced mica-dusted campanulate bowl (42) similar to the grey ware examples from pit 403 was present with a CC4 roughcast ware beaker (43). This fabric compared to a sherd found in the Severn St kiln at Manchester dated to the late first to early second century. An everted rim from a neckless everted rim jar of late first to early second century type was also present with undiagnostic BB1 sherds from a bowl or dish and a jar. The BB1 sherds give a date after AD120 for this group and the early character of the pottery with several of the Flavian-Trajanic types still present point to a Hadrianic date. An incomplete mortarium rim in oxidised ware with white slip is of local origin, perhaps Wilderspool, and was given a date in the first half of the second century and a samian sherd came from a vessel dated AD 70-100. The sherds from this pit were relatively small and abraded.

Feature 403

Lowest fill 419
16. FLB1 tazze. Scorched and blackened inside body and over rim. 35g. Re 19%
17. GRA1B neckless, everted-rim jar, slight distortion of rim. 48g. Re 14%. A second, slightly distorted vessel of similar form was also present in this fill.
18. BB1 everted rim jar with wavy line burnish on neck and acute lattice burnish on the body. Gillam 1976 nos 1-2. Burnt with burnt matter adhering to the neck and upper body. The form suggests an early to mid-second century date, before the middle of the second century. 52g. Re 5%.
At least five other jars in the same form as no. 17 were present along with the neck of an FLB1 flagon, FLA2 bodysherds and a plain GRA1b rim probably from a bowl of campanulate form

Fill 417

19. MG3 beaker/small jar with short everted rim, double shoulder groove and at least two undulations of the middle and lower body, cf Marsh 1978 type 22 early second century. Non-adjoining sherds present in fills 417 and 412. 116g Re 44%. Some scorching visible along part of the rim edge.

Fill 412/416

20. GRA1 campanulate bowl with groove above carination 37g. Re 20%. 412
21. FLB1 ring-necked flagon. 6g 155. 412
Part of the MG3 beaker no. 19 came from this fill. A neckless everted-rim jar and a second campanulate bowl were present similar but not the same as that from fill 402 (no.22) Other undiagnostic GRB and OAB1 sherds were identified and sherds of Dressel 20 and fabric FLA2 were present in fill 416.

Fill 410
22. GRB1 campanulate bowl. 84g. Re 6%.
23. OAA1 open vessel, bowl or dish, with grooved rim and groove outside upper body. 12g. Re 10%.
24. Dressel 20 rim. No. 89 in Martin-Kilcher’s Dressel 20 rim typology, c. AD 110-150 [1987, Beilage 1, no. 80. 144g Re 15%.

Body and handle fragments from an FLB1 flagon, the rim of a Malvernian jar and some oxidised bodysherds were also present.

Fill 409/411

25. GRB2 everted-rim jar. 34g. Re 21%. 409
26. GRB1 rim of necked jar with everted rim. 5g Re 5%. 409

The base and lower body of a CC4 roughcast beaker and sherds from a BB1 jar with acute lattice burnish and a campanulate bowl as no. 22 were present in fill 409.

27. GRB1 blunt-rim lid. 11g Re 1% 411
28. GRB1 base and lower body of campanulate bowl. 229g. This vessel has shallow spaced grooves/burnish line on the body and is almost certainly the same as a rim sherd from 402 with similar treatment. 411

Fill 406

29. G4 very abraded everted-rim storage jar 43g. Re 6%.

Undiagnostic sherds included a hemi-spherical bowl with a flange stub and the neck of an FLB1 flagon.

Fill 418

30. Misfired or burnt FLB1 carinated bowl with rouletted upper and lower body, probably a samian form 19 copy. Mid-late first century. 11g
31. BB1 lid decorated with burnished zigzags. 20g. Re 6%
32. BB1 necked jar with acute lattice decoration. Gillam1976 no. 3 mid- to late second century. 48g Re 10%

This deposit also contained another campanulate bowl as no. 22 and a neckless jar as no. 17. Rusticated GRB1 bodysherds were present and a MH1 mortarium of the first half of the second century. Two cordoned SV2 sherds were present. A GRB2 bodysherd was both distorted and bubbled and is best considered a waster sherd.

Fill 402

33. GRA1B flanged rim from bowl with low bead rim and flange level with rim. A hemi-spherical form.13g. Re 5%.
34. GRB1 campanulate bowl 119g. Re 26%. 759
35. GRB1 campanulate bowl. 98g Re 32%.
36. OBB1 campanulate bowl. 71g Re 5% Possibly GRB1 vessel burnt or waster.
37. GRB1 rim of rather narrow necked vessel with rim turned out almost flat. 19g Re 23%.
38. BB1 necked jar with burnished wavy line on neck and acute lattice on body. Gillam 1976 nos 1 -2 early-mid second century. 20g Re 31%
39. BB1 necked jar with burnished wavy line on neck. Gillam 1976 nos 1-2 early-mid second century Burnt. 28g. Re 12%
40. GRB1 everted rim of small jar/beaker. Bodysherds with ring and dot decoration present in this context may be from the same vessel 5.4g Re 16%
41. NV1 beaker sherd with barbotine dot trail. 6g.

This fill had the greatest number of sherds. It was not absolutely clear how many campanulate bowls were present but an unusually high number were presented and the present of an oxidised example along with some undiagnostic waster GRB1 bodysherds raises the possibility that these were being made nearby along with neckless everted rim jars of which two distorted rims were present.

Pit 405

A very small number of sherds including three rusticated sherds and a rim from a neckless everted rim jar came from fill 404. All of these types were common in the late first to early second century and the small size of the group means closer dating eludes us.

Pit 408

42. GMG1 bowl with flaring everted rim. Probably a campanulate bowl as those from feature 403. 16g. RE 10%. 407
43. CC4 grooved, cornice rim roughcast beaker. 12g RE 10%

An everted rim from a neckless everted rim jar of late first to early second century type was also present with undiagnostic BB1 sherds from a bowl or dish and a jar. The BB1 sherds give a date after AD120 for this group and the early character of the pottery with several of the Flavian-Trajanic types still present point to a Hadrianic date. An incomplete mortarium rim in oxidised ware with white slip is of local origin, perhaps Wilderspool, and was given a date in the first half of the second century. The sherds from this pit were relatively small and abraded.

Trench 5

This trench had 13 Romano-British sherds in context 501 and these comprised four Dressel 20 amphora sherds, an FLA4 sherd, a bodysherd from a Mancetter Hartshill mortarium and seven OAB1 bodysherds. The Mancetter-Hartshill mortarium sherds dated after AD140.

Trench 8

Two contexts 802 and 805 contained Romano-British pottery. The pottery from 802 included some indeterminate mortarium sherds probably from Wroxeter dated to the first half of the second century, OAB1 roughcast sherds and the rim of a SV1 wide-mouthed jar with an everted rim belonging to the earlier group (Webster 1976 no. 20-21, first-second century). A second incomplete rim from a flanged Mancetter-Hartshill mortarium came from 805 with a Nene Valley colour-coated sherd with rouletting and four OAB1 bodysherds. The Mancetter-Hartshill mortarium had traces of a name stamp (140) and was dated to the early second century.

All the sherds from this trench were abraded. The Nene Valley ware sherd points to a date in the mid to late second century and the mortaria give a date range in the first half of the second century and the samian sherds were only broadly datable in the range AD 120-200.

Trench 9

Pit 909 in Trench 9 was in use perhaps in Phase 5 or 6 and fell into disuse, being filled up during Phases 7 and 8. The pottery from the buried soil layer in Trench 9 (905 and 906) included early-mid second century forms such as the neckless everted-rim jar (as no.32), a variety of second century BB1 jars, bowls and dishes. Some Dressel 20 oil amphora sherds were present. A possible medieval sherd was also identified. The latest sherds were two BB1 jar sherd with obtuse lattice, a decorative motif dating after cAD220. These soil layers were clearly receiving sherds throughout occupation of this area of the site.

Pit 909, dug into this horizon, contained a group of Hadrianic-Antonine pottery. The lowest fill with ceramics, 912, contained pottery datable to the early second century. No BB1 sherds were present at this level so a Trajanic date is possible. An OAB1 roughcast ware beaker base was present and two jars, neckless, everted-rim jars (44 and 45). Both were types common in the late first to early second century. The samian included vessels dated to AD70-100 and 70-110 suggesting a Trajanic date is likely. The red clay fill 911 contained three large Dressel 20 oil amphora sherds with fragments from an FLA2 flagon, and the top of a GRB1 knobbed lid (46). The main concentration of pottery however was in layer 908. Sherds were abraded but relatively large including significant proportions of two BB1 jars (47 and 48) of Hadrianic-early Antonine date, a rouletted beaker (50) and flanged bowl (51) of similar date range and an unusual narrow mouthed vessel/beaker (52). OAB1 roughcast beaker sherds were also present along with a mid-second century BB1 bowl (49), an OBB1 bead rim from a narrow-necked jar and an OAB2 everted rim from a wide-mouthed jar. The date range of this group was concentrated in the mid-second century. The oxidised wide-mouthed jar and narrow-necked jar could belong to the late second century but nothing demands a date after the mid-second century. Fill 907, a layer of briquetage above fill 908, contained similar material in an abraded state including a BB1 jar with wavy line burnish. A date in the Hadrianic-early Antonine period is indicated.

Phase 7 to 8

Pit 909

Fill 912

An OAB1 roughcast ware beaker base was present.

44. GRA1 neckless jar with triangular rim, probably belonging to the short everted-rim jar series of the late first-early second century. 10g Re 15%.
45. GRA2 short everted-rim jar with shoulder groove of the late first-early second century. 17g. Re 19%

Fill 911

Three large Dressel 20 amphora sherds were recovered from this layer with fragments from an FLA2 flagon, grey ware bodysherds and the top of a GRB1 knobbed lid

46. GRB1 knobbed lid. 64g.

Fill 908

47. BB1 everted-rim jar with acute lattice burnish. Gillam 1976 no. 3, mid to late second century. A rim from a second similar jar with wavy line burnish was also present. This was encrusted with burnt matter. 183g Re 60%.
48. BB1 neckless small jar/beaker with short everted rim, with acute lattice burnish. Burnt with burnt matter outside rim and body, Gillam 1976 no. 17. 113g. Re 15%.
49. BB1 flat rim bowl with burnished acute lattice, Gillam 1976 no. 37 mid second century. 43g Re 15%.
50. CC1 everted-rim rouletted beaker. 31g Re 13%.
51. OBA1 flanged hemi-spherical bowl. 71g Re 10%
52. GRC4 vessel with bulbous body and long necked, funnel rim. Unknown form. 52g Re 10%

Trench 12

Phase 4

Gully 1290

In Trench 12 five body sherds (FLA7, GRA2 OAB1 and OAB4) were found in gully 1290. Although these lacked datable features for the most part, one sherd came from a jar with the shoulder groove typical of the late first-early second century jars (as no.45).

Phase 5

Four bodysherds of wares FLA2, GRB1 and OAB1 were recovered from buried soil 1263. The GRB1 sherd was from a jar with a double shoulder groove, a feature typical of the everted-rim jars of the late first to early second century. These few sherds could be late first to early second century but the small number precludes certainty.

Two further buried soil deposits (1231 and 1219) belonged to this phase stratigraphically but these were not sealed deposits and their pottery shows that some groups continued to accumulate during Phases 7 and 8.
Phase 7

Sherds from a BB1 jar with acute lattice from clay floor 1208 date this feature to cAD120 or after. Jars with acute lattice burnish around the body date to cAD120-200/220 since after that the angle of the lattice decoration became more obtuse as time went on. These small changes in decoration can help date features quite precisely. This layer also contained sherds from a FLA2 rebated rim large flagon and a large FLA7 flagon (53 and 54) in form similar to the Gauloise 4 wine amphora.

A sherd from a samian vessel dating to AD120-200 came from cobble layer 1267, and the overlying clay floor 1266 contained a plain-rim BB1 dish with acute lattice burnish dating to the early to mid-second century (Gillam 1976 no. 75).This fragmented layer also contained a samian sherd of much later date, AD 170-260, but this may have derived from late activity in the vicinity.

A single samian sherd from pit 1230 was given a date range of AD120-200.

Sealed buried soil layers

Two deposits of buried soil were fully sealed under Phase 8 features and belong to Phase 7. These contained pottery of Hadrianic-early Antonine type including samian dated AD120-60. Buried soil 1271 was sealed under clay layer 1261 and contained a group of abraded and quite small sherds. Some sherds were late first to early second century types – everted rim jars and rusticated ware – but Hadrianic-early Antonine types were also present a ring necked flagon with pronounced upper ring, a GRB1 campanulate bowl and a BB1 lid (as nos 31 and 122). The pottery suggested accumulation in the late first or early second century until the Hadrianic/early Antonine period. The very small group from buried soil 1284 sealed under clay surface 1268/1283 included bodysherds from a ring and dot beaker, an OAA1 everted-rim jar and a Gauloise 4 amphora giving a date range in the late first to early second century.

Clay floor 1208

53. FLA2 rebated rim large flagon/amphora as Gauloise 4. 196g Re 22%
54. FLA7 rebated rim large flagon/amphora as Gauloise 4. 33g. Re 10%.

Also present the body of a BB1 jar with acute lattice burnish (cAD120-200) gives a Hadrianic terminus post quem.

Phase 8

Pit 1254

Pit 1254 fill 1242 contained a burnt BB1 rim of jar with everted rim of mid-late second century type (no. 57, Gillam 1976 nos 3-4 mid-or late second century). Also present was a MG3 carinated bowl with everted rim (55), similar to campanulate bowls but the upper wall slopes in more and the rim makes a sharper angle with the body, similar to vessels made at the Wilderspool kilns (Hartley and Webster 1973 nos 49-52). Fill 1232 yielded a small sherd from an unusual Terra Nigra eggshell ware vessel (58) with rouletted decoration outside the middle body, a groove and burnished all over. The form is not readily paralleled but belongs to the mid-late first century. Abraded sherds from this layer included a fine white ware “honeypot” (59), another type common in the first and early second century. Later sherds such as a BB1 jar (Gillam 1976 no. 3) dated to the mid-second century and an abraded scrap of colour-coated ware may come from a vessel made in the Nene Valley kilns. Nene Valley colour-coated ware is unlikely to have come before the mid-second century and at Manchester did not appear until period 3 Phase 3 dated after AD160 (Leary 2007, 10 and Gregory 2007, 45-50). This sequence suggests a date range from cAD120 until the mid-second and early late century, cAD160, for the infilling of this pit. The small sherds of earlier material are likely to be from earlier layers through which the pit has been dug and which have fallen in after the pit fell into disuse and its side begun to crumble and collapse into the pit cavity. A date within the range mid to late second century is suggested and samian included a sherd dated AD120-60 and two vessels dated AD120-45.

Fill 1242

55. MG3 carinated bowl with everted rim, similar to campanulate bowls but the upper wall slopes in more and the rim makes a sharper angle with the body. Hartley and Webster 1973 nos 49-52. 37g Re 11%
56. GRB2 necked jar with everted rim tip. Most common in Flavian contexts at king St but still present in Hadrianic period. 35g Re 25%.
57. BB1 rim of jar with everted rim. Gillam 1976 nos 3-4 mid-late second century. Burnt. 18g Re 6%.
Also present were Dressel 20 oil and Gauloise wine amphora sherds, the neck of an FLA2 flagon and an FLB1 flagon body and sherds of GRB1 and 2.

Fill 1232

58. TN EGGS bodysherd with rouletted decoration outside the middle body, a groove and burnished all over. The form is not readily paralleled. 2g.
59. FLA2 honeypot type vessel with small ribbed handle.

Ditch 1221

Ditch 1221 contained a large group of pottery. Fill 1223 contained many large sherds from several freshly deposited vessels dating to the mid-second century/early Antonine period including samian dated AD135-60. Several BB1 necked jars with acute lattice burnish were present, some burnt and with burnt on accretions (60-62). This type was used mainly in the early-mid second century. An uncommon handled BB1 beaker was present (63) and a grooved-rim dish with acute lattice (64, Gillam 1976 no 73 dated early third century but decoration like no 68 dated early to mid-second century). Sherds from a CC1 everted rim roughcast ware beaker (65) and a GRB3 everted rim roughcast ware beaker (66) were found and in both cases the slip still covers the rough cast as if they had not been extensively used. An OAA2 incomplete wedge-shaped rim of wide-mouthed jar (Webster 1976 no. 23-3 mid-second to third century) and the rim of an OAA1/SV1 narrow-necked jar with wedge-shaped rim are both of Severn Valley type (67 and 73). A near complete GRB1 campanulate bowl (68) also came from this layer. All of the neck and rim of an FLB1 ring necked flagon (69) was recovered with the rim of a large FLA7 flagon with rebated rim (70) similar in form to imported Gallic wine amphora and perhaps also used for the serving and storing of wine. A ring-necked flagon in grey ware (72) was also present and may be a local product such as those made at the Middlewich kiln. Sherds from three MOWS mortaria dating to the first half of the second century were present and two of which had maker’s stamps (143 and 144) see Hartley this report).

Fill 1222 contained further sherds from the narrow-necked SV1 jar no. 73 in layer 1223 were present with sherds from BB1 jars of second century date with acute lattice burnish and undiagnostic reduced and oxidised sherds.

The pottery vessels from fills 1205 and 1216 were of similar date. These included a mortarium from Mancetter-Hartshill, near Coventry, stamped by the potter Icotasgus cAD120-50 (139, see Hartley). A large section from a so-called Rhaetian mortarium (75, type Bb) was present dating to the first half of the second century probably made at Wilderspool. These mortaria, made in some quantity at Wilderspool as well as at Holt and Walton-le-Dale, are of a type made in the Roman province of Rhaetia and suggest potters trained in those workshops migrated to the North West during this period to serve the army. A third mortarium (76), of local origin, in a white-slipped oxidised fabric, was represented by a flange sherd with a groove at the end of the flange in a similar way to some of the Rhaetian mortaria. This can be dated to the second century. The local mortaria are in an orange sandy ware, a fairly poor quality clay. These were improved by dipping the dried clay vessels in a finer watery clay, called a slip, which would make a finer surface when fired. The Rhaetian mortaria were given a red slip while the MOWS mortaria were given a white slip making them more like the good quality mortaria from Mancetter-Hartshill or the fortress of Wroxeter. This group included a Derbyshire ware sherd, from a jar type made near Belper after cAD140, several BB1 jars, bowls and dishes (nos 81, 83 and 84, mid to late second century) and some later types including the tip of a rim from a BB1 jar apparently with a widely splayed rim (82), a type usually dating to the third century, and a burnt bead and flange BB1 bowl (85), a type not appearing in the north until cAD270 or later. Two Severn Valley ware vessels, a bowl and a narrow-necked jar (nos 77 and 78, Webster 1976 type F50, late second to third century) were identified, a ware which became more common in the mid- to late second century at Manchester. Some earlier types were present. A GRB1 flagon waster (86) is probably from the late first to early second century kiln on the Fairclough site and a necked jar with everted-rim tip (88) may also have been made there. An exceptionally fine, thin-walled black carinated vessel is a terra nigra eggshell ware beaker (87) probably imported during the first century. Such a vessel may well have been treasured for a considerable length of time. The carinated form is not unusual (see at Holt, Greene 1979, fig. 52).

These types in this large group indicate infilling in the mid-second century and perhaps the late second century with continued, low-level, accumulation in the third century as late as AD270 at least.

Fill 1223

This fill contained many large sherds from several freshly deposited vessels dating to the mid-second century/early Antonine period.

60. BB1 necked jar with acute lattice burnish, Gillam 1976 nos 1- 2, early-mid-second century. One sherd very burnt. Some burnt accretions 156g Re 30%
61. BB1 necked jar with acute lattice burnish, Gillam 1976 nos 1-2, early-mid-second century. 89g 16%
Two more jars of similar form to no. 60 were represented and the base of a BB1 bowl or dish.
62. BB1 neckless bead-rim jar, Gillam 1976 no. 30. early-mid second century. 26g Re 11%
A second vessel in this form was also present.
63. BB1 handled beaker, Gillam 1976 no. 68. 26g.
64. BB1 grooved-rim dish with acute lattice burnish, Gillam 1976 no 73 dated early third century but decoration like no 68, early-mid second century. Re 4%.
65. CC1 everted rim roughcast ware beaker. The slip still covers the rough cast. 18g. Re 8%
66. GRB3 everted rim roughcast ware beaker. The slip still covers the rough cast. 13g. Re 8%
67. OAA2 incomplete wedge-shaped rim of wide-mouthed jar. Webster 1976 no. 23-3 mid-second to third century. 17g.
68. GRB1 campanulate bowl, nearly complete. 384 g. Re 14%
69. FLB1 ring necked flagon. 338g. RE 100%.
70. FLA/Gallic large flagon with rebated rim as Gauloise 4 amphora form. 106g Re 15%
71. GRB3 abraded rim of narrow-necked jar with everted rim. 63g. Re 25%.
72. GRA2 ring-necked flagon. Upright. 15g Re 34%
73. OAA1/SV1 narrow-necked jar with wedge-shaped rim. 37g Re 14%

Layer 1222

Further sherds from vessel no. 71 were present with sherds from BB1 jars of second century date with acute lattice burnish and undiagnostic reduced and oxidised sherds.
74. OAB1 grooved rim hemispherical bowl. Quite an early type, early second century. 15g Re 4%.

Fill 1205 and 1216

75. MRS1 Rhaetian mortarium. 184 Re30%. 1216
76. MOWS8 incomplete rim sherd from flanged mortarium with grooved distal end. 7g. 1216.
77. OAA1/SV1 narrow-necked jar with wedge shaped rim. 17g. Re 8% 1216
78. OAA1 incomplete rim and body of bowl, Webster 19 F50. 14g.
79. OAB1 hemispherical bowl rouletted body. 23g Re 2%
80. GRB3 necked jar with everted rim tip. 113g Re 55%. 1216
81. BB1 necked jar with wavy neck burnish, Gillam 1976 nos 1- 2 early to mid-second century. 69g Re 25% 1216
82. BB1 rim tip of splayed rim jar, late. 9g. Re 5%. 1216
83. BB1 plain rim dish, acute lattice burnish. Gillam 1976 no. 76 mid-late second century. 50g Re 15%.
84. BB1 flat-rim bowl, Gillam 1976 no. 61 late second century. 52g. Re 13%.
85. BB1 bead and flange bowl. 270 or later. 40g Re 7%
86. GRB1 waster neck and base sherds from flagon.
1205
87. TN EGGS sherds from carinated beaker. 6g.

Mid- to late second century pottery and a BB1 bead and flanged bowl of late third-fourth century date.

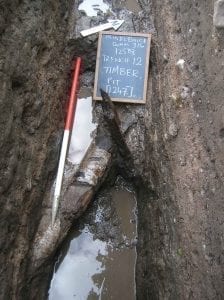

Pit 1247

The pottery vessels from pit 1247 gave an early to mid-second century for much of its infilling. The brown peat fill 1278 contained a GRB1 footring, misfired pinkish grey on the inside, perhaps from the Middlewich early kiln. An incomplete rim and bodysherd from a bowl, possibly with a reeded rim, was in a mica dusted fabric MG10 and dates to the early second century. A rim sherd from a GRB2 necked jar with everted rim (88) with a base, probably from the same vessel, is of similar date and this layer may have begun to accumulate in Phase 5. From fill 1288 a GRA1 carinated bowl with bifid rim (89) with double groove in middle of upper body and traces of oblique burnish lines on lower half of upper body dates to the late first-early second century and was found with a sherd from a GRA1 short everted rim jar 90, the form most common is this period. In fill 1289 part of the rim of an FLA 7 (91) late first to early second century, ring-necked flagon was found but a BB1 sherd means that this fill must have occurred after cAD120. More BB1 sherds were present in fill 1255 and in fill 1246 a campanulate bowl similar to those from pit 403 was found in fabric GMG (92), a mica dusted grey ware known from the unpublished Severn St kiln at Manchester dated to the late first to early-second century. The mica-dusting finish would give the vessel a metallic look originally. Another neckless BB1 jar (93, Gillam 1976 no. 30 early-mid second century) came from this layer which was badly scorched. In fill 1245 a large section from the rim and spout of a MOWS mortarium (94) was found. This was made at a kiln on the Cheshire Plain but perhaps not Wilderspool. The trituration grits (the little sharp stones set in the clay around the inside of the vessel before firing to aid mashing or grating) are worn suggesting this was a well used vessel. Another rim and neck fragment from an FLB1 ring-necked flagon came from the upper fill 1210. As the upper neck and rims of these vessels were made separately and then luted onto the bodies and lower necks, these fragments often break at this point. On this example the join can be clearly seen. An incomplete rim of flanged mortarium (101) from Mancetter-Hartshill dates to AD140-70. Several BB1 vessels were present (95-98): a BB1 necked jar with everted rim, Gillam 1976 no. 3 mid to late second century, a BB1 grooved rim bowl/dish and a BB1 flat-rim bowl/dish with acute lattice burnish, but an incomplete rim sherd of a flat rim bowl or dish with a grooved rim is of later date, belonging to the late second to early third century. Several samian sherds were given a date range AD160-200. In addition to this a shell-tempered ware CTA2 jar (100) with rim bent over to form bead is of at least third century date typologically and may be much later. Another traded vessel is represented by a sherd of Derbyshire ware. This came from kilns near Belper in Derbyshire which specialised in making a very hard gritty fabric, described famously by the late John Gillam, a very well know expert in Roman pottery, as being like petrified gooseflesh. Two main kinds of jars were made here, a lid-seated form and a rolled-rim form (potsherd link), and they are rare finds in this region but were distributed here in small numbers, perhaps for their contents. The forms and fabrics suggest a date in the mid- to late second extending into the early third century for the final fill.

Brown peat fill 1278

88. GRB2 necked jar with everted rim. 19g RE 16%. A base may belong to the same vessel.

A misfired footring base from this fill was misfired pinkish grey on the inside. An incomplete rim and bodysherd from a bowl, possibly with a reeded rim, was in a mica dusted fabric MG10. Early second century.
Fill 1288
89. GRA1 carinated bowl with bifid rim, double groove in middle of upper body with traces of oblique burnish lines on lower half of upper body. Late first-early second century. 84g. Re 8%.
90. GRA1 short everted rim jar. 61g Re 56%.
Bodysherds of GRA1, GRB1 and GRC1 also present.

Fill 1289

91. FLA 7 ring-necked flagon. 6g Re 10%.

This fill contained misfired sherds of a GRA2 everted rim jar as no.45 and some very flaked GRA4 sherds which may be waster material. A BB1 sherd was present in this group.

Fill 1255

Another neckless everted rim jar was present with sherds of BB1, FLA1, FLA7, FLB1 and GRB1.

Fill 1246
92. GMG1 campanulate bowl. 18g Re 13%.
93. BB1 neckless jar, Gillam 1976 no. 30 early-mid second century, burnt. 22g Re 6%.

Also present was a reeded FLB1 handle from a large flagon, sherds of FLA2 and 7, GRA1, GRB1 OAb1, OBB1 and SV2.

Fill 1245

94. MOWS1? flanged mortarium. AD100-mid second century. 317. Re 28%.

The rim of a bead rim OAB1 bowl of indeterminate form was also present.

Fill 1244

This fill contained a BB1 neckless jar as no. 93 and a necked jar with wavy line neck burnish dating to the first half of the second century. Other sherds include bodysherds of FLA2, FLA7, FLB1, GRA1, GRA4, GRB1, OAA1, OAB1 and OAB6.

Fill 1210 upper fill

95. BB1 incomplete rim of grooved flat rim bowl, Gillam 1976, late second to mid third century. 9g. Re 3%.
96. BB1 necked jar with everted rim, Gillam 1976 no. 3 mid to late second century. 44g Re 38%.
97. BB1 grooved rim bowl/dish. 12g Re 5%
98. BB1 flat-rim bowl/dish with acute lattice burnish. 36g Re 7%
99. FLB1 ring-necked flagon. 207. RE 44%.
100. CTA2 jar with rim bent over to form bead. 29g. Re12%.
101. MH1 incomplete rim of flanged mortarium, AD140-70. 176g Re 10%.
The forms and fabrics which included Derbyshire ware suggest a date in early Antonine period extending into the late second to early third century. The CTA2 rim may be much later. Although this type was being made in the third century in Northamptonshire, it is typical of the fourth century (Brown 1994, fig. 9 nos 174-8) and these later shell-tempered wares tend to date to the late fourth century in Wales (Webster 1993a, 294-5).

Ditch 1224

Fill 1215 contained very abraded undiagnostic, Roman sherds with one medieval sherd. An OAB1 sherd from a narrow-necked jar with a zone of lattice burnish is likely to be of late first to second century date. The samian gave a date in the Antonine period cAD140-200.

The clay floor 1266 contained a plain-rim BB1 dish with acute lattice burnish dating to the early to mid-second century (Gillam 1976 no. 75). This fragmented layer also contained a samian sherd of much later date, AD 170-260, but this may have derived from late activity in the vicinity.

Samian from layer 1282, beneath the crushed briquetage surface 1264, dated AD 130-60 and BB1 vessels of the mid- to late second century suggests this layer belongs to this phase. The BB1 cookware included a dish with flat rim and lattice burnish (102, mid-second century), a jar (103, mid to late second century and a neckless everted-rim beaker (104, mid to late second century). These were all traded wares from Dorset. A GRB5 narrow-necked jar with rebated rim and zone of vertical burnished lines on shoulder (105) may be a local kiln product and an oxidised (OAB1) wide-mouthed jar with everted rim (105) is likely to be from kilns operating on the Cheshire Plain, perhaps at Wilderspool, in the mid to late second century. This group indicates a date of deposition in or after the mid-second century and not later than the end of the second century.

1282 layer under 1264

102. BB1 dish with flat rim and lattice burnish. Gillam 1976 no. 61, mid-second century. 35g Re 10%.
103. BB1 necked jar rim. Gillam 1976 no. 3 mid to late second century. 21g Re 5%
104. BB1 neckless everted-rim jar/beaker. Gillam 1976 nos 16 or 20 mid to late second century. 11g Re 14%
105. OAB1 everted rim of wide-mouthed jar (Leary 2007 fig. 3.62 no. 166 from group dated to the Antonine period after AD160). 25g Re 8%.
106. GRB5 narrow-necked jar with rebated rim and zone of vertical burnished lines on shoulder. 39g. Re 15%

Clay and stone layer 1228

The clay layer 1228 below the trackway is of similar date. The pottery from this layer included sherds from an oxidised shell-tempered jar (107) with cordoned neck and everted rim. This is likely to be a Harrold jar but the cordoned neck and a bodysherd with a double groove suggest that this is not a late shell-tempered jar but belongs to the earlier range of shell-tempered wares (Brown 1994, fig.24 no. 29 late first century, and fig. 26 no. 85 second half of the second century). This ware was also present at the Fairclough site in a group of late first to early second century pottery (Leary forthcoming). A late first to early second century channel-rim jar in this fabric was recorded at Walton-le-Dale also (Evans in prep). Another mortarium (108) from the St Albans potteries was present and dated to AD80-120 but sherds of BB1 from this level indicate a date after AD120 but within the early second century.

107. CTA2OX jar with cordoned neck and everted rim. This is likely to be a Harrold jar from kilns in Bedfordshire but the cordoned neck and a bodysherd with a double groove suggest that this is not a late shell-tempered jar but belongs to the earlier range of shell-tempered wares (Brown 1994, fig.24 no. 29 late first century, and fig. 26 no. 85 second half of the second century). This ware was also present at the Fairclough site in a group of late first to early second century pottery. A late first to early second century channel-rim jar in this fabric was recorded at Walton-le-Dale also (Evans in prep). 72g Re 17%.
108. MVER mortarium. Gillam 1970 no. 240, late first to early second century. 262g. Re 9%
Sherds of BB1, OBA2, GRB1 and GRB2 were also present suggesting a date after AD120 but within the early second century.

1206 trackway

Pottery from the trackway metalling 1206 included a relatively large assemblage comprising Dressel 20 oil amphora bodysherds and Gallic wine amphora sherds, a range of second century vessels such as BB1 flat-rim bowl and lid (as nos 49 and 31), a GRB1 campanulate bowl (as nos 34-36), a CC4 roughcast beaker (as no.43), sherds from FLA2 and FLB1 flagons and an FLB1 honeypot, a necked, GRB1 everted-rim jar (as no. 26) and sherds from an OAA1/SV1 narrow-necked jar (as no.73), the lower body of a MG2 carinated bowl and an OAB1 hemi-spherical bowl (as no.4). Four mortaria were represented by bodysherds and a flange: a Mancetter-Hartshill vessel dated to the first half of the second century, sherds from MOAB and MOWS vessels of second century date and sherds from an MVER vessel of the late first to early second century. The sherds were abraded and medium to small in size. Sherds from a CTA2 everted rim jar with double shoulder groove (109) was present here and also in layer 1220. This jar form with simple outcurved rim came from Bedfordshire, probably the Harrold kilns and was the commonest form in Phase 4, later third century. (Harrold 1994 fig. 29). This appears to be a group dating from the Hadrianic-early Antonine period with some additions in the third or fourth century. There were a very small number of late first-early second century types such as the St Albans mortarium and these may be residual.

Additional pottery from the cleaning of trackway 1206 was of similar date range with a sherd belonging to the shell-tempered jar from 1228 jar no. 107, sherds from two early-mid second century BB1 jar (as nos 18 and 62), a GRB1 everted-rim jar (as no. 17) and a lid, bodysherds from FLA2, FLA7 and FLB1 flagons and one post-Mediaeval sherd. The sherds in this group were again small and abraded and represent accumulation of small scraps of ceramic debris during the life of the trackway and after.

109. CTA2 everted rim jar with double shoulder groove. Harrold 1994 fig. 29, this jar form with simple outcurved rim was the commonest form in Phase 4, later third century. 27g Re 35%. Also present in layer 1220.

1292 pit

Pit 1292, cut through 1264, contained pottery dating to the mid-second century in its fill, including a samian sherd dated from AD140 in fill 1281. A BB1 jar of mid-late second century type came from fill 1286 (112) as well as a rather unusual OAB4 everted rim jar with a cordoned neck and traces of a handle (111) and a small rim sherd from an everted-rim narrow-necked vessel (110). A BB1 jar (114), beaker/small jar (113) and a plain-rim dish (115, mid-second to early third century) from fill 1281 all point to a mid-second century date. The plain-rim dish had been burnt and this has resulted is such surface deterioration that it is difficult to determine the decoration. A single linear suggests it was originally lattice burnish pointing to a date in the mid-second century. A large sherd from a very large OAB1 bowl (117) was present in this layer. This compares with lug handled bowls made at York in the second century (Monaghan 1997 type BL). This type is also made at Holt where a reeded rim variety is illustrated (Grimes 1930 fig. 73 no. 212) and this example is more likely to come from those kilns. Swan in her consideration of the York vessels, points to parallels made in upper Germany (2002, 49-52 and fig. 9 nos 103 and 104). A large rim and body sherd from a Mancetter-Hartshill flanged mortarium (119) dates to CAD140-80 but a much earlier vessel, an imported North Gaulish mortarium (118) of AD70-100 was also identified. This latter vessel was extremely battered and abraded and was redeposited from an earlier phase. The pottery indicated a date in the mid- to late second century. Several of sherds from the jars were large and other types present included the neck of a Gallic wine amphora, the base of a second century MOWS mortarium, much of an OAB1 jar and an OAA1 open vessel, three fairly large Dressel 20 oil amphora sherds and part of the base of a CC4 roughcast beaker.

1286 fill

110. GRC6 everted rim from narrow-mouthed jar. 15g. Re13%
111. OAB4 handled jar with everted rim and cordoned neck. The handle scar of the rim makes it difficult to be sure of the rim form. 215g. Re 11%
112. BB1 jar with acute lattice burnish. Gillam 1976 no. 3 mid to late second century. 84g Re 6%.

These types suggest a date in the mid-second century.

Fill 1281

113. BB1 neckless jar, Gillam 1976 nos 16 or 20 mid to late second century.20g Re 15%
114. BB1 jar rim, Gillam 1976 no. 3. 19g Re 7%
115. BB1 plain rim dish, Gillam 1976 no 75-9, mid-second –early third century. Burnt. The burning has resulted in surface deterioration but a single linear suggest this originally had lattice burnish as Gillam 1976 nos 75-6 second century. 22g Re 7%
116. GRA2 neckless everted-rim jar, Flavian-Trajanic. 35g Re 21%
117. OAB1 very large dish with flat rim. Unparalleled. 378g Re 18%.
118. M GAL mortarium, Gillam 1976 no. 328 AD 70-100. 115g Re 14%
119. MH2 flanged mortarium. AD 140-80. 332g Re 25%.

The pottery indicated a date in the mid- to late second century. Several of the jars were large and included the neck of a large FLA7 flagon, the base of an MOWS mortarium, much of an OAB1 jar and an OAA1 open vessel, three fairly large Dressel 20 amphora sherds and part of the base of a CC4 roughcast beaker.

The unsealed buried soil layers

Phase 5

The pottery from layer 1231 was somewhat later than that from 1263 and included three BB1 vessels dating to the mid-second century ( a BB1 necked jar, Gillam 1976 no. 3 mid to late second century, BB1 grooved-rim dish, Gillam 1976 no. 69 mid-second century and a BB1 flat-rim bowl with acute lattice burnish, Gillam 1976 nos 37 or 40). Layer 1219 also contained some early second century pottery including a mortarium from St Albans similar to examples from layer 1220 (no.127 and 128). However a multi-reeded mortarium from the large potteries at Mancetter –Hartshill near Coventry is a type not found until the third century, cAD200-260.

Phase 7 buried soils

The pottery from the buried soil layers in Trench 12 (1237 and 1263) was of late first to early second century date. A large amount of a narrow necked jar with everted rim with zone of oblique lines defined by horizontal grooves on upper body in layer 1237 is a type made in the Severn Valley potteries in the mid-first to second century (120, Webster 1976). Another sherd from this layer is even earlier – a GRA2 jar bodysherd with zone of linear rustication between horizontal grooves, and between two plain zones with no rustication. This probably comes from a rusticated girth beaker (121) dating to mid-first century before cAD70. Seven large Dressel 20 oil amphora sherds were also present. Dressel 20 amphorae were imported into Roman Britain from the earliest days of the Conquest until the third century.

Layers 1203, 1220, 1271 and 1284 also contained pottery of this date but later sherds demonstrate that these deposits continued to receive ceramic debris in Phases 7 and 8. The group from 1220 included a fine example of a white ware (FLA2) ring-necked flagon, a type common in the late first to mid-second century (121). The splaying of the neck suggests a dated later in this sequence, perhaps in the early second century since the necks became more splayed as time went on. Two bowls, one with a flat rim and the other with a reeded rim (123 and 124) are of a type most common in the late first to early second century and a GRA2 neckless jar with short, sharply everted-rim (125) is also the jar form of preference during that period. Four examples of this jar form were present and these typically had a single or double groove around the shoulder. A GRB8 hemispherical bowl (126) was present in a form copying the samian bowl form 37 imported from Gaul. This type dates to the first half of second century. Two early mortaria (127 and 128), a type of mixing bowl used for mashing or pounding foodstuffs, were present. These came from potteries at St Albans and their distribution in Britain was most extensive in the late first to early second century. One example dates to the Flavian period in the late first century and another is most likely to date to c AD90-110 .The latter vessel was burnt around the upper body. Mortaria are often found scorched or burnt and it may be implied that although used for mashing and pounding, as the worn bases and lower bodies indicate, their use may also have involved heating on a fire or in an oven. Much of an OAB1 roughcast beaker was also present in this layer alongwith two GRB2 lids, parts of some other FLA2 and FLB1 flagons. The group is predominantly Flavian-Trajanic apart from samian sherd dated AD 120-40, one BB1 jar sherd and the CTA2 jar rim. The CTA2 jar is more likely to belong to the late shelly group than the early one typologically and was found in contexts 1220 and 1206. The sherds were small and abraded. If they are not intrusive the form is one most common in the third century. This would mean all the other pottery is residual although the material from layer 1220 included large and relatively unabraded sherds (nos 123, 124, 126 and 127). It is perhaps more likely that this sherd is intrusive.

Layer 1271 had a smaller but similar group. Most of the group was late first to early second century but Hadrianic-early Antonine types were also present a ring necked flagon with pronounced upper ring, a GRB1 campanulate bowl and a BB1 lid (as nos 31 and 122). The pottery suggested accumulation in the late first or early second century with some additions in the Hadrianic/early Antonine period. Similarly the very small group from layer 1284 included bodysherds from a ring and dot beaker, an OAA1 everted-rim jar and a Gauloise 4 amphora, all dating to the late first to early second century, and a samian sherd dated AD 120-60.

1203

Small group including bodysherds of CTA1, FLA1, FLb3, GRA1, GRA2, GRB1, GRB2 and OAB1. No BB1 was present and a Trajanic date is possible. Forms comprised a GRA2 lid and a bead rim bowl of unknown body form.

1237 buried soil layer north of track

120. SV2 narrow necked jar with everted rim with zone of oblique lines defined by horizontal grooves on upper body. Webster 1976 no. mid first to second lasting into third century. Base body and rims sherds of this vessel were all present. 653g. Re 22%

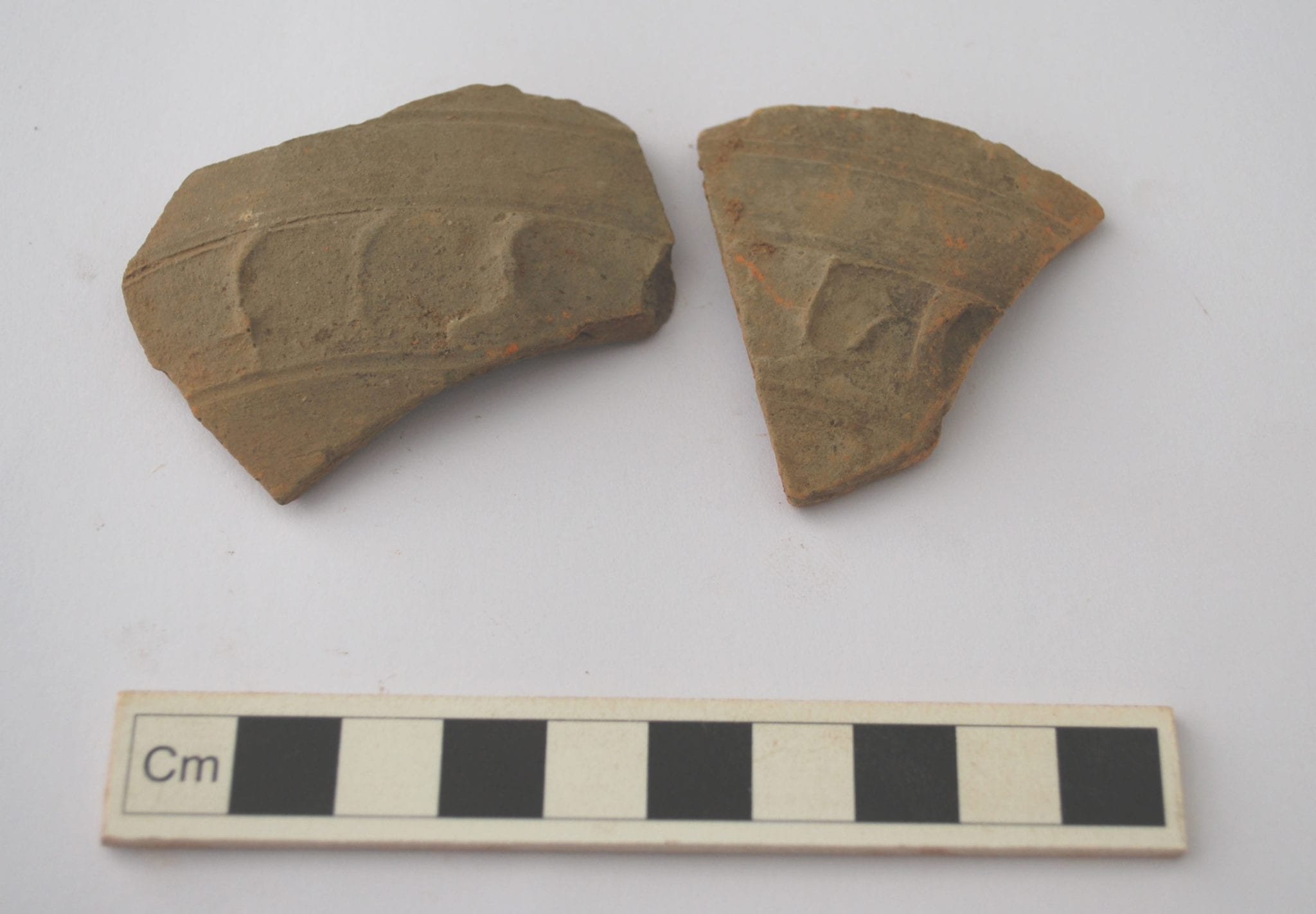

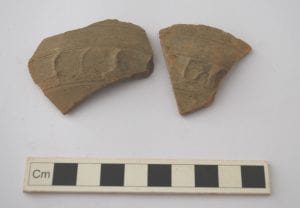

121. GRA2 jar bodysherd with zone of linear rustication between horizontal grooves, and between two plain zones with no rustication. Probably from a rusticated girth beaker of pre-Flavian or early Flavian type 54g.

Seven large Dressel 20 sherds were also present. The SV2 form and rusticated jar suggest a date in the late first to early second century.

Buried soil 1220, sealed by 1206

122. FLA2 flagon with pronounced rim, probably a splayed ring-necked flagon. 9g Re 30%
123. GRB1 flat-rim bowl. 108g Re 30%
124. GRA2 reeded-rim bowl with double groove outside upper body and coming in to rounded carination. 63g Re 29%
125. GRA2 neckless everted rim jar with shoulder groove. Three further jars of this type were present. 14g Re 10%
126. GRB8 hemispherical bowl as samian form 37. The upper zone is deeper than no. 4 but otherwise identical. Probably first half of second century. 22g. Re 6%.
127. MVER much of flanged mortarium. Late first – early second century. 6516g 25%.

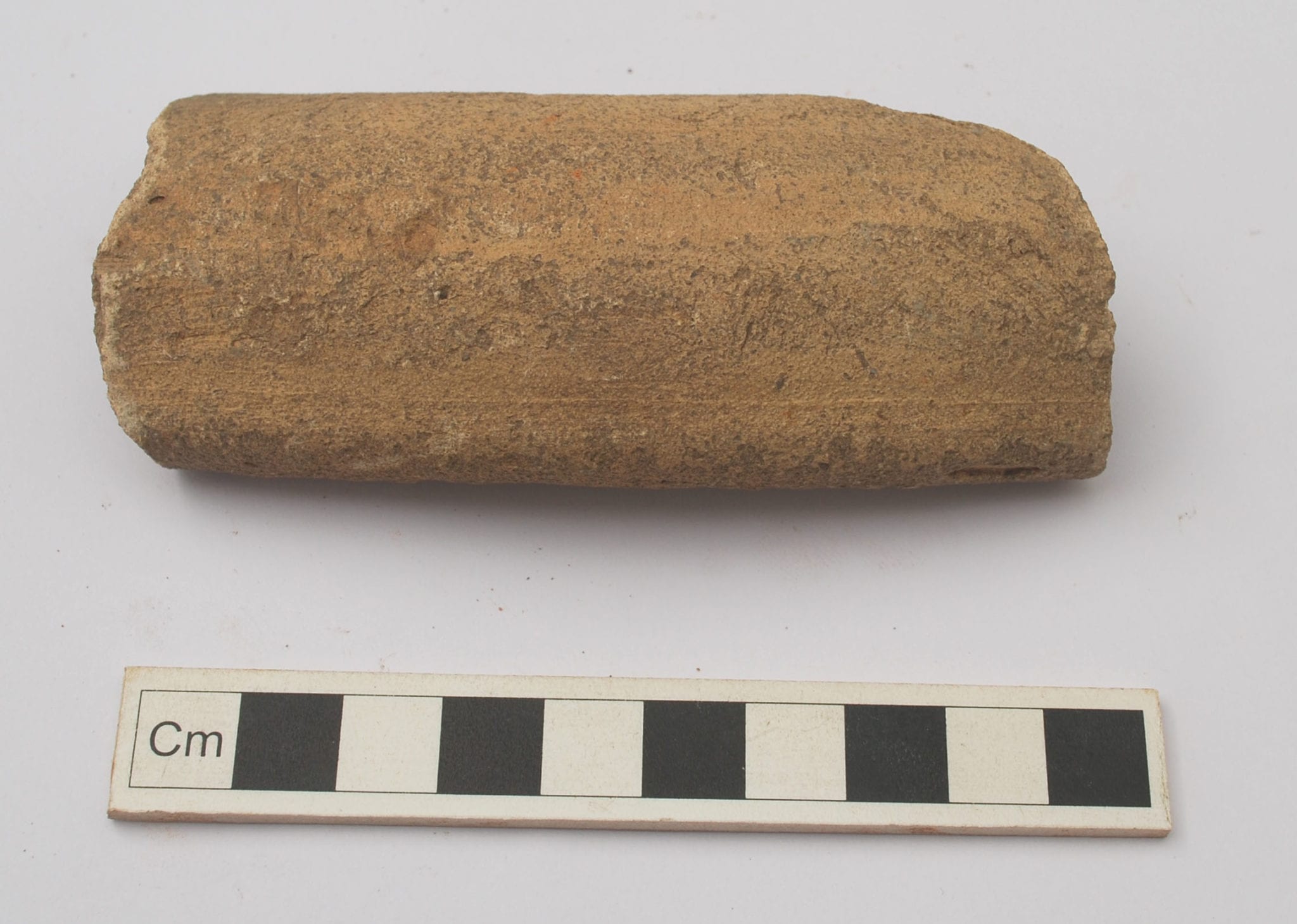

128. MVER flange from second mortarium. Late first to early second century 117g Re 8%

Much of an OAB1 roughcast beaker was present with a rim from no.109, two GRB2 lids, parts of FLA2 and FLB1 flagons, a G5 large jar, a barbotine dot beaker bodysherd and one BB1 bodysherd with acute lattice burnish dating to AD 120-200. The group is predominantly Flavian-Trajanic apart from one BB1 jar sherd and the CTA2 jar rim. The CTA2 jar is more likely to belong to the late shelly group than the early one typologically and was found in contexts 1220 and 1206. The sherds were small and abraded. If they are not intrusive the form is one most common in the third century. This would mean all the other pottery is residual although the material from layer 1220 included large and relatively unabraded sherds (nos 123, 124, 126 and 127). It is perhaps more likely that this sherd is intrusive.

Phase 8

1214 also contained later post-Mediaeval pottery sherds. Other sherds comprised FLA and FLB1 bodysherds.

Phase 9

Layer 1217

A large group of some 678 sherds of pottery was recovered from this layer. Medieval pottery was present and the Roman pottery included late first to early second century types, early-mid second century BB1 and a splayed BB1 rim probably third century in date, a BB2 jar dated AD 140-220 (129), Hadrianic-Antonine flagon types and mid- to late second century wide-mouthed jars copying Severn Valley types. The samian included sherds dating from AD 70-90 to the latest piece dated AD160-200. The sherds include several groups of sherds from the same vessel which give near complete or complete profiles such as that of the BB2 jar. The other vessels with significant sections of the pot present were BB1 flat-rim bowls and dishes, plain-rim bowls and dishes with acute lattice burnish, of early-mid-second century date. Large Dressel 20 oil amphora sherds were also present. This appears to be a rubbish deposit of some kind, perhaps deposited in the mid- to late second century, when the character of the activity in this area of the settlement changed, with some low level accumulation thereafter.

Phase 12

1218 cleaning layer

This deposit included a rather abraded collection of pottery with types of the early-mid second century such as BB1 jars with acute lattice burnish and flat-rim bowls/dishes, roughcast beakers, GRB1 everted-rim jars but also later forms such as a BB1 splayed rim, of third or fourth century date, a third century bifid-rim jar (as no. 12) and two NV1 sherds, one from an indented beaker dating to the late second- third century or later. Four possible Mediaeval/post-Mediaeval sherds were identified. A very small sherd from cleaning layer 1212 came from a black-slipped beaker from Trier, Germany. These vessels became very popular in the third century and some had mottos painted on them exhorting their users to drink up (http://www.eng-.gov.uk/archrev/rev94_5/eastcem.htm).

Several sherds of intrinsic interest were recovered from cleaning and unstratified layers. Another Rhaetian mortarium came from 1204. This fragment was from the Wilderspool kilns and was a type Cii (Hartley forthcoming) dating to the Hadrianic-Antonine period. A white ware everted rim jar/beaker from 1213 had faint traces of painted arcs in orange/brown paint. This vessel is similar to a group of painted jars found at other early military sites in the Midlands such as Margidunum, Nottinghamshire (Oswald 1952 Pl. V no. 3, Oswald 1948 Pl. XVI no. 6), Rocester Northfields (Leary unpublished a, no. 113), Mancetter-Hartshill (Gould 1963, 31) and Derby (unpublished). Two very interesting sherds came from unstratified levels: a lamp fragment and a carinated beaker with applied decoration. The lamp was from an open handled lamp, quite probably made locally. The carinated beaker had a double bead rim beaker with lattice burnish outside body and an applied motif on this zone. The motif comprises a horizontal ending in a vertical strip of clay with a small knob of clay in the centre of the vertical strip, opposing the horizontal strip. This resembled the end of a hammer such as that accompanying Vulcan, the Smith God on beakers with applied decoration such as this. Its presence on the site may be linked to the evidence for iron working at Middlewich (Strickland 2001, 58 and Williams and Reid forthcoming)

Other vessels

129. BB2 everted-rim jar with acute lattice burnish, Gillam 1970 no. 132, AD140-220. 294g Re 100%. 1217.
130. MRS Rhaetian mortarium. 64g RE 5%. 1204 cleaning layer
131. FLA1 everted rim jar with traces of painted arcs on upper body. 1213 cleaning layer
132. MH1 rim, spout and base of early Mancetter-Hartshill flanged mortarium, AD100-130. Worn base. 1217.
133. MOWS2 Wilderspool flanged mortarium, early second century. Burnt outside flange. 1217.
134. MOWS1, probably Wilderspool flanged mortarium. Optimum date range in early second century. 1218 cleaning layer
135. MOWS1 Rhaetian type mortarium. No slip present. Trench 2 unstratified.

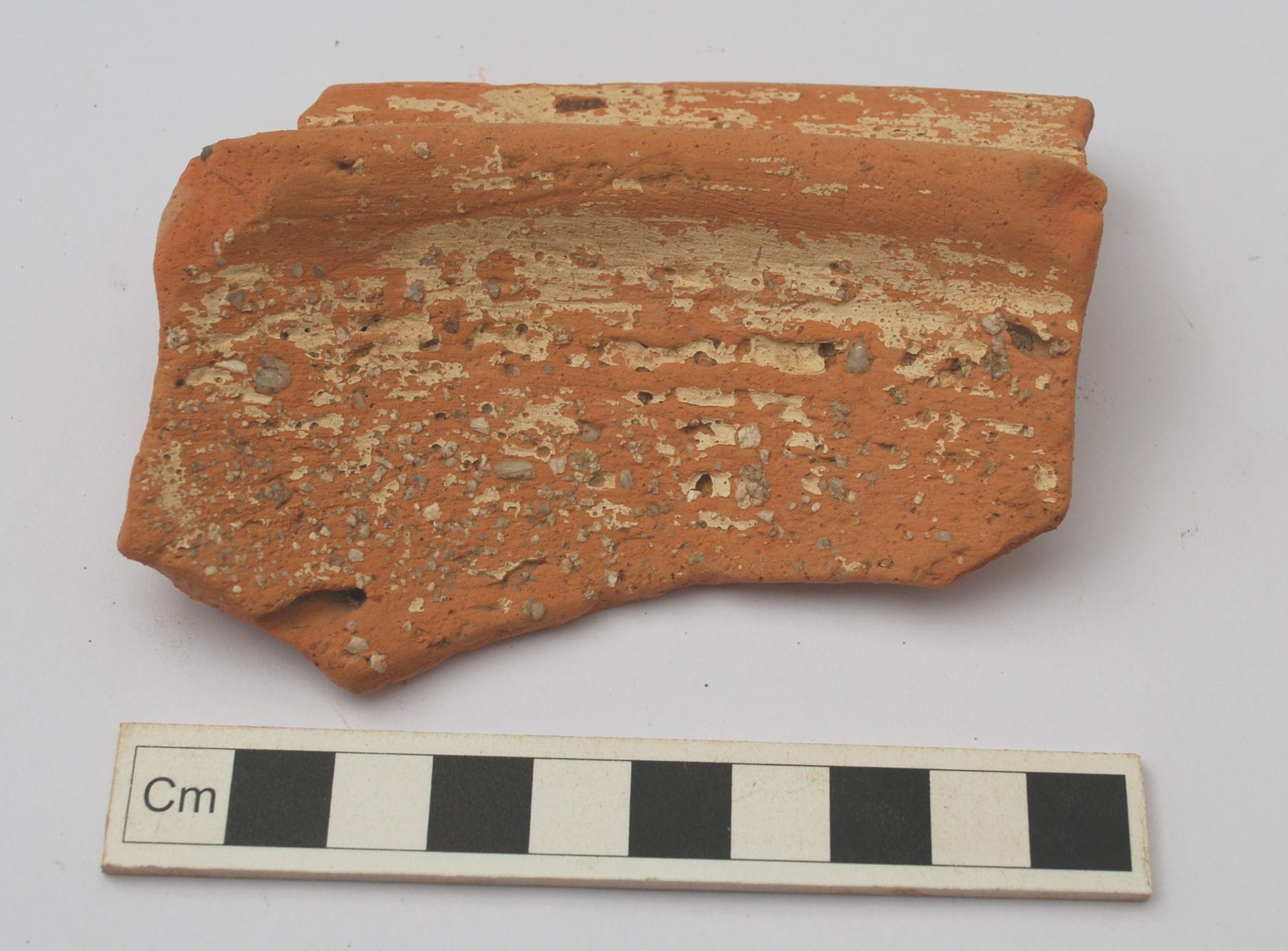

136. MOWS9 incomplete rim and body of flanged mortarium. There is concentric grooving on the body and flange. Thick white slip with all quartz and feldspar trituration grits. The source is unknown but possibly from a kiln on the Cheshire Plain or at Wroxeter. The style is more like imported early mortaria. Flavian-Trajanic. Similar to mortaria from Wroxeter (Bushe-Fox nos 26-30) in form.

Unstratified

137. OAB1 fragment of open handled lamp Trench 4
138. OAA4, but colour orange like OAA1, double bead rim beaker with lattice burnish outside body and an applied motif on this zone. The motif comprises a horizontal ending in a vertical strip of clay with a small knob of clay in the centre of the vertical strip, opposing the horizontal strip. This could well be a hammer such as that accompanying Vulcan, the Smith God on beakers with applied decoration (Webster 1989).

Stamped mortaria

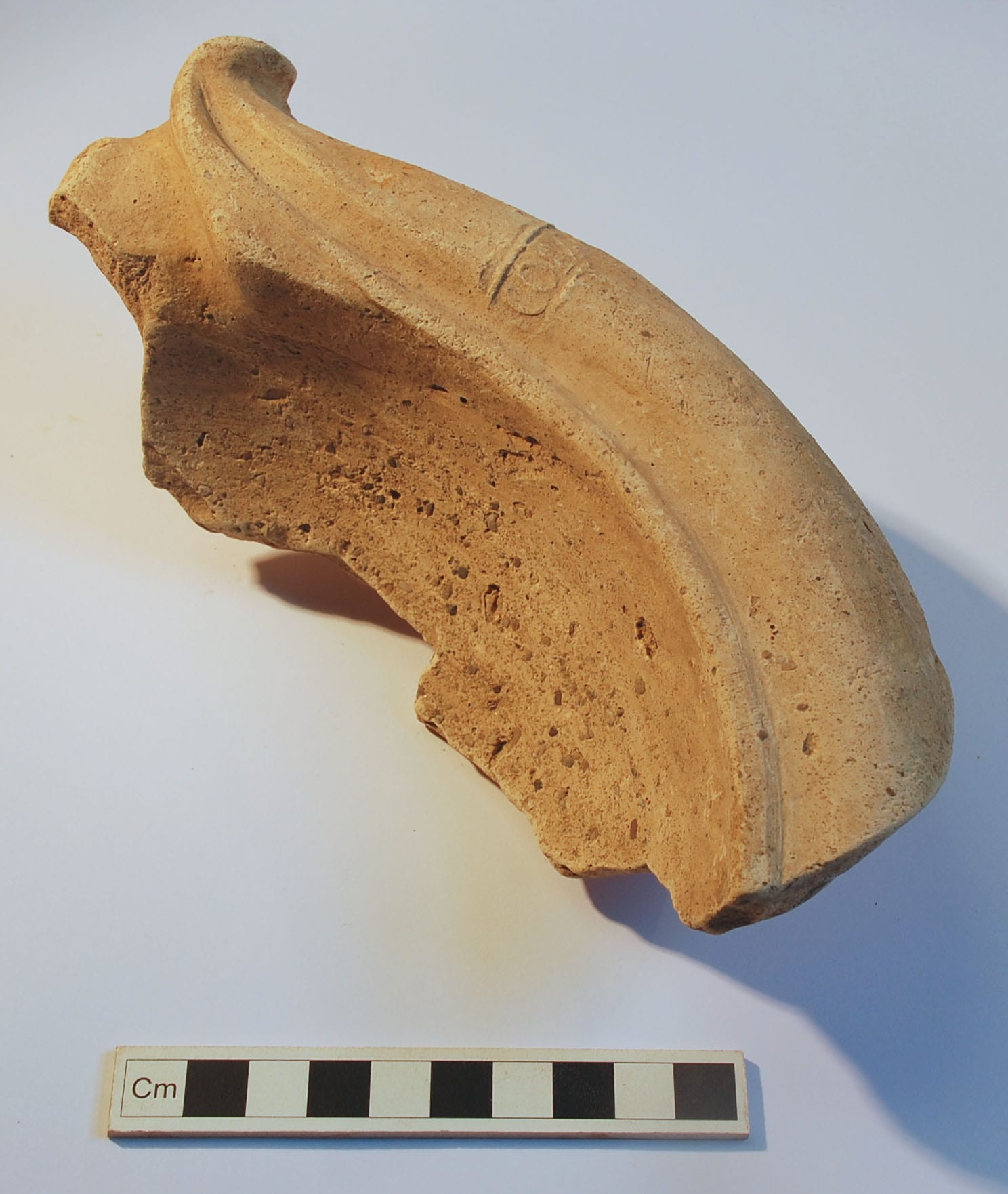

139. MH1 Fabric: fine-textured, cream fabric with thin pink core and perhaps with self-coloured slip; slightly powdery surface. Inclusions: moderate to fairly frequent, tiny to small, mostly transparent quartz with some opaque, orange-brown and a little black material; rare larger quartz and orange-brown sandstone fragments.
Trituration grit: includes well-mixed, medium-small-sized, quartz, orange-brown sandstone and black rock.
Condition: some wear.
The left-facing stamp is almost complete and reads ICOTASGI retrograde; it is from one of at least nine dies used by the potter Icotasgus who worked in the Mancetter-Hartshill potteries within the period AD120-150, his optimum date being perhaps AD130-150. For details of his activity see Ferris, Bevan and Cuttler 2000, 33, no.4. AD 120-150. 413g. re 23%. 1216 Mortarium no. 65

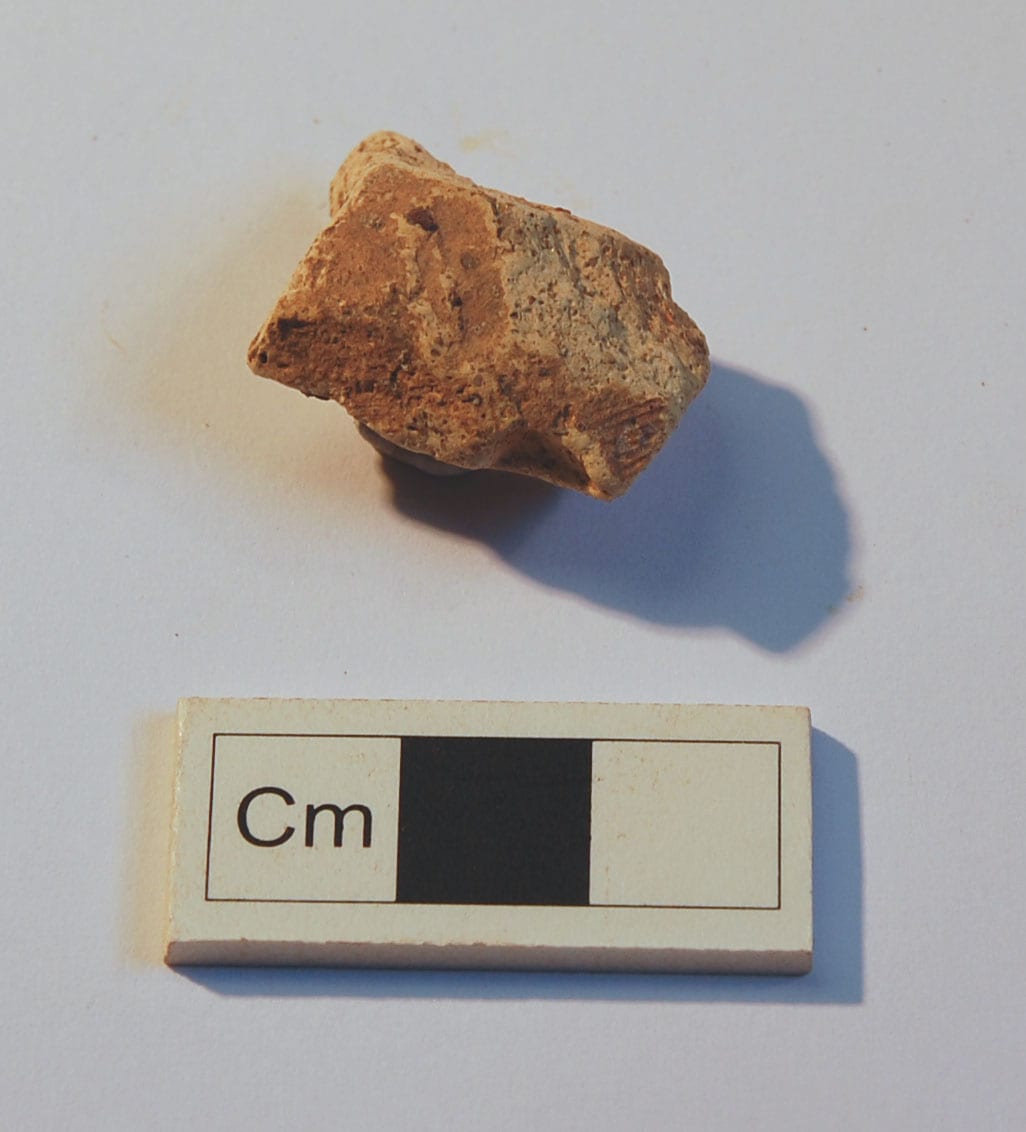

140. MH incomplete rim sherd with small part of unidentifiable stamp. 3.9g. Context 805. Mortarium no. 921.

141. MWROX Fabric: Hard, fine-textured, cream fabric with a slightly pinkish tinge and with a drab cream core.
Inclusions: moderate to fairly frequent, ill-sorted, tiny to small, quartz, black and ochre brown.
Trituration grit: few grits survive, probably mostly quartz.
Condition: some slight singeing.
The broken, left-facing stamp has parts of the letters [..]CI followed by a dot. When complete this stamp reads DOCI, probably an abbreviation for DOCILIS. Distribution of stamps from the same die shows that this potter was working in a pottery which supplied Wroxeter in the first half of the second century; stamps from other dies which can be presumed to be his suggest he was already at work during the late first century. The workshop has not been located, but the distribution suggests that it must be in the vicinity of Wroxeter, despite the lack of known suitable clay there. This sherd is a straightforward product of his West Midland workshop and probably second-century, but he was involved, though probably not personally, in workshops at Fisher St, Carlisle (see Hartley forthcoming, for some discussion of the links), Wilderspool and Walton-le-Dale (in prep).
135g. RE 12%. Layer 1217. Mortarium No. 133.

142. MH1 flanged mortarium
Fabric: Hard, fine-textured, white fabric; self-coloured.
Inclusions: moderate, tiny to small-sized, mostly quartz with rare black material.
Trituration grit: hard, black material with a single quartz fragment.
Condition: burnt and worn.
The incompletely impressed, left-facing stamp reads NANII[…], for the potter Nanieco, two verticals representing the letter E. Mortaria of Nanieco have been recorded from Carlisle; Donington, Lincs; Leicester (2); the kiln-site at Manduessedum, and Wilderspool (2) in England and from Birrens and Newstead in Scotland. While these relatively small numbers do not indicate a potter of great importance, he is of special interest. All but his Wilderspool mortaria are typical products of the Mancetter-Hartshill potteries in Warwickshire, but his mortaria at Wilderspool are in the local fabric and have the local Raetian-type red-brown slip on the flange (Hartley and Webster 1973, fig. 8, G; p. 93 and fig. 10, nos. 86-87). This leaves no doubt that he was active there at one time and the relative paucity of his products might suggest that he probably moved there rather than opening a second workshop. He is the only Mancetter-Hartshill potter linked with Wilderspool in this way and the use of the Raetian-type slip on a mortarium with the stamp of a known potter is highly unusual. His Warwickshire mortaria are typically Antonine in form and fabric. AD135-165
265g 21% Layer 1217. Mortarium no. 145.

143. MOSW8 variant, incomplete rim of flanged mortarium 27g. Herringbone stamp.
Fabric: fine-textured, orange-brown with red-brown core enclosing an inner dark grey core; cream slip.
Inclusions: very moderate, quartz with a little black and red-brown material.
Trituration grit: mostly tiny, some small, mostly quartz with some quartz sandstone, black and red-brown material.
Condition: some cracking underneath the flange. While this is worth noting, it is not in itself sufficient to indicate that the mortarium was a waster.
This fabric is likely to be from a source in the north of England and there is no reason in the fabric or gritting to associate it with Wilderspool. Cheshire Plain or Wilderspool. Only a fraction of the right-facing stamp survives including a small T; whilst it cannot at the moment be identified, both the stamp and the mortarium are sufficiently unusual to hope that it will be identified when other stamps of the same potter are found. More likely to be second-century than earlier. 27g. Phase 8 ditch 1221 fill 1223 Mortarium no. 42.

Mortarium no. 134 from layer 1217 from no. 143 or from a similar mortarium from the same workshop.

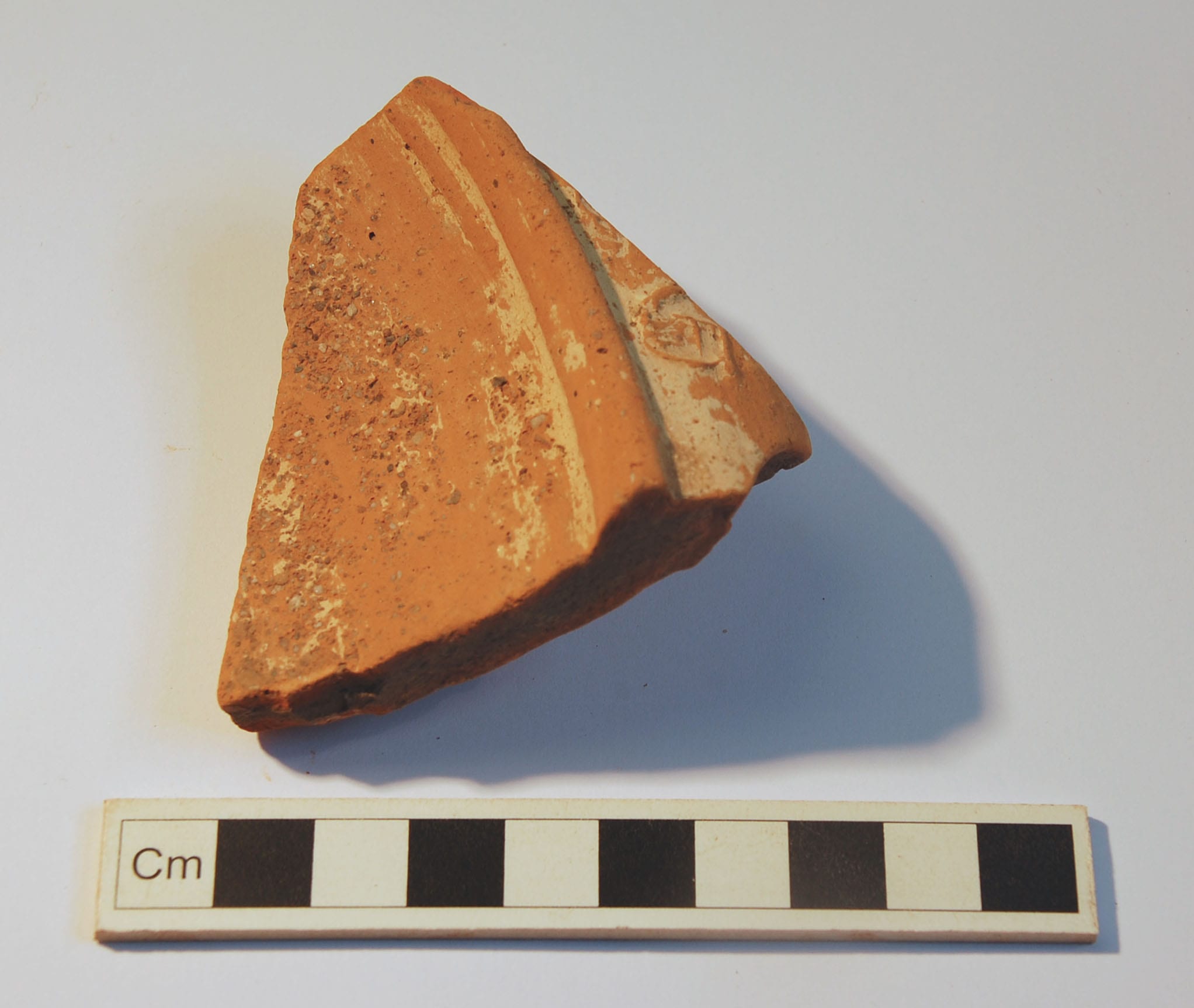

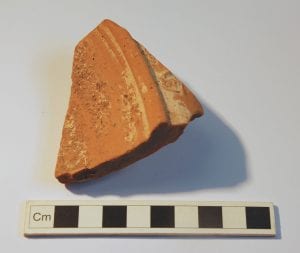

144. MOSW8 Wilderspool incomplete rim of flanged mortarium
The fabric is generally similar to no. 42, but the gritting style is totally different, with small to largish well-mixed quartz, quartz sandstone grit. A small corner of a potter’s stamp survives; this is either a herringbone type stamp or part of a border of diagonal bars. The workshop at Wilderspool is not an impossible source, but there were probably many minor workshops on the Cheshire Plain. It is again more likely to be second century than earlier.
61g. Phase 8 ditch 1221 fill 1223 Mortarium no. 68.

Cat No  DescriptionWeight (g)  RE (%)  Context   Tr  Image 1 Image 2
1FLB1 flagon with upright rim, rebated



40411261
2OAB1 flanged hemi-spherical bowl



87201261cw-002-a
002 c
3OAB1 wedge shaped rim of narrow-necked jar



54111221
4GRB8 bead rim bowl copying samian form 37



1761641cw-004-acw-004-b
5BB1 splayed rim



2481081cw-005-acw-005-b
6BB1 plain rim dish with burnished intersecting arcs outside body and outside base



7371021
7MH2 multi-reeded rim mortarium



104211021cw-007
8MH2 multi-reeded rim mortarium



148151021cw-008-acw-008-b
9MH flanged mortarium



2961021
10OAA2/SV narrow-necked jar with bifid rim



20151021
11OAA2 narrow-necked jar with bifid rim



21121021
12OAA2 narrow-necked jar with bifid rim



6121021
13OAB1 narrow-necked jar with bifid rim



28101021
14GRC4 wide-mouthed everted rim



1021
15BB1 jar (cremation) with splayed rim, shoulder groove and obtuse lattice.  One perforation, 4mm by 2mm through a wall sherd



359142082
16FLB1 tazze.  Scorched and blackened inside body and over rim



35194194cw-016-acw-016-b
17GRA1B neckless, everted-rim jar, slight distortion of rim



48144194cw-017-acw-017-b
18BB1 everted rim jar with wavy line burnish on neck and acute lattice burnish on the body



5254194cw-018-acw-018-b
19MG3 beaker/small jar with short everted rim, double shoulder groove and at least two undulations of the middle and lower body



116444174cw-019-acw-019-b
20GRA1 campanulate bowl with groove above carination



37204124cw-020-acw-020-b
21FLB1 ring-necked flagon



6154124
22GRB1 campanulate bowl



8464104
23OAA1 open vessel, bowl or dish, with grooved rim and groove outside upper body



12104104

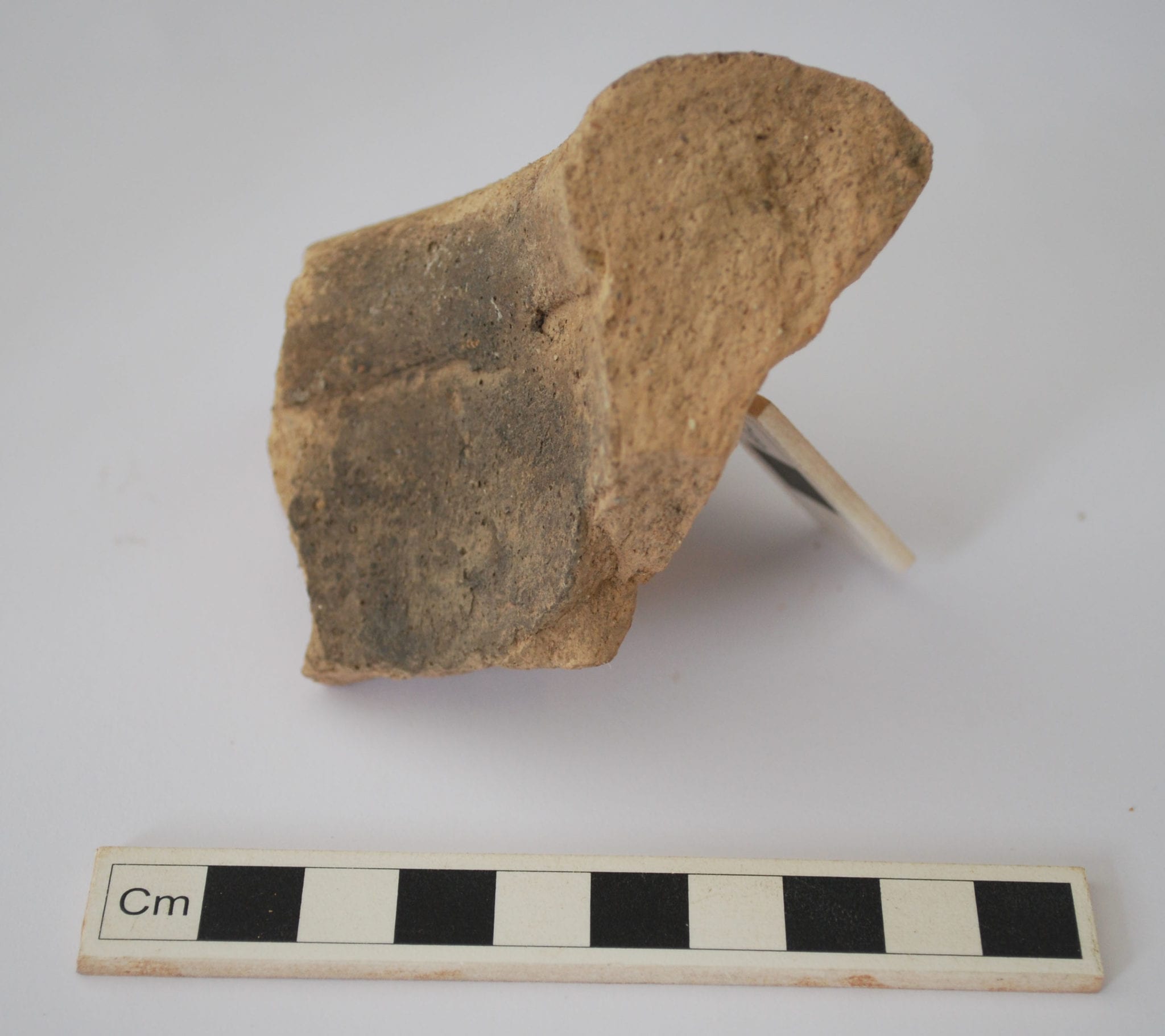

24Dressel 20 rim



144154104cw-024-acw-024-b
25GRB2 everted-rim jar



34214094
26GRB1 rim of necked jar with everted rim



554094
27GRB1 blunt-rim lid



1114114
28GRB1 base and lower body of campanulate bowl



224114
29G4 very abraded everted-rim storage jar



4364064cw-029
30misfired or burnt FLB1 carinated bowl with rouletted upper and lower body, probably a samian form 19 copy



114184cw-030-acw-030-b
31BB1 lid decorated with burnished zigzags



2064184 cw-031
32BB1 necked jar with acute lattice decoration



48104184
33GRA1B flanged rim from bowl with low bead rim and flange level with rim



1354024
34GRB1 campanulate bowl



119264024cw-034-acw-034-b
35GRB1 campanulate bowl



98324024cw-035

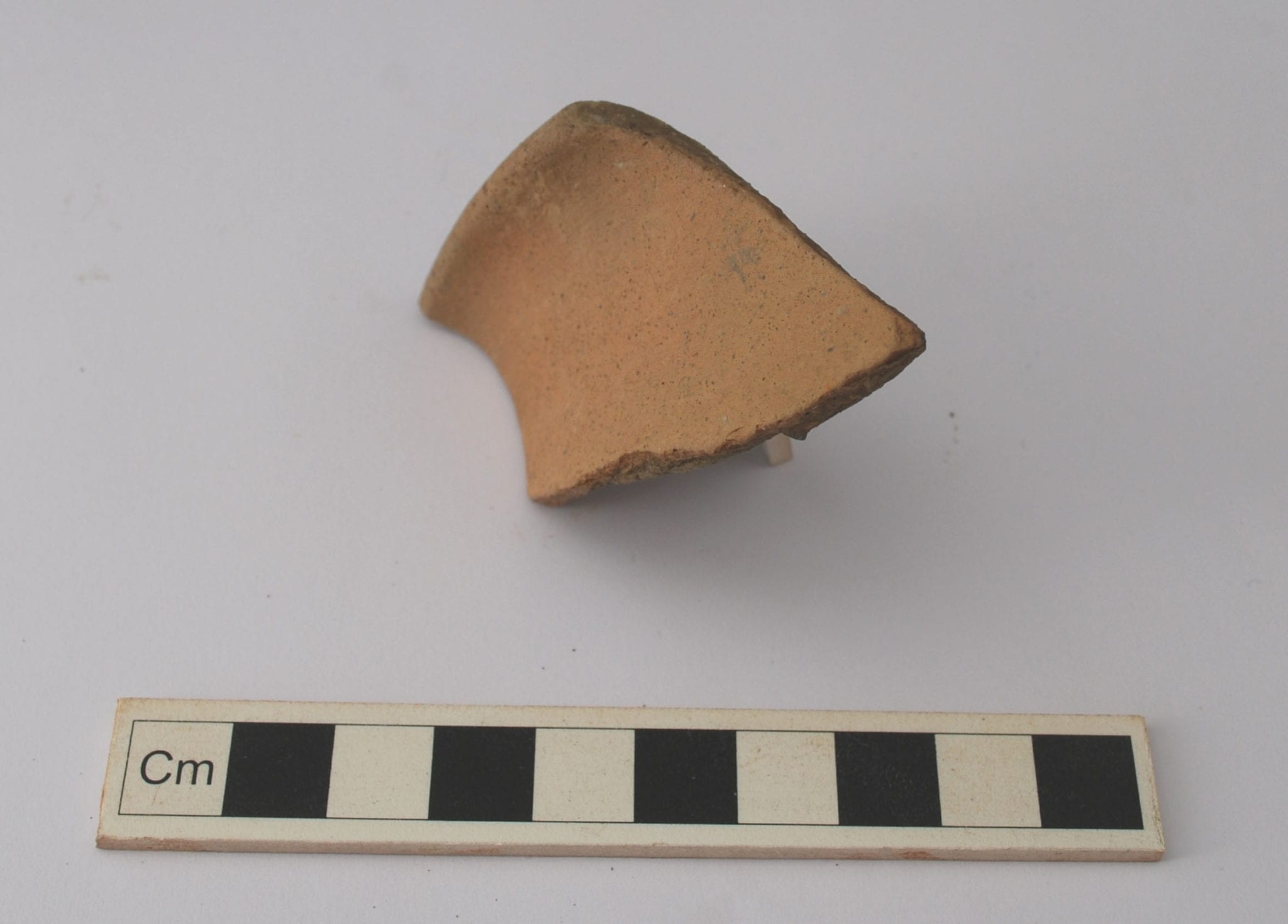

36OBB1 campanulate bowl



7154024cw-036-acw-036-b

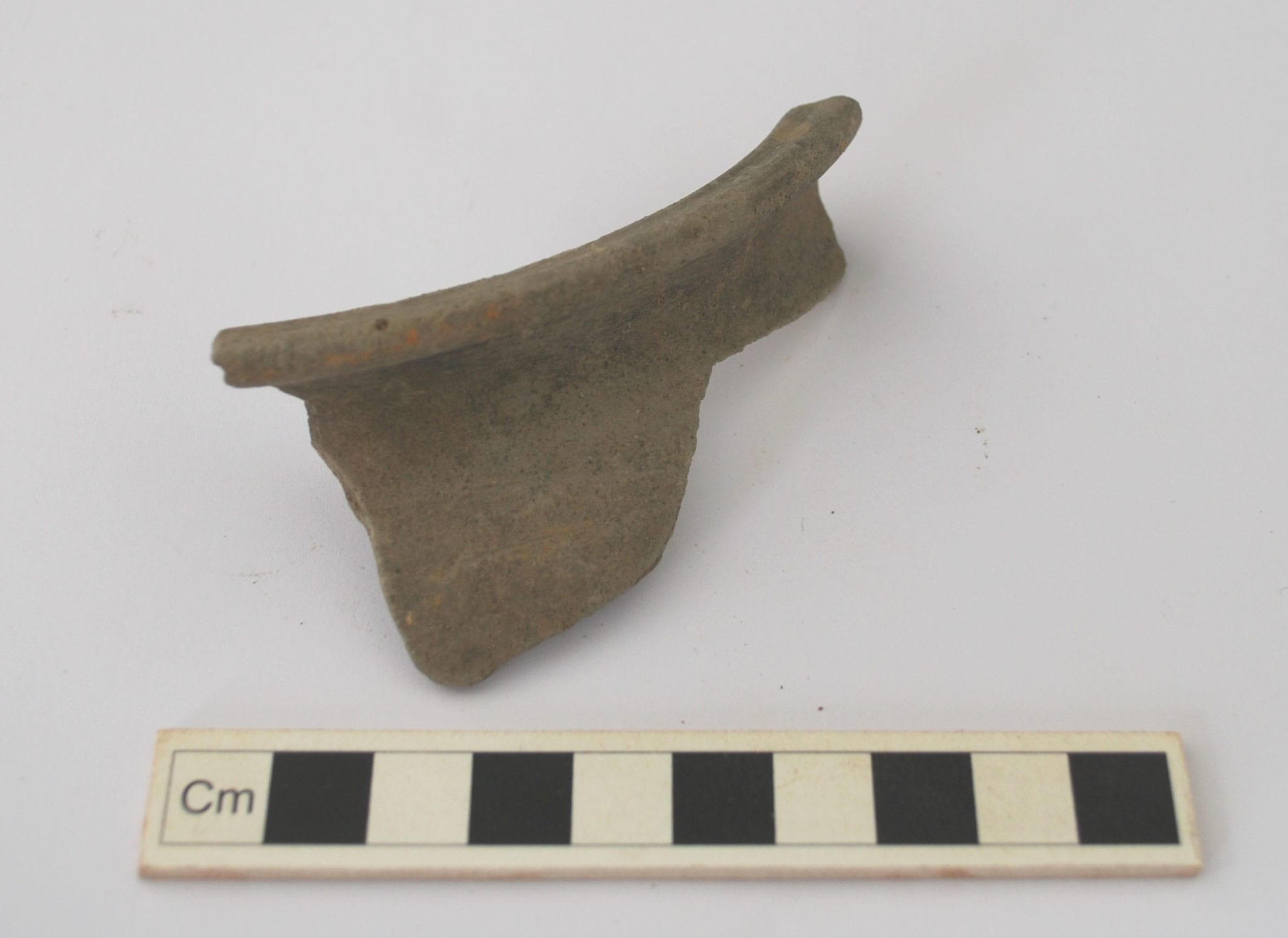

37GRB1 rim of rather narrow necked vessel with rim turned out almost flat



19234024cw-037

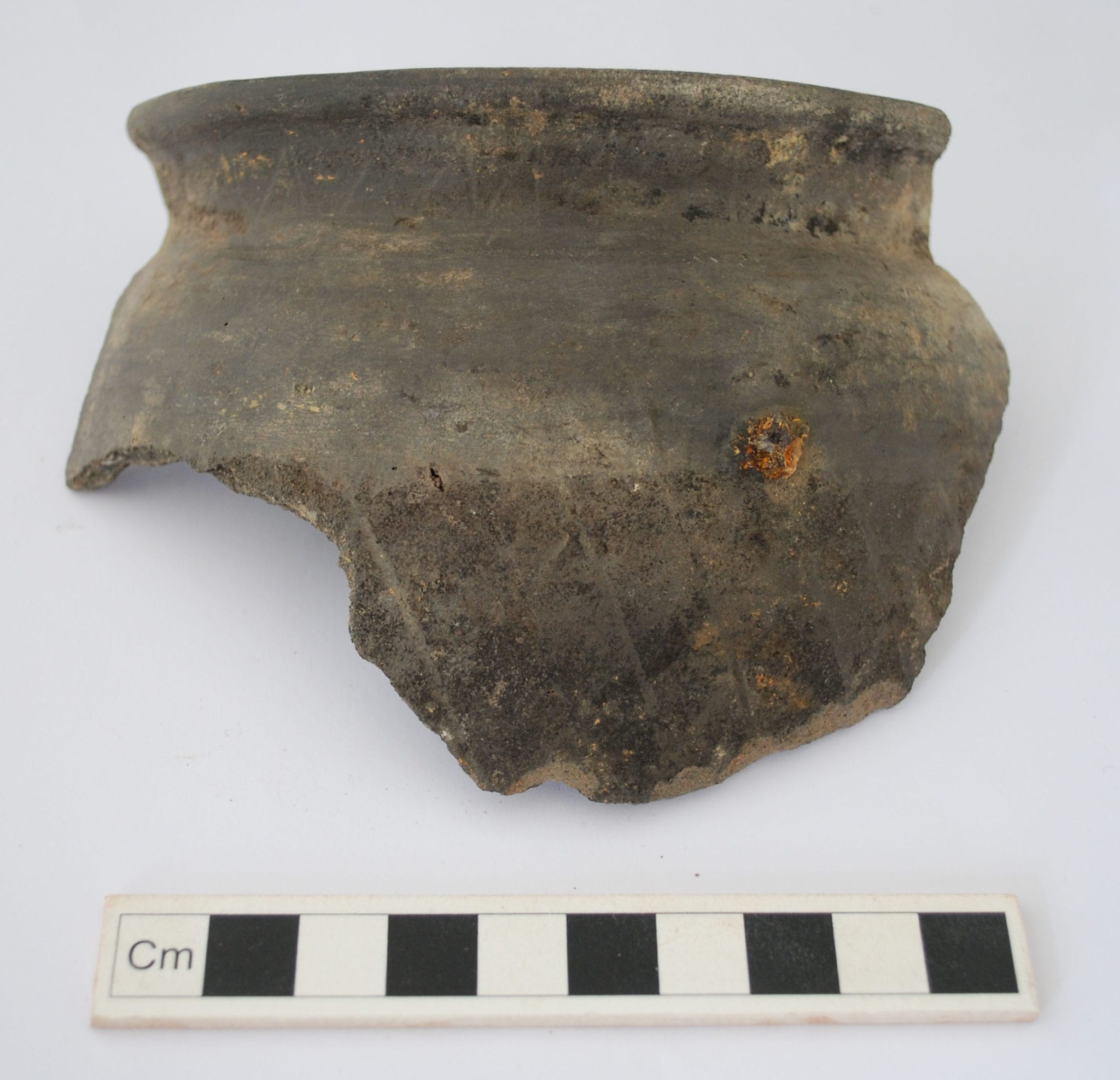

38BB1 necked jar with burnished wavy line on neck and acute lattice on body



20314024cw-038

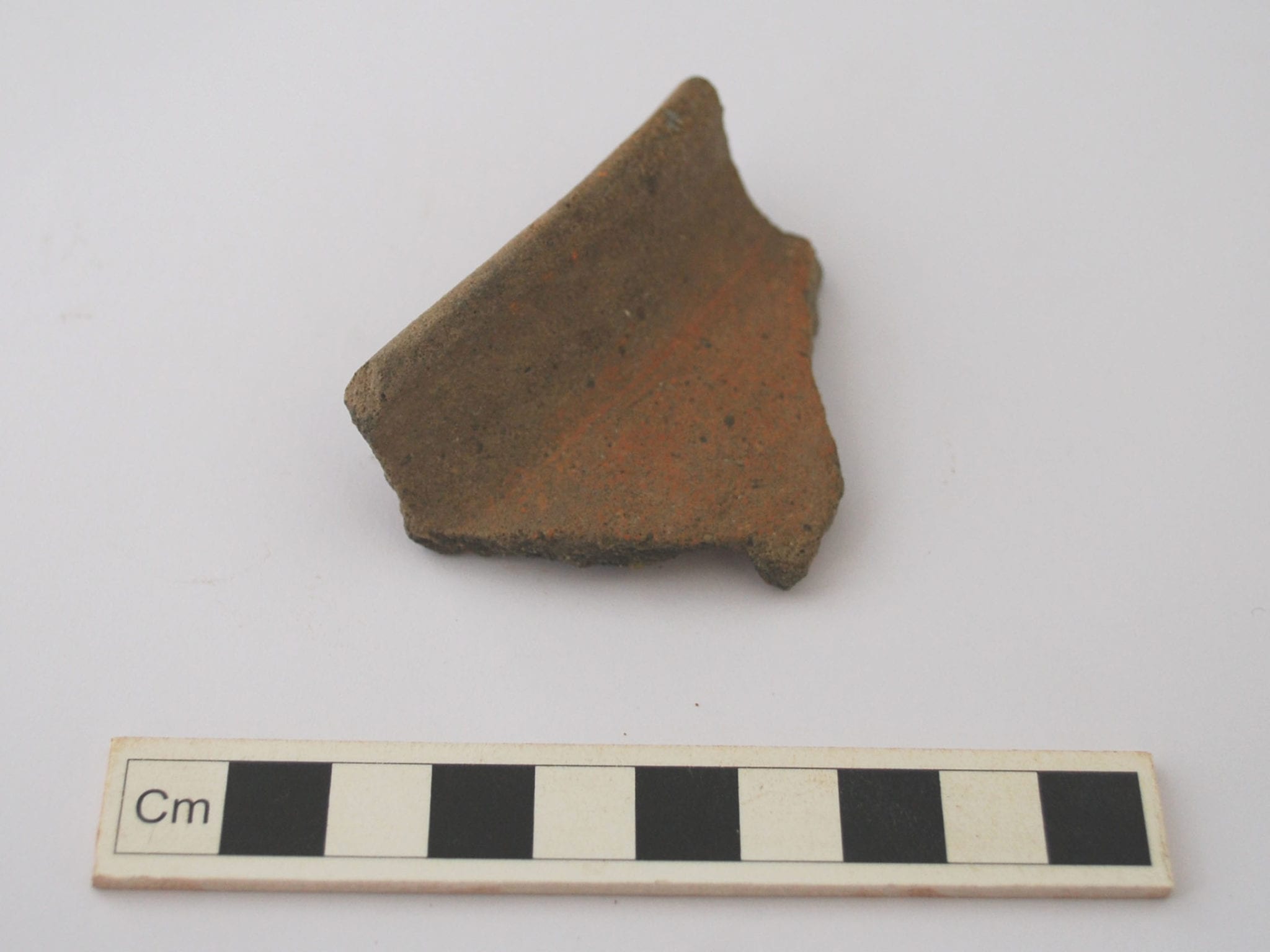

39BB1 necked jar with burnished wavy line on neck



28124024

cw-039


40GRB1 everted rim of small jar/beaker



5.4164024
41NV1 beaker sherd with barbotine dot trail



64024cw-041
42GMG1 bowl with flaring everted rim



16104074
43CC4 grooved, cornice rim roughcast beaker



12104074

 cw-043


44GRA1 neckless jar with triangular rim



10159129
45GRA2 short everted-rim jar with shoulder groove



17199129
46GRB1 knobbed lid



649119cw-046
47BB1 everted-rim jar with acute lattice burnish



183609089

cw-047


48BB1 neckless small jar/beaker with short everted rim, with acute lattice burnish



113159089cw-048
49BB1 flat rim bowl with burnished acute lattice



43159089

 cw-049


50CC1 everted-rim rouletted beaker



31139089
51OBA1 flanged hemi-spherical bowl



71109089
52GRC4 vessel with bulbous body and long necked, funnel rim



52109089
53FLA2 rebated rim large flagon/amphora as Gauloise 4



19622120812
54FLA7 rebated rim large flagon/amphora as Gauloise 4



3310120812
55MG3 carinated bowl with everted rim



3711124212cw-055
56GRB2 necked jar with everted rim tip



3525124212cw-056-acw-056-b
57BB1 rim of jar with everted rim



186124212
58TN EGGS bodysherd with rouletted decoration outside the middle body, a groove and burnished all over



2123212

 cw-058


59FLA2 honeypot type vessel with small ribbed handle



123212

 cw-059

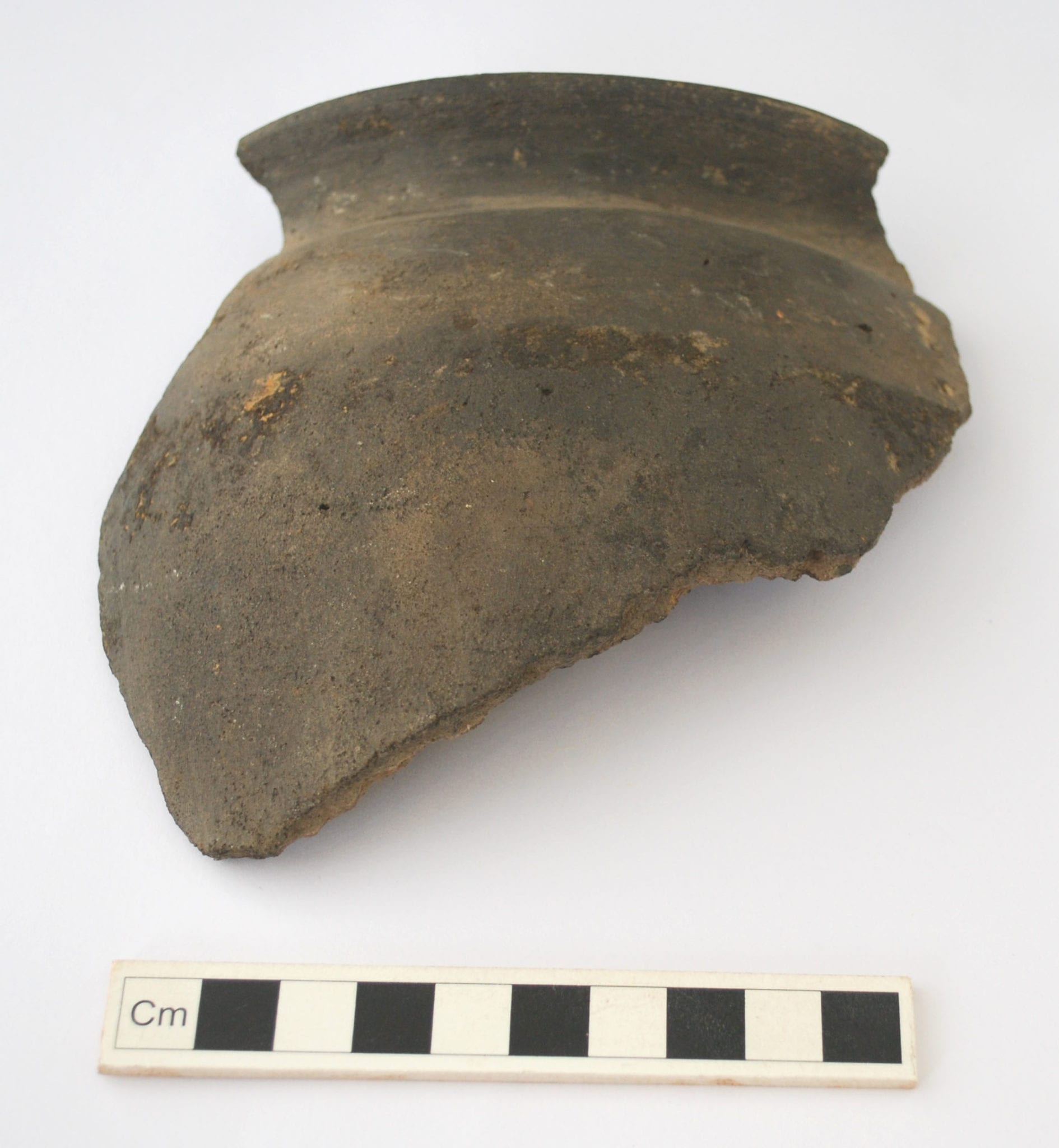

60BB1 necked jar with acute lattice burnish



15630122312

 cw-060


61BB1 necked jar with acute lattice burnish



8916122312

 cw-061


62BB1 neckless bead-rim jar



1611122312
63BB1 handled beaker



26122312

 cw-063


64BB1 grooved-rim dish with acute lattice burnish



4122312
65CC1 everted rim roughcast ware beaker



188122312cw-065
66GRB3 everted rim roughcast ware beaker



138122312

 cw-066


67OAA2 incomplete wedge-shaped rim of wide-mouthed jar



17122312
68GRB1 campanulate bowl, nearly complete



38414122312

cw-068-a

 cw-068-b

69FLB1 ring necked flagon



338100122312

 cw-069


70FLA/Gallic large flagon with rebated rim as Gauloise 4 amphora form



10615122312
71GRB3 abraded rim of narrow-necked jar with everted rim



6325122312
72GRA2 ring-necked flagon



1534122312

 cw-072


73OAA1/SV1 narrow-necked jar with wedge-shaped rim



3714122312
74OAB1 grooved rim hemispherical bowl



154122212
75MRS1 Rhaetian mortarium



18430121612
76MOWS8 incomplete rim sherd from flanged mortarium with grooved distal end



7121612

 cw-076


77OAA1/SV1 narrow-necked jar with wedge shaped rim



178121612
78OAA1 incomplete rim and body of bowl



14121612
79OAB1 hemispherical bowl rouletted body



232121612
80GRB3 necked jar with everted rim tip



11355121612

cw-080


81BB1 necked jar with wavy neck burnish



6925121612

 cw-081


82BB1 rim tip of splayed rim jar



95121612
83BB1 plain rim dish, acute lattice burnish



5015121612
84BB1 flat-rim bowl



5213121612
85BB1 bead and flange bowl



407121612
86GRB1 waster neck and base sherds from flagon



121612

 cw-086


87TN EGGS sherds from carinated beaker



6120512
88GRB2 necked jar with everted rim



1916127812
89GRA1 carinated bowl with bifid rim, double groove in middle of upper body with traces of oblique burnish lines on lower half of upper body



848128812
90GRA1 short everted rim jar



6156128812
91FLA 7 ring-necked flagon



610128912
92GMG1 campanulate bowl



1813124612
93BB1 neckless jar



226124612
94MOWS1?  flanged mortarium



31728124512

 cw-094-a

 cw-094-b

95BB1 incomplete rim of grooved flat rim bowl



93121012
96BB1 necked jar with everted rim



4438121012
97BB1 grooved rim bowl/dish



125121012
98BB1 flat-rim bowl/dish with acute lattice burnish



367121012
99FLB1 ring-necked flagon



20744121012

 cw-099


100CTA2 jar with rim bent over to form bead



2912121012
101MH1 incomplete rim of flanged mortarium



17610121012
102BB1 dish with flat rim and lattice burnish



3510128212
103BB1 necked jar rim



215128212
104BB1 neckless everted-rim jar/beaker



1114128212
105OAB1 everted rim of wide-mouthed jar



258128212
106GRB5 narrow-necked jar with rebated rim and zone of vertical burnished lines on shoulder



3915128212cw-106-a

cw-106-b

107CTA2OX jar with cordoned neck and everted rim



7217122812

 cw-107


108MVER mortarium



2629122812
109CTA2 everted rim jar with double shoulder groove



2735120612
110GRC6 everted rim from narrow-mouthed jar



1513128612
111OAB4 handled jar with everted rim and cordoned neck



21511128612
112BB1 jar with acute lattice burnish



846128612
113BB1 neckless jar



2015128112
114BB1 jar rim



197128112
115BB1 plain rim dish



227128112
116GRA2 neckless everted-rim jar



3521128112
117OAB1 very large dish with flat rim



37818128112

 cw-117


118M GAL mortarium



11514128112
119MH2 flanged mortarium



33225128112

 cw-119


120SV2 narrow necked jar with everted rim with zone of oblique lines defined by horizontal grooves on upper body



65322123712
121GRA2 jar bodysherd with zone of linear rustication between horizontal grooves, and between two plain zones with no rustication



54123712

 cw-121


122FLA2 flagon with pronounced rim



930122012
123GRB1 flat-rim bowl



10830122012

 cw-123-a

cw-123-b

124GRA2 reeded-rim bowl with double groove outside upper body and coming in to rounded carination



6329122012

cw-124-a

cw-124-b

125GRA2 neckless everted rim jar with shoulder groove



1410122012
126GRB8 hemispherical bowl as samian form 37



226122012
127MVER much of flanged mortarium



51625122012

cw-127-a

cw-127-b

128MVER flange from second mortarium



1178122012

 cw-128


129BB2 everted-rim jar with acute lattice burnish



294100121712
130MRS Rhaetian mortarium



645120412
131FLA1 everted rim jar with traces of painted arcs on upper body



121312
132MH1  rim, spout and base of early Mancetter-Hartshill flanged mortarium



121712
133MOWS2 Wilderspool flanged mortarium



121712
134MOWS1, probably Wilderspool flanged mortarium



121812
135MOWS1 Rhaetian type mortarium



U/S2
136MOWS9 incomplete rim and body of flanged mortarium



 cw-136-a

cw-136-b

137OAB1 fragment of open handled lamp



U/S4

 cw-137


138OAA4, but colour orange like OAA1, double bead rim beaker with lattice burnish outside body and an applied motif on this zone



U/S

 cw-138


139MH1 stamped mortaria ‘ICOTASGI’



41323121612

 cw-139-a

cw-139-b

140MH incomplete rim sherd with small part of unidentifiable stamp



3.98058

 cw-140


141MWROX stamped mortaria



13512121712

 cw-141-a

cw-141-b

142MH1 flanged mortarium stamped NANII



26521121712

 cw-142-a

cw-142-b

143MOSW8 variant, incomplete rim of flanged mortarium, herringbone stamp



27122312

 cw-143-a

cw-143-b

144MOSW8 Wilderspool  incomplete rim of flanged mortarium



61122312

 cw-144

Taphonomy – how the sherds got where they were found

The pottery sherds came from a variety of features and contexts such as pits, postholes, layers, road surfaces, ditches, buried soil and subsoil and arrived in these deposits in different ways. The sherds from the fabric of floors and metalled surfaces, if these surfaces are intact, can help date the construction of those features by providing a date after which they must have been built. Sherds from the surface of such features date to their use and disuse. The sherds from within such features, such layer 1228, tend to be abraded and scarce whereas the sherds from their surfaces can be more numerous suggesting they represent accumulation debris from their disuse, such as the group of 187 sherds from track 1206. There were a surprising number of sherds from surfaces suggesting these were not kept clean of ceramic debris in the way that floors, particularly hard floors such as mosaics, within higher status domestic dwellings such as villas tend to be.

Most of the pottery came from earthcut features or buried soil layers (Table 1). Assemblages from the primary fills of earthcut features such as pits and ditches are often contemporaneous rubbish deposits. The group from pit 403 is a good example of this. This group included a large number of fresh, large sherds from an unusually large number of bowls, all of the same type (20, 22, 28, 34-36). It was thought that this may be debris from a pottery kiln since some examples were misfired. The presence of a tazze (incense burner) raised the possibility that these were deliberately deposited by the potters as part of a ritual, perhaps invoking the gods to help them with their work. A group from pit 909 included large portions of some of the vessels (47-49), such as cooking jars, and this group represented domestic debris of some sort.

The vessel from the cremation in Trench 2 contrasts with these discarded sherds in being a deliberate deposit of burnt pottery fragments (15) collected from the pyre with the bones in the cremation pit. This may have originally been contained in an organic container or bag. Several of the ditches contained pottery in their fills. Only small numbers of abraded sherds came from the roadside ditches in trenches 1 and 12 since these were presumably kept clean of debris to aid drainage.

The majority of the pottery came from buried soil deposits, cleaning layers and unstratified levels. Similar deposits of buried soil were noted during excavations at the Fairclough site by Earthworks (Williams and Reid forthcoming). These deposits were rich in ceramic debris which was often unabraded and included near complete vessels. At the Fairclough site the archaeologist thoughts that the fluctuating watertable and the breakdown and reworking of sediments by organisms such as earthworms had resulted in the formation of these deposits which incorporated the upper parts of archaeological deposits. It would appear that the buried soil layers here are of a similar type since despite their stratigraphic positions early in the sequence, unless completely sealed by later impermeable layers such as clay or cobbling, they have mixed groups of pottery often including the latest sherds from the site. As a consequence the pottery from unsealed deposits of this type is dealt with separately from the well stratified groups.

Feature typeNosWeightAv weight
Hearth3299.7
Posthole437.69.4
Gully564.512.9
Mod drain919.72.2
Misc surfaces1063.86.4
Subsoil18201.611.2
Road21167.48.0
Road ditch22428.119.5
Testpits2-422167.17.6
Cremation34423.112.4
Topsoil36360.710.0
Layer112240321.5
Floor deposit1763874.222.0
Trackway2133051.614.3
Buried soil2764619.816.7
Cleaning5706964.512.2
Ditch6579721.214.8
Midden72711837.216.3
Pit108514551.213.4
Total400058985.314.7

Table 1 quantification of ceramic debris in feature types (includes samian)

The average sherd weight of 14.7g contrast with that from the Fairclough site (28.5g) suggesting the sherds were being broken up and abraded perhaps by being trampled or weathered.  No significant differences in the average sherd weights were noted from trench to trench.  When similar features types are compared from the two sites the pottery from Buckley’s Field was much smaller and more abraded than those from the Fairclough site.  For example, at the Fairclough site the average sherd weight from pits was 28g, from road ditches nearly 30g and from gullies, 13g.  These differences suggest this area was not a focus of fresh ceramic discard but was perhaps on the edge of an area used for domestic ceramic discard or an area where rubbish from middens was cleared.  The cremation in trench 2 would be consistent with this since burials tend to be situated on the edge of Roman settlements.

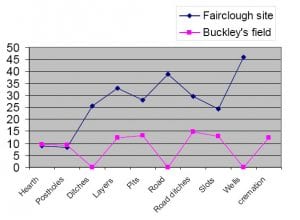

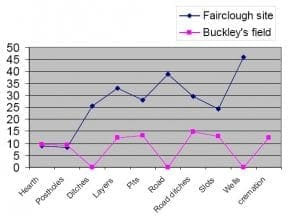

Figure 2 comparison of average sherd weight at the Fairclough site and Buckley’s Field

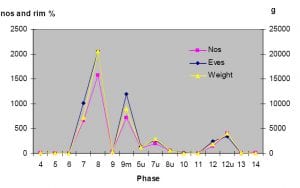

The rate of accumulation of pottery sherds fluctuated throughout the phases and both sherd counts and sherd weight fluctuated to a similar degree (Figure 3).  Very little pottery was being deposited in phases 4 to 6 but the quantity increased sharply in phase 7 and even more in phase 8 before declining during phase 9.  Much of the material in the phase 9 midden dates from the earlier phases so the quantity of new pottery being deposited would have been even smaller.  The subsequent rises in the chart represent earlier unsealed layers which have been placed later in the sequence but which contain pottery from phases 5, 7 and 8.  In phase 10 very little pottery was recovered apart from the pyre goods from the cremation and small numbers of mid-third century vessels fragments.

Much research has been carried out on differences in the ceramic assemblage from different kinds of sites (Evans 1993 and 2001, Willis 2005) and previous study of the ceramics from Middlewich found that the ceramics compared well with those from military rather than civilian settlements.  At Nantwich different activities zones were found (Connelly and Powers 2005) and similar zoning might be expected at Middlewich.

Unfortunately no rim sherds were recovered from the early phases so these phases cannot be assessed adequately.  The jar:bowl/dish ratios from phases 7 and 8 are within the range of those recovered from military type sites in the north (Evans 1993 in the second century) but the levels are relatively low and are markedly lower than those from the Fairclough site excavations (Figure 4). The relative quantities of jars from Manchester and Middlewich Fairclough site in the Hadrianic-Antonine periods are lower than those from the rural sites at Mellor, Tarporley and the industrial sites at Warrington and Tarbock, although jars were more common at both Manchester Barton St and Middlewich Fairclough site in the Flavian-Trajanic period.

From the analyses it would appear that Buckley’s Field is of a quite different character to the Fairclough site area.  Overall it compares better with the results from recent excavations at some of the higher status rural sites, perhaps reflects the sort of activity taking place on the edge of these small town settlement.  The Buckley’s Field group contrasts with assemblages from industrial settlements such as Walton-le-Dale and Wigan but is similar to groups from Wilderspool and Tarbock. Very little pottery has been recovered from many of the rural Romano-British settlements on the Cheshire Plain.  Sites such as Legh Oaks Farm, Great Woolden Hall and Brook House, Halewood and did not have enough pottery to include in this kind of analyses and a large group of sites are characterised by little or no Romano-British pottery (Nevell 2002, Nevell 1998 and Dunn 2000).  The similarity with the higher status rural sites would tend to suggest we are dealing with a zone on the edge of the town which was, perhaps, more like a higher status rural settlement in terms of the vessel range in use.  By contrast, the Fairclough site is more like the military and military related sites and the higher status industrial site assemblages.

Figure 4 Ratio of jars to bowls/dishes.  Squares= military forts or vici, lozenge = bath-house, probably military, triangles=industrial settlements, circles = rural settlements.  MB2.1 = Manchester Barton St vicus, Trajanic-Hadrianic, 2.2 Hadrianic-early Antonine, 2.3 late second century, MD: Manchester Deansgate vicus, late first to Hadrianic-early Antonine (Leary 2007), M2: Middlewich Fairclough site Hadrianic-early Antonine(Leary forthcoming), S= Segontium Trajanic-Hadrianic phase 5 (Webster 1993b), Wig=Wigan, Hadrianic-early Antonine bath-house (Leary unpublished b), M= Middlewich community Dig Hadrianic-early Antonine, Wil= Wilderspool industrial settlement, late first to early third century (Rogers and Garner 2007 and Lucas unpublished archive report), W-le-D= Walton–le-Dale industrial settlement, early Antonine phase (Evans in prep.), Sa = Saighton, rural settlement near Chester, early second to late fourth century (Leary unpublished c), I=Irby rural settlement, late first to fourth century (Griffins unpublished), Mell= Mellor rural site, second to late fourth century (Leary 2005), Tarp= Tarporley rural site,  late first to late second century (Fairburn 2003), T= Tarbock, legionary tilery and  late first to late second century (Jones 2000).

The analyses of the samian vessel types (Ward this report and Figure 7), by contrast, disclosed a high level of decorated wares similar to the Fairclough site suggesting that this type of pottery was obtained at similar proportions throughout the settlement.  The relative number of decorated samian bowls using rim percentage values was comparable but the Buckley’s Field site had rather more dishes and fewer cups. The relative quantities of amphora and samian ware generally were higher at the Fairclough site while other smaller differences such as the quantities of BB1, BB2, grey ware and oxidised wares (Figure 6) are due to the later dating emphasis at Buckley’s Field when BB1 and oxidised wares were more common and grey wares were being replaced by these wares.

Compared with other sites in the region, Buckley’s Field had less samian and amphora overall than the Manchester sites and is closer to the other “industrial” sites (Figure 5) but has significantly more than the rural sites with the exception of the unusual group from Mellor.  The Wigan group has a remarkably large percentage for amphora and this is likely to be related to the function of the building as a bath house, an area in which oil might be in demand for cleansing and for scented oil-based preparations.  Clearly these results highlight not only the differences in the ceramic assemblages at different kinds of sites but also in different functional areas within the settlements.  This study should be augmented by looking at other evidence such as other artefact groups and evidence from flora and faunal remains both at site level and at regional levels.

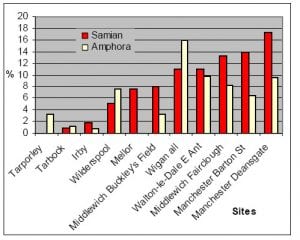

Figure 5 Comparison of relative quantities of samian and amphora
(from all phases at sites except where indicated)

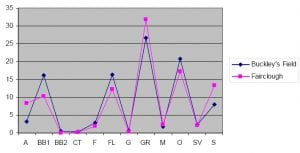

Figure 6 Relative quantities of major fabric groups using sherd count

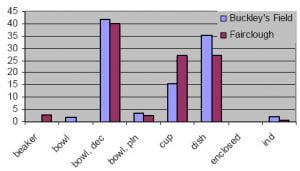

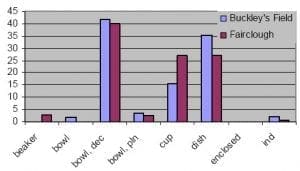

Figure 7 Relative proportions of vessel types within the samian assemblage at the Fairclough site and Buckley’s Field (using EVES values)

Detailed study of the vessels types from the Buckley’s Field excavations compared with those from the L-P excavations at Faircloughs showed that the latter had more bowls and dishes, cups and beakers although the Buckley’s Field excavations recovered more flagons (Figure 8).  When looked at in further detail, it is significant to note that not only were more bowls and dishes present at the Fairclough site but within the bowl and dishes and cups and beakers a greater proportion at the Fairclough site were made of samian (Figure 9), the tableware of choice for the rich, compared with the coarse ware types at Buckley’s Field.  These factors imply the activities carried out on the Buckley’s Field site were of a lower social status than those on the Fairclough site and/or had a functional character than required less classy ceramics.  It is significant that when the vessel types on each building area at the Fairclough site are compared with the overall figures for Buckley’s Field the Buckley’s Field group compares well with the material from the road at the southern limit of the Fairclough site excavations nearest to the Buckley’s Field excavations (Figure 10).

These differences in the characteristics of the ceramic assemblages from different parts of Roman Middlewich illustrate how areas of the settlement were used in different ways with some parts used for different industrial activities whereas others had a more domestic character.  If the results from the pottery are compared with data for other artefact types, industrial and environmental remains, it may be possible to determine further characteristics of these areas for which the ceramics suggest contrasting functions.

Figure 8 Comparison of the relative numbers of different vessel types at Buckley’s Field and the Fairclough site

Figure 9 Comparison of relative quantities of vessel types found in phases 7-9 at Buckley’s Field (BF) and in the late  first-early second (MF1) and Hadrianic-Antoine period (MF2) at the Fairclough site showing the relative percentages of samian bowls, dishes, cups and beakers.

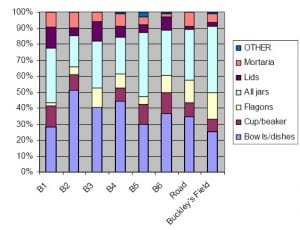

Figure 10 comparison of relative quantities of vessel types from different building plots at the Fairclough site with the overall quantities from Buckley’s Field

ASSEMBLAGES OF SPECIAL CHARACTER
The group of pottery from pit 403 included an unusually large number of campanulate bowls with flaring rims. One of these bowls was oxidised and other sherds from the pit included distorted rim sherds from the neckless everted-rim jars typical of the late first to early second century. This raised the possibility that this group may have been kiln waste. Since the group included BB1 vessels dating to the Hadrianic period, this suggests pottery manufacture continued at Middlewich at least until that period. The presence of a used tazze and a mica-dusted beaker with evidence of scorching around the rim suggested that this group may have a ritual character. At a kiln site at East Winch in the Nar Valley, Norfolk two waster vessels had been deliberately halved longitudinally and placed in two different kilns at the end of their working lives (Andrew Peachey pers comm.). At St Wilfrid’s Rd, Doncaster two similar deposits were found in ditches near the Cantley kilns (Leary unpublished d). Two near complete vessels, both wasters, occurring alone in pit F45 and a used Dales ware jar was found in the bottom of ditch with a near complete GRB1 indented beaker. These may all be deliberate placements representing structural deposition. The complete nature of the group in pit F45 and their isolation suggests these may also be offerings to some chthonic deity, their imperfect condition representing the need for success in kiln firings. The Dales ware jar and beaker, placed in the ditch, date to the end of the settlement and may relate to rites of termination. At both East Winch and Cantley these may represent “rites of closure” marking the end of the life of the kilns (Merrifield 1987, 48-50). This pit group here may be a similar phenomenon to the two wasters pots from Cantley, perhaps an offering to the gods after an unsuccessful firing in the hope of better results in future.

Specialized vessels such as colanders and so-called “wine-strainers” were not identified but three vessels hint at the spiritual side of life. A lamp fragment and a carinated beaker with an applied hammer motif associated with the Smith God Vulcan (137-138) came from unstratified levels. Both of these may be related to ritual activities and the motif related to Vulcan may be linked to the evidence for iron working at Middlewich (Strickland 2001, 58 and Williams and Reid forthcoming). Graham Webster has discussed the incidence of Vulcan figures on pots from Roman Britain (1989) and it is noticeable that several of these pots come from military sites such as Corbridge and some were associated with smithing (as at Elmswell, Webster 1989, 19). Unfortunately the lamp and Vulcan pot were not in their original context.

A third ritual vessel, a tazze (16), came from pit 405. Tazzes were incense burners and this one has been scorched around the inside from use. The integration of acts of worship and devotion with everyday life was more pronounced in Roman times when such acts would form an integral part of life even in the industrial areas of the settlement. It may be that an unsuccessful kiln firing resulting in the discard of the many bowls found in pit 403 also required the deposition of a tazze, perhaps still lit, as an offering to the gods to ensure future successful firings.

The pottery from cremation in trench 2 sherds light on cremation rituals in the mid-third century. Sherds from a burnt BB1 jar (15) were deposited with the cremation and are likely to represent remains of pyre goods deposited on the cremation pyre and gathered up with the cremated remains for burial. The fragmentary and incomplete condition of the pot makes it unlikely that this was a cremation urn deposited intact to hold the cremated bones. Ceramic vessels offered on the pyre are known in the third century cemetery at Brougham (Cool et al 2004, 441-2) although it can be difficult to distinguish such sherds from vessels placed at the side of the pyre and scorched. At an earlier cemetery at Wall, Warwickshire, evidence was found in some cremations for BB1 jars and beakers having been offered on the pyre and then fragments collected with the cremated remains (Leary 2008).

At the Fairclough site, study of the distribution of the burnt pottery showed how amphorae and flagons had been used during industrial processes being carried out in that area of the settlement.  At Buckley’s Field amphora sherds were rare and had not been burnt or modified in the way amphorae had been used at the Fairclough site.  Flagons also lacked the burnt and lime-scaled conditions found at the Fairclough site suggesting these too were not being utilised in the same way.  Lime-scale was noted on only four vessels and all were BB1 cooking jars, three of which also had burnt on remains where food such as stews, had boiled over and burnt on to the outside of the pot.  These burnt-on remains were common on the rim and shoulders of such jars (18) and a further 25 examples were notes of which only one was a grey ware rather than black burnished ware vessel.  These were all jars except one BB1 dish.

Over half the burnt sherds were also BB1 vessels.  A further 16% of all burnt sherds were flagons and 11% were mortaria, often scorched or burnt on the flange or rim (133, 141 and 142).  Scorching and burning of mortaria is not unusual and indicates that their usage could involve heating. At the Fairclough site the proportion of sherds burnt in each fabric group (Figure 11) were compared with a group from Doncaster vicus where data was available.  It was noted that overall more sherds were burnt at Middlewich Fairclough site, but a significantly greater number of the sherds from flagons and amphora were burnt suggesting these were being used in a different way at Middlewich to Doncaster.  A similar proportion of samian ware had been burnt on the two sites suggesting that this tableware was not being used in the industrial activities carried out on site, but was ordinary domestic debris.  When the material from Buckley’s Field is examined in this way it can be seen that, while there were more burnt sherds overall at Buckley’s Field than Doncaster, the proportions of burnt flagons and amphorae sherds were as low as at Doncaster. The proportion of burnt samian ware was slightly lower than the other two sites, but the proportion of burnt mortaria was higher, perhaps indicating activity involving food preparation which would be in line with the high numbers of jars and the burnt on food stuff on the jars noted above. The evidence of the burnt sherds thus contrast with the Fairclough site figures and indicates in this area pottery was being used in a different way, particularly the flagons and amphora.  In particular the general impression is that these vessels were not being re-used for industrial purpose as at the Fairclough site.  Rather the conditions of the mortaria and cooking jars suggest a domestic function.

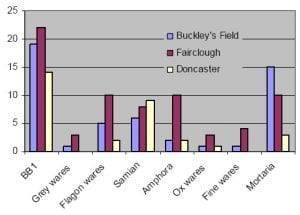

Figure 11 proportion of burnt sherds in each fabric group at Buckley’s Field, the Fairclough site and Doncaster High St vicus.

Some 31 sherd groups included overfired or distorted sherds.  Since pottery manufacture is known not far from the site, and some industrial usages may have resulted in vessels being burnt at sufficiently high temperatures to distort finished pots, this is not surprising.  Most of the sherds in this group were in fabric GRB2 with some FLB1 and a small number of white ware flagons. Grey ware jars and grey, slipped flagons were present in the Middlewich kilns.  It is likely that the flagons were misfired and an oxidised white slip flagon was intended, since grey ware flagons are rare in Roman Britain.

One BB1 jar had a perforation which may have been part of a repair.  A samian bowl and dish also had repair holes with parts of the lead rivets intact.

Graffiti were rare. Two illiterate graffiti or symbols were present on the coarse ware.  An OBB1 bodysherd had an incised Y with knobs on the top ends of the Y, and an OAA2 sherd had some scratches inside which may have been some sort of symbol. One samian CG cup had traces of an erased graffiti.

Re-used sherds were uncommon.  Half of a roundel made from a GRB1 sherd was identified and five samian sherds had been re-worked into counters, a rubber or in some other way (see Ward this volume).v

LATE FIRST- EARLY SECOND CENTURY

Too little pottery was recovered from the stratified deposits of this date (15 sherds) to reconstruct the wares being used on the site in this phase. However vessels of this date from later deposits included rusticated and plain jars with grooved shoulders and short everted rims in grey ware fabrics GRA1, GRA1B, GRB1, GRB2, GRB3, GRC1, MG3, OAA1 and OAB1, with only two sherds in the last two fabrics.

The late first-early second century kiln at Middlewich had a kiln load of ring-necked flagons and neckless, everted–rim jars, some with linear rustication. The jars were in a grey ware and the flagons included both grey ware and oxidised, white-slipped flagons. Some of the white-slipped flagons may have come from this local pottery and waster sherds were present whereas the white ware flagons are likely to have come from potteries also trading mortaria with the site such as those at Mancetter-Hartshill and Wroxeter. Nine bodysherds in a distinctively granular white ware typical of the kilns near St Albans may represent flagons from that industry which supplied Middlewich with mortaria during the late first and early second century.

One white-slipped “honey-pot” was identified. This form was made at the kilns at Holt and Wilderspool (Hartley and Webster 1973, no.39, Grimes 1930 nos 69 and 72) and is common in the first century, but was still present in Antonine levels at Manchester and Whitchurch (Leary 2007 fig 3.59 no. 115 and Webster 1969 no. 179). One uncommon white ware “honey-pot” was also present and this may have come from Wroxeter where the form is known to have been made in a white-slipped ware and also a cream ware (Evans 2000, 207 type JH3, JH2.11 in cream ware).

A hemi-spherical bowl in fabric GRB8, copying samian form 37, compares to a vessel from SLP and a bowl made at the early second century kiln at Northwich (Jones 1972 fig. 11 no. 16). Other bowls dating to this phase comprise a reeded-rim bowl and some carinated MG2 bowls. Two eggshell ware terra nigra vessels are likely to date from the mid- to late first century. One was the common carinated beaker form while another sherd had unusual rouletted decoration, but is likely to be of the same date range.

Fine wares other than samian were scarce. Several oxidised and reduced mica-dusted wares used to make beakers and carinated bowls were identified and these were also found at the Fairclough site. The reduced mica-dusted wares were similar to group from Manchester and may have been made there. At Middlewich and at Manchester Barton Street the mica-dusted wares were most common in the Trajanic-Hadrianic period although a third century mica-dusted oxidised ware is known from Nantwich (Evans in prep.). The earlier group included indented beakers, carinated bowls, a bead-rim hemi-spherical bowl and a reeded-rim bowl. One scrap of Central Gaulish glazed ware belongs to this phase. Eggshell terra nigra ware was also found at the Fairclough site but the scrap of Central Gaulish ware (see http://www.worcestershireceramics.org/hms/object.php?type=fabrics&id=107 for details of this ware) is not paralleled there.

Both imported and local colour-coated roughcast beakers were present in small numbers on both Middlewich sites. The mortaria of this date came from the Verulamium kilns and north Gaul. At the Fairclough site these were further augmented by mortaria from Holt and the Rhone Valley.

HADRIANIC-EARLY ANTONINE

The assemblage compared very well with the Hadrianic-Antonine groups from the Fairclough site. Some 26% of the pottery assemblage was locally produced grey ware either from Middlewich or other kilns on the Cheshire Plain, and a further 21% comprised oxidised Cheshire Plain fabrics. 16% of the group assemblage came from the black burnished ware industry in Dorset and 2% from the Severn Valley industries. The quantity of BB1 is somewhat greater than at the Fairclough site overall but compares very well with the Hadrianic-early Antonine groups as does the Severn Valley ware contribution. The single BB2 jar is unusual but small numbers of BB2 are known from the Cheshire Plain such as two sherds from the Beetham Hilton Hotel site, Deansgate, Manchester (Martin in prep.).

Changes in the quantities of wares by phase show a rise in the amounts of BB1 vessels reaching the site between the phases 7 and 8 which is also found at the Fairclough site. At Manchester Barton St the rise in BB1 occurred in Phase 3.1 dating to cAD160. Discounting the small early groups in phases 4-6, the oxidised Cheshire Plain wares increased numerically in phases 8, 9 and 10 as the reduced wares became less common. The Severn Valley type wares also increase during this period. The evidence for wasters and distorted sherds suggests that some of the reduced wares came from local kilns, but the absence of oxidised wasters may indicate a decline or cessation of production at kilns in Middlewich by the mid-second century.

The BB1 vessels comprised everted-rim jars with lattice burnish, flat-rim bowls and dishes, plain and grooved-rim dishes, small jars/beakers and some lids and small numbers of the late jars with obtuse lattice, one bead and flange bowl and one grooved, flat-rim bowl. 56% of the BB1 vessels were jars and of these most were of Hadrianic-early Antonine date. Around 32% were bowls and dishes dominated by the Hadrianic-early Antonine bowls and dishes with flat rims with some so-called dog-dishes with grooved or plain rims.

The grey wares were less common in this phase. The campanulate bowls in pit 403 are of this date and some of the neckless, everted-rim jars may have continued to be used in the Hadrianic period. Other forms such as the narrow-necked jars are difficult to date securely typologically and as much of the late first to early second century material was present in the later groups, it is not possible to date them stratigraphically. A flanged hemi-spherical bowl may belong to this period as may the roughcast beakers. However during this period the oxidised wares became more common.

The oxidised wares included hemi-spherical bowls copying samian forms 30 and 37, a flanged, hemi-spherical bowl and everted-rim beakers, perhaps originally roughcast. From phase 8 onwards several narrow-necked and wide-mouthed jars appeared which were similar to vessels made in the Severn Valley industries. Two of these, both narrow-necked jars with wedge-shaped rims, were in a finer fabric similar to some of the Severn Valley ware fabrics. Only four vessels, two narrow-necked jars and two wide-mouthed bowls, were certainly identified as Severn Valley ware.

The flagons were made up of white wares and local white-slipped wares in similar proportions. The overall numbers of white and white-slipped wares were very similar to those from the Fairclough site and occurred in similar proportions throughout phases 6-9. It is likely that the white-slipped wares came from potteries such a those at Wroxeter and Mancetter-Hartshill since evidence from kilns on the Cheshire Plain suggests that the local clays fired to an orange colour and were slipped to obtain a white surface. It is not clear whether the later ring-necked flagons in white-slipped wares were locally produced or traded with the mortaria in similar fabrics from larger potteries such as those at Wilderspool. The white-slipped flagons were predominantly ring-necked forms, with a slightly splayed profile. Also present was a cupped-rim form (1) and one flagon with a simple everted-rim form (as Leary 2007 fig. 3.59 no. 116 from an Antonine group at Manchester Barton St.). Three examples of the white-slipped flagons were burnt or overfired and could be wasters. Unfortunately these were represented by bodysherds only and their full form is unknown. Two overfired mortaria from SLP were probably wasters and of local manufacture in Middlewich or in the vicinity. These dated to cAD 130-60 so it may be suggested that local manufacture of pottery extended into the early Antonine period and included mortaria and possibly also flagons. No other Antonine wasters have been identified.

The white ware flagons included one ring-necked flagon but most of the vessels were large with bead rims, rebated internally similar to the form of the imported Gallic wine amphora. David Williams commented that in general, the fabric was too coarse to represent most of the Gauloise series, certainly the Narbonnensian Gauloise 4, the most common Gauloise form found in Roman Britain and classified them as flagons. The well-sorted quartz grains in the fabric, together with occasional strands of muscovite mica may well derive from the local Triassic Sandstones. Similar vessels were identified at the Fairclough site and at Manchester Barton St (Leary forthcoming no. 192, Webster 1974 no.230 and Leary 2007 fig. 6.32 no. 167) and at Warrington (Webster 1992 no. 209) associated with Antonine coarse pottery and samian. In addition similar vessels have been noted at Rocester (Leary forthcoming). The example from Manchester is double handled. Several similar vessels were found at Derby Little Chester (Birss 1985 fig. 40 no. 41 and fig. 41 no. 70). Most of the dating evidence points to a date range in the Hadrianic-Antonine period. The form is similar but smaller than the British-made Gauloise 4 amphorae from St Albans and London (Symonds 2003). The source of these flagons has not yet been established.

There were fewer samian vessels in the stratified groups than at the Fairclough site but this was due to functional differences within the excavated areas (8% rather than the 13% at the Fairclough site).
As in the late first-early second century fine wares other than samian were scarce. Local and possibly imported roughcast beakers were present at low levels (<1%) but no red-slipped fine ware of the type made at Wilderspool was present.

Small amounts of traded wares came from the Midlands and Derbyshire. The shell-tempered and grog-tempered storage jars came from the south Midlands (Bedfordshire and Northamptonshire). The shell-tempered ware may all be from one vessel, a large storage jar with cordon and grooves, similar in form and fabric to a vessel from Harrold, Bedfordshire (107). The grog-tempered sherds were undiagnostic except sherds from one storage jar (29). Three slightly different fabrics were identified and these may belong to a ware group from the south Midlands around Towcester in Northamptonshire known as early pink-grogged ware, which developed into a late pink grogged fabric with a wider distribution pattern (Booth and Green 1989). An early rebated-rim jar (Booth and Green 1989 nos 15-16) was identified in the Fairclough site (Leary forthcoming no. 82). Six sherds from Derbyshire ware jars were identified and these can be paralleled at Nantwich, Wilderspool and Mellor on the Cheshire plain, and also at Ribchester and Quernmore (Webster 1982, 22, Jones and Shotter 1988, 142 and Hinchcliffe and Williams 1992, 151 no. 668). An early-Derbyshire ware jar was also identified at Melandra (Webster 1971, 104 no. 181). These vessels may well have been distributed on a small scale for their contents and have also been identified at Walton-le-Dale (Evans in prep) but not at Manchester (Leary 2007). Alternatively they could represent the movement of troops from the Midlands to the Cheshire Plain as has been suggested for the Cumbrian mortaria found at the Fairclough site (Hartley and Leary forthcoming).

Some small sherds from a Malvernian jar was identified (http://www.worcestershireceramics.org/hms/object.php?type=fabrics&id=139, Peacock 1967) and a vessel of this type was also found at the Fairclough site. It has been suggested that Malvernian jars may have been used for the distribution of salt (Peacock 1967, 27). Although it is unlikely that salt would be being traded to Middlewich, it may represent the personal belongings of a salt worker in the Malvern area who was visiting or had moved to the site for work.

Considerably fewer amphora sherds were present at Buckley’s Field compared with the Fairclough site (3% rather than 8%). Most of the vessels were Dressel 20 oil amphorae with 0.3% of the ceramic assemblage being Gallic amphorae. The globular-shaped amphora form Dressel 20 (Peacock and Williams, 1986, Class 25) carried olive-oil from the Roman province of Baetica in southern Spain and is found on many sites in Britain, showing something of the wide distribution of olive-oil in the Roman Empire (Williams and Peacock, 1983). Dressel 20 amphorae were produced over a long period, from the reign of Claudius until shortly after the middle of the third century AD and well over 100 Dressel 20 kilns in the region of the River Guadalquivir are known to date (Rodriguez Almeida, 1989). A number of body and basal sherds most probably belong to the flat-bottomed Gauloise amphora series from southern France and date from the mid first century AD to around the end of the third century AD (Laubenheimer, 1985). This was the most common wine amphora imported into Roman Britain during the second century AD and predominantly from Narbonensis. At the Fairclough site a greater range of amphorae were identified including Verulamium amphora sherds and four sherds from an amphora from Lipari, which seems to have carried alum and is dated to the first century AD and early second century (Borgard and Cavalier, 2003).

In the first half of the second century the sources supplying mortaria in the late first to early second century were superseded by local production at Wilderspool and (as yet) unexcavated kilns suspected elsewhere on the Cheshire Plain. Fragments of eight vessels dating to the first half of the second century were identified as products of the Wroxeter kilns, with a small number (about three or four) of early Mancetter-Hartshill mortaria. None of the mortaria from kilns on the Cheshire Plain can be certainly dated after cAD160 whereas eleven of the Mancetter-Hartshill mortaria can be dated after AD140. Mancetter-Hartshill is the only source contributing mortaria in the third century in this part of Middlewich.

Table 2: Mortaria by date and source using minimum vessel count (click to view)

Table 3: Mortaria by date and source using rim equivalent values (click to view)

LATE SECOND TO THIRD CENTURY

Very little pottery dated to this period. A small number of oxidised wares from the later phases date typologically to the later second and third century, such as the bifid-rim narrow-mouthed jars (11-13) and wide-mouthed jars (67 and 105) and some of these were of Severn Valley type. The late BB1 vessels comprised one grooved, flat-rim bowl and a bead and flange bowl and at least five late jars with obtuse lattice. Also belonging to the late Roman period were two shell-tempered ware jars of south Midlands type (100 and 110) and six mortaria of typologically late form. The late Nene Valley mortaria present at the Fairclough site were not found in this group, and Nene Valley colour-coated ware was uncommon. This ware is scare generally at Roman sites on the Cheshire Plain (<1%). One scrap of Trier black slipped ware was also identified. Four sherds of this ware were present at the Fairclough site, and one sherd at Nantwich (Evans in prep).

The assemblage indicated activity from the late first/early second to the mid-second century with rather less activity after cAD160.  Later activity included a mid-third century cremation but no pottery sherd has to be dated later than the middle of the third century with the exception, possibly, of the two shell-tempered jars.

The assemblage is broadly similar to that previously excavated from the Fairclough Site, but showed distinctive characteristics relating to the function of the area and its position towards the edge of the town.  Changes in the ceramics coming to the site over time were similar to that found elsewhere in Middlewich and suggest a decline in locally made ceramics in the early second century and a rise in traded coarse wares from Dorset and from kilns on the Cheshire Plain at Wilderspool and other unlocated kilns.  The level of decorated samian indicated the settlement had a military-type assemblage but the characteristics of the group in terms of other luxury goods and table ware: kitchen ware ratios suggest the area was of fairly low status.  The evidence of the sherds conditions and secondary usage of vessels such as amphorae contrasted with that at the Fairclough Site, where vessels such as amphorae and flagons had been utilised in industrial activities relating to salt production.  No such evidence was noted in this excavated area.  Some evidence for religious activity was recovered, in addition to the cremation burial, and suggested ritual acts, perhaps related to the industrial activities being carried out in the vicinity, namely potting and iron working.  The evidence adds to our understanding of how the settlement at Middlewich may have been zoned according to the activities being carried out.The assemblage indicated activity from the late first/early second to the mid-second century with rather less activity after cAD160.  Later activity included a mid-third century cremation but no pottery sherd has to be dated later than the middle of the third century with the exception, possibly, of the two shell-tempered jars.

The assemblage is broadly similar to that previously excavated from the Fairclough Site, but showed distinctive characteristics relating to the function of the area and its position towards the edge of the town.  Changes in the ceramics coming to the site over time were similar to that found elsewhere in Middlewich and suggest a decline in locally made ceramics in the early second century and a rise in traded coarse wares from Dorset and from kilns on the Cheshire Plain at Wilderspool and other unlocated kilns.  The level of decorated samian indicated the settlement had a military-type assemblage but the characteristics of the group in terms of other luxury goods and table ware: kitchen ware ratios suggest the area was of fairly low status.  The evidence of the sherds conditions and secondary usage of vessels such as amphorae contrasted with that at the Fairclough Site, where vessels such as amphorae and flagons had been utilised in industrial activities relating to salt production.  No such evidence was noted in this excavated area.  Some evidence for religious activity was recovered, in addition to the cremation burial, and suggested ritual acts, perhaps related to the industrial activities being carried out in the vicinity, namely potting and iron working.  The evidence adds to our understanding of how the settlement at Middlewich may have been zoned according to the activities being carried out.

Table 4: Vessel types from phased contexts quantified by vessel equivalents (EVES) (click to view)

Table 5: Relative proportions of wares and fabrics from stratified groups by phase using sherd count (click to view)

Table 6: Relative proportions of wares and fabrics from stratified groups by phase using sherd weight (click to view)

Table 7: Relative proportions of wares and fabrics from stratified groups by phase using estimated vessel equivalents (click to view)

Bidwell, P. T. 1985 The Roman Fort of Vindolanda. London
Bidwell, P. and Croom, A. The Camulodunum/Colchester type series. In R.P. Symonds and S. Wade Roman Pottery from Excavations in Colchester 1971-86 Colchester Archaeological report 10, 468-99.

Booth, P. 1996 Tiddington Roman Settlement: Iron Age, Roman and Anglo-Saxon Pottery. Report for Warwickshire County Council

Booth, P. 2006 The Pottery. In J. Magilton A Romano-Celtic temple and settlement at Grimstock Hill, Coleshill, Warwickshire. Transactions Birmingham and Warwickshire Archaeol. Society 110, 1-231.

Booth, P.M. and Green, S. 1989 The nature and distribution of certain pink, grog tempered vessels. Journal of Roman Pottery Studies 2, 77-84

Borgard, P. and Cavalier, M. (2003) “The Lipari origin of the Richborough 527”, Journal of Roman Pottery Studies, 10, 96-106.

Brown, A.E. 1994 A Romano-British Shell-Gritted Pottery and Tile Manufacturing Site at Harrold, Bedfordshire. Bedfordshire Archaeological Journal 21, 19-107.

Carreras, C. and Funari, P. (1998) Britannia Y El Mediterraneo, Barcelona.

Carreras, C. and Williams, D.F. (2003) “Spanish olive-oil trade in late Roman Britain: Dressel 23 amphorae from Winchester”, J. Roman Pottery Studies, 10, 64-68.

Callender, M. H. (1965) Roman Amphorae, London.

Connelly, P. and Powers, D. 2005 Salt-making at Roman Nantwich: Recent Discoveries at Kingsley Fields, Welsh Row. In M. Nevell and A.P. Fielding Brine in Britain: recent archaeological work on the Roman salt industry in Cheshire, 31-40. Archaeology North West Vol 7 (Issue 17 for 2004-5)

Cool, H.E.M. 2004 The Roman Cemetery at Brougham, Cumbria, Excavations 1966-67. Britannia Monograph Series 21

Cool, H.E.M. and Leary, R.S. forthcoming Aspects of the use of samian pottery in Romano-British funerary practices.

Darling, M.J. 2004 Guidelines for the archiving of Roman pottery. Journal of Roman Pottery Studies Vol 11, 67-75.

Davis, C, Garner, D, Gibbons, P, Miller, I, and Olivier, A, in prep, Excavations at Walton-le-Dale, Lancashire. Evans, J, and Rátkai, S, with Hartley, K F, ‘The Walton-le-Dale pottery’

Dunn, G. 2000 Romano-British Pottery. In Cowell and Philpott 2000, 45-6

Evans, J. 1987 Graffiti and the Evidence of Literacy and Pottery use in Roman Britain. Archaeol. J. 144, 191-204

Evans, J. (1993) Pottery function and finewares in the Roman north. Journal of Roman Pottery Studies 6, 95-119.

Evans, J. 2001 ‘Material approaches to the identification of different Romano-British site types’, in James, S and Millett, M. Britons and Romans: advancing an archaeological agenda, 26-35, (Council for British Archaeology Research Report 125).

Evans, J. 2004a The Roman pottery from Nantwich; an assessment. For UMAU

Evans, J. 2004b The Pottery vessels. In Cool 2004, 333-360.

Evans, J. in prep The Roman pottery from excavations at Walton-le-Dale

Evans, J.C., Jones, L. and Ellis, P.2000 Severn Valley ware Production at Newland Hopfields. BAR British Series 313. Oxford.

Evans, J.C 2000 Form series. In Ellis, P. 2000 The Roman Baths and Macellum at Wroxeter, Excavations by Graham Webster 1955-85, 195-245. English Heritage Archaeological Report 9. London

Fairbairn, N. 2003 Birch Heath, Tarporley: excavations of a Rural Romano-British Settlement, Journal Chester Archaeological Society, new series 77 (for 2002), 59-114

Ferris, I, Bevan, L, and Cuttler, R, 2000 The excavation of a Romano-British shrine at Orton’s Pasture, Rocester, Staffordshire, BAR Brit Ser 314, Staffordshire, East Midlands: Bevan, L, ‘Roman coarse pottery’, 17–29.

Gillam, J. P., 1970, Types of Roman Coarse Pottery Vessels in Northern Britain, third edition, Newcastle

Gose, E. 1950 Gefasstypen der Romischen Keramik im Rheinland, Bonner Jahrb. , Beiheft 1, Kevelaer.

Gillam, J. P., 1976, ‘Coarse fumed ware in northern Britain and beyond,’ Glasgow Archaeol. J. 4, 57 89

Gould, J.T. 1963 Excavations at Wall, Staffs. 1946-6, on the site of the Roman Forts. Transactions of the Lichfield and South Staffordshire Archaeological and Historical Society VIII, 1-40.

Greene, K. T. 1979 Report on the Excavations at Usk, 1965-76. The Pre-Flavian Fine Wares. Cardiff.

Greene, K. T. 1993 The Fortress Coarsewares. In W.H. Manning Report on the Excavations at Usk 1965-76. Cardiff, 3-121Grimes, W.F. 1930 Holt, Denbighshire: the works-depot of the Twentieth Legion at Castle Lyons. Y Cymmrodor41, 1-235.

Griffin, L. unpublished Mill House Road, Irby, Wirral (Site 30) The Roman Pottery.

Hancocks, A. 2004 Romano-British Pottery. In A. Jones Roman Birmingham 2 Metchley Roman Forts excavations 1998-2000 and 2002 The Eastern and Southern Annexes and other investigations. Trans. of Birmingham and Warwickshire Arch. Soc 108, 47-66

Hartley, K.F. 1972 The mortaria. In Frere, S.S. Verulamium Excavations Vol. 1. Rep. Res Comm. Soc. Antiq. London. XXVIII Oxford

Hartley, K.F and Webster, P.V.1973 ‘Romano-British Pottery Kilns near Wilderspool,’ Archaeological Journal 130, 77-103.

Hartley, K.F. 1981 Painted Fine Wares made at the Rhaetian workshops near Wilderspool, Cheshire. In A.C Anderson and A.S Anderson (eds) Roman Pottery Research in Britain and North west Europe BAR Suppl Ser. 123, 471-79

Hartley, K.F. 1993 The mortaria. In P.J. Casey and J.L. Davies with J. Evans 1993. Excavations at Segontium (Caernarfon) Roman Fort 1975-1997. CBA Res Rep 90, 309-316

Hartley, K.F. 1997 ‘Rhaetian’ mortaria in Britain. Rei Cretariae Romanae Favtorvm Acta 35, 239-44.

Hartley, K.F forthcoming ‘Rhaetian’ mortaria

Hartley, K.F, forthcoming The Mortaria. In Melanie Johnson, Alex Croom, Kay Hartley and Ray Mc Bride, with contributions by Sue Anderson, Mike Cressey and Fraser Hunter. Two Flavian to Early Antonine Romano-British Pottery Kilns at 7a Fisher St, Carlisle. Journal of Study Group of Roman Pottery 15

Jones, G.D.B. 1972 Excavations at Northwich (Condate). Archaeol. Journ. 128, 31-78.

Jones, G.D.B and Webster, P.V 1969 Mediolanum: Excavations at Whitchurch, 1865-6. Archaeological Journal 125, 193-254

Jones, L.C. 2000 Romano-British Coarse Pottery. In Philpott, R. Ochre Brook, Tarbock in Cowell, R.W. and Philpott, R.A. 2000 Prehistoric, Romano-British and Mediaeval Settlement in Lowland North West England, 85-91

Laubenheimer, F. (1985) La Production des Amphorese En Gaule Narbonnaise, Paris.

Leary, R.S. 2001 Vicar Lane, Romano-British Coarse Ware Report. In P.A. Connelly and J. Walker Excavations at Chesterfield 1998-2000, 68-95.

Leary, R.S 2005 Mellor: the Romano-British pottery 1998-2003. In M. Nevell and N Redhead. Mellor: Living on the Edge. Manchester Archaeological Monographs Vol. 1, 44-8

Leary, R.S. 2007 Romano-British Coarse Pottery. In R.A. Gregory, Roman Manchester. Oxbow, 73-126, 154-55 and 168-77.

Leary, R.S. 2008 The Romano-British Pottery. In Andrew B. Powell, Paul Booth, A.P. Fitzpatrick and A.D. Crockett The Archaeology of the M6 Toll 2000-2003. Oxford Wessex Archaeology Monograph 2

Leary, R.S. forthcoming The Roman Coarse Pottery. In M. Williams and M. Reid Salt: Life and Industry. Excavations at King St, Middlewich, Cheshire 2001-2002.

Leary, R.S. unpublished a The Romano-British Pottery from Northfields, Rocester, Staffordshire. Report for Birmingham archaeology.

Leary, R.S. unpublished b The Romano-British coarse pottery from the Grand Arcade, Wigan. For Oxford Archaeology North.

Leary, R.S. unpublished c Phase 2 Development, Saighton Camp, Chester: Post Excavation Assessment of the Romano-British Pottery. For Northern Archaeological Associates

Leary, R.S. unpublished d The Romano-British pottery from St Wilfrid’s Rd, Cantley. For Pre-Construct Archaeology Lincoln

Marsh, G. 1978 Early Second Century Fine Wares in the London Area. In P. Arthur and G. Marsh (eds) Early Fine Wares in Roman Britain. British Archaeological Reports British series 57, 119-223.

Martin, T.S. 2004 The Roman pottery from the Beetham Hilton Hotel site, Deansgate, Manchester (DGM 04) Assessment report

Monaghan, J 1987 Upchurch and Thameside Roman Pottery. British Archaeol. Report Brit. Ser.1973

Monaghan, J., 1997, Roman pottery from York. The pottery, Fasc. 8 In The archaeology of York / general editor, P.V. Addyman. Vol. 16. Published for the York Archaeological Trust by the Council for British Archaeology

M. Nevell 1998 Great Woolden Hall, excavations on a late prehistoric /Romano-British native settlement. Greater Manchester Archaeological Journal 3 (for 1987-88), 27-34

M. Nevell 2002 Legh Oaks Farm, High Legh, the value of Sample Excavation on Two Sites of the Late Prehistoric and Roman Periods, Journal Chester Archaeological Society 77 for 2001, 115-129

Oswald, F., 1948 The Commandant’s House at Margidunum. University College Nottingham.

Oswald, F. 1952 Excavations of a Traverse of Margidunum. Nottingham. Nottingham University Press

Peacock, D.P.S. 1967 Romano-British Pottery Production in the Malvern District of Worcestershire. Transactions of the Worcestershire Archaeological Society, 3rd Series 1 (1965-7), 15-28.

Peacock, D. P. S and Williams, D. F. (1986) Amphorae and the Roman Economy, London.

Rogers, I.R. and Garner, D.J. 2007 Wilderspool and Holditch Roman Boom-Towns on the ‘Road North’. BAR British Series 449.

Shotter, D.C.A. 2000 Middlewich The evidence of Roman Coin Loss. Journal of Chester Archaeological Society 75(for 1998-9), 51-60.

Strickland, T 2001 Roman Middlewich. The Roman Middlewich Project.

Swan, V G 2002 The Roman pottery of Yorkshire in its Wider Historical Context. P. Wilson and J. Price (eds) Aspects of Industry in Roman Yorkshire and the North, 35-79. Oxbow

Tomlin, R S O 1988 The curse tablets, in Cunliffe, B (ed), The Temple of Sulis Minerva at Bath, Vol 2. The Finds from the Sacred Spring, Oxford. Univ. Comm. Archaeol. Monograph 16, 59-277.

Symonds, R. P, 2003 Romano-British amphorae. Journal of Roman Pottery studies 10, 50-59.

Ward, M. 1981 Terra nigra – Type wares from Chester. In A.S Anderson and A.S Anderson (eds) Roman Pottery Research in Britain and North West Europe BAR Suppl Ser. 123, 51-68

Webster, G. 1989 Deities and religious scenes on Romano-British pottery. Journal of Roman Pottery Studies 2, 1-28

Webster, P.V. 1971 Melandra castle Roman Fort: excavations in the civil settlement 1966-1969. DAJ XCI, 58-117.

Webster. P.V. 1976 Severn Valley ware: a preliminary study. Transactions of the Bristol and Gloucs Archaeological Society 94, 18-46.

Webster, P.V. 1982 Romano-British Coarse Pottery in North-West England – an Introduction. Lancashire Archaeological Journal 2, 13-31.

Webster, P.V. 1991 Pottery supply to the Roman north-west. Journal of Roman Pottery Studies 4, 11-18.

Webster, P.V. 1992 The Coarse Pottery. In Hinchcliffe, J. and Williams, J.H. 1992 Roman Warrington, excavations at Wilderspool 1966-9 and 1976. Brigantia Monograph 2, 42-78 and 124-150.

Webster, P.V. 1993a The Post-Fortress Coarsewares. In W.H. Manning Report on the Excavations at Usk 1965-76. Cardiff, 227-357

Webster, P.V. 1993b The coarse pottery. In P.J. Casey and J.L. Davies with J. Evans 1993. Excavations at Segontium (Caernarfon) Roman Fort 1975-1997. CBA Res Rep 90, 250-309

Williams, D. F. and Peacock, D. P. S. (1983) “The importation of olive-oil into Roman Britain”, in J. M. Blazquez and J Remesal (eds.), Produccion Y comercio del Aceite en la Antiquedad. Il Congresso, Madrid, 263-280.

Willis, S 2005 Samian pottery, a resource for the study of Roman Britain and beyond: the results of the English Heritage funded samian project. An E-monograph, Internet Archaeology 17(http://intarch.ac.uk/journal/issue17/willis_toc.html)

The fabric of the pottery was first examined by eye and sorted into fabric groups on the basis of colour, hardness, feel, fracture, inclusions and manufacturing technique.  A sample of the sherds was further examined under an x30 binocular microscope to verify these divisions.  The size of the sample was as large as was felt necessary for each fabric group.  The fabrics codes are hierarchical in character.  The first one or two letters denotes the general fabric group, as in GR = grey ware, the second coarseness, as in GRA = fine grey ware, whilst the numbers indicate further subdivisions based on characteristics of the fabrics.  Reference is made to the National Fabric Collection (NFC) where relevant (Tomber & Dore 1998) and common ware names are given where known.  In the case of well-known traded wares, the NFC code is not supplemented by detailed descriptions.  The range of forms in each fabric group is indicated.

Colour: narrative description only

Hardness:  after Peacock 1977
soft – can be scratched by finger nail
hard – can be scratched with penknife blade
very hard – cannot be scratched

Feel: tactile qualities
smooth – no irregularities
rough  – irregularities can be felt
sandy  – grains can be felt across the surface
leathery – smoothed surface like polished leather
soapy  – smooth feel like soap

Fracture: visual texture of fresh break, after Orton 1980.
smooth – flat or slightly curved with no visible irregularities
irregular – medium, fairly widely spaced irregularities
finely irregular – small, fairly closely spaced irregularities
laminar – stepped effect
hackly – large and generally angular irregularities

Inclusions:

Type:  after Peacock 1977
Frequency: indicated on a 4-point scale – abundant, moderate, sparse and rare where abundant is a break packed with an inclusion and rare is a break with only one or two of an inclusion.

Sorting:  after Orton 1980

Shape: angular – convex shape, sharp corners
subangular – convex shape, rounded corners
rounded – convex shape no corners
platey – flat

Size: subvisible – only just visible at x30 and too small to measure
fine – 0.1-0.25mm
medium – 0.25-0.5
coarse – 0.5-1mm
very coarse – over 1mm

Reduced wares

BB1 Black burnished ware 1.  As Tomber and Dore 1997 BB1 DOR

The principal vessel types obtained in BB1 were, as usual, necked jars and flat-rim bowls and dishes of Hadrianic-early Antonine type.  To these may be added a smaller number of neckless, everted-rim jars, plain- and grooved-rim dishes, grooved, flat-rim bowls/dishes, bead and flanged bowls and lids. 36% of the necked jars had burnished wavy lines on their necks, a feature going out of use around the middle of the second century.  This is substantially less than at the Fairclough site where 61% of the jars had wavy line burnish on the neck and this characteristic points towards a later date range for the site.  Intersecting arcs and chevron burnish on the bowls and dishes were restricted to c 2% of the vessels, plain-rim dishes. These motifs gradually overtook the cross hatched burnish on BB1 bowls and dishes during the late second and early third century and this small percentage indicate little activity at this time on the site.  This is supported by the small numbers of grooved, flat-rim or flanged bowls (one example each) and the necked jars with more everted rims (one example) characteristic of the late second century.    Small jars, similar in form to the necked jars, were also present as were the globular neckless jars, both groups typical of the Hadrianic-early Antonine period.  Lids with zigzag and intersecting loops burnished decoration were identified but no flagons were present. Five late splayed rim jars were represented dating to third century (Gillam 1976 nos 8 and 10, dated to after cAD220 by Bidwell and Holbrook 1991, 95).

BB2 black burnished ware category 2.  As Tomber and Dore 1998 BB2.  See

One jar, as Gillam 1970 no. 139 and Marsh and Tyers 1978 type IIF.5, dated to the later second century.  BB2 jars are uncommon in the region but were present in small numbers on sites to the north such as Lancaster and Ribchester.

GR

GRA: fine grey wares
GRA1 pale grey, sometimes the core is lighter, very hard with smooth feel and fracture.  Rare, fine quartz.

A fine fabric used to make neckless everted rim jars, including one rusticated jar, of the late first to early second century and a necked everted rim jar of similar date but probably more common in the late first century.  Two carinated, everted-rim bowls, one with an everted rim and one with a moulded rim were also found in this fabric.  The forms indicate this fabric was primarily used in the late first-early second century.  This was also the case in the Fairclough site. assemblage.

GRA1B as GRA1 but with grey surfaces and brown core.

This small group included examples of the neckless everted-rim jars made in GRA1, an everted rim bowl, a flanged hemi-spherical bowl and the body and handle stump of a flagon or jug, perhaps a “honey pot” type vessel.  A similar date range to group GRA1 is indicated. One of the rims of a neckless everted-rim jar was slightly distorted.

GRA2 Grey with paler core. Hard, smooth feel and fracture.  Moderate very fine, subvisible quartz (at x30).

Neckless everted-rim jars including rusticated jars, one necked, everted-rim jar, a ring-and-dot beaker, a narrow-necked jar with everted rim, a reeded-rim bowl, a campanulate bowl and a lid.  The campanulate bowl is similar to Terra Nigra bowls of Pre-Flavian to Flavian date and their fabric was borderline between GRB1 and GRA2. However on the Fairclough site excavations, this form was associated with Hadrianic-early Antonine pottery. Cf at York type BB (Monaghan 1998 no. 3935) dated Flavian to Hadrianic-early Antonine and at Warrington (Webster 1992, fig.  32 nos 246, 313 and at Whitchurch in a Flavian-Trajanic and a late second century group Jones and Webster 1969, nos 124 and 148) where a Gallo-Belgic derivation is noted with continuation into the late second century, Gillam 1970 nos 211-2).   The other vessels belong to the late first to early second century.  Several waster sherds were identified in this group and these included a misfired neckless jar with short everted rim, a distorted rusticated jar and five underfired bodysherds.

GRA4 Severn Valley type reduced ware with vesicles and black inclusions -charcoal.  Grey with reddish brown core.  Fairly hard and smooth fracture and feel, moderate very fine quartz and sparse fine red/brown and black inclusions.  Similar to SV reduced ware but probably not fine enough
Only bodysherds were identified in this group.  One sherd group of four sherds included flaked examples which may be wasters but such a condition could also result from exposure to high temperatures on a fire or pyre.

TN EGGS  brownish grey with dark grey/black surface.  Smooth, soft with slightly irregular fracture.  Sparse, medium, subrounded quartz.  Micaceous.  Eggshell ware.  GAB TN 2 Carinated beaker

GRA8  very pale grey, sometimes the core is lighter, with traces of dark grey self slip, very hard with smooth feel and fracture.  Rare, fine quartz and possibly more very fine quartz.  Rare coarse brown inclusions.  As GRA1 but lighter

Only two undiagnostic bodysherds.

GRB: medium sandy greywares

GRB1  Hard with fairly smooth feel if surface unabraded.  Sandy if abraded.  Sparse-moderate, well sorted medium subangular quartz as OAB1, sparse ill-sorted medium-fine rounded grey inclusions.  Darker grey slip/self-slip. Several campanulate bowls, including examples partially oxidised which may be wasters, circle and dot beakers, necked everted-rim jars, neckless everted rim jars, rusticated jars, lids and one narrow-necked jar with everted rim.

GRB2 Grey without obvious slip.  Sandy, hard with irregular fracture and moderate-abundant well-sorted, medium, subangular quartz.  Tends to feel coarser than GRB1.
One reeded-rim bowl, neckless everted rim jars and necked everted rim jars, rusticated jars, rilled jars, ring-necked flagon, narrow-necked everted-rim jar and lids.  Wasters with overfired, distorted, misfired and bubbled characteristics included jar bodysherds, part of a ring-necked flagon, a necked everted-rim jar and a narrow-necked everted rim jar.  The vessels range from the late first to early second century in date.

GRB3 Grey without obvious slip with brown core or margins.  Sandy, hard with irregular fracture and moderate-abundant well-sorted, medium, subangular quartz.  Tends to feel coarser than GRB1.
Lid, narrow-mouthed jar with everted rim, roughcast beaker, constricted-mouth jars with zones of burnished wavy line or vertical line decoration, a flange and a carinated body, both probably from bowls.

GRB5 Hard smooth grey fabric with brown core.  Moderate well-sorted rounded medium quartz.  Micaceous surface.
Three sherds, one from a narrow-mouthed jar with rebated rim.

GRB8 light grey hard with rough feel and irregular fracture.  Sparse, medium, subangular quartz and sparse, rounded medium brown inclusions
Hemispherical bowls with bead rim copying samian form 37, a sherd with barbotine dots and a necked jar with everted rim.

GRB10 dark grey/ black, often with brownish core or margin, fairly smooth (not sandy or powdery), hard with irregular fracture.  Moderate, well-sorted, medium, subrounded quartz and sparse mica.  This is similar to GRA1B but has a rather leathery feel that distinguishes it.
One small bodysherd may be in this fabric

GRB11 Light grey with greyish white core.  Hard, smooth with irregular fracture.  Like GRA8 but coarser.  Sparse, medium. Subrounded well-sorted quartz and sparse, medium rounded grey inclusions
Seven sherds were possibly in this ware.

GRB12 grey with brown margins and grey core.  Hard, quite smooth feel and irregular fracture.  Sparse to moderate, medium, subrounded quartz, sparse, ill-sorted fine to coarse, subangular grey and cream inclusions (non-reactive) – siltstones or clay pellets, possibly some grog.  The fabric has some vesicles.  Perhaps related to group G.

One bodysherd.

GRB13 grey with brown margins and grey core.  Hard, sandy feel and irregular fracture.  Moderate, well-sorted, medium, subangular quartz, sparse, medium rounded brown inclusions, iron oxides, and rare fine white inclusions. Possibly a variant of GRB1 and 2

Narrow mouthed jar with everted rim.

GRC: coarse grey ware

GRC1 Grey hard with gritty feel and hackly fracture.  Abundant, well-sorted, medium-coarse sub rounded quartz
Bodysherds and one neckless jar with everted rim of late first-early second century date.

GRC3 Dark grey with slightly grey core.  Hard with smooth feel and hackly fracture.  Abundant well-sorted medium subrounded quartz.  Like GRC1 but finer quartz and fracture looks similar to BB1 in texture. But less quartz and like GRC2 but for colour
Undiagnostic sherds.

GRC4  light grey with brown inner margin.  Hard, smooth with hackly fracture. Abundant, ill-sorted, medium to coarse, subrounded quartz .  This could be variant of Cheshire Plains grey ware
One rim sherd from a wide-mouthed jar with everted rim and one sherd from an unusual beaker with long neck, plain rim and bulbous body.

GRC5 grey, very hard and granular with hackly fracture.  Abundant, well-sorted medium/coarse, subangular quartz.

Bodysherds

GRC6 grey with brown core.  Hard, fairly smooth with irregular fracture.  Moderate, ill-sorted, fine to coarse, subrounded quartz.
Chamfered bowl or dish and narrow-necked jar with everted rim.

O Oxidised wares

OAA: fine oxidised ware

OAA1 Cheshire Plain fine medium orange. Soft with powdery/sandy feel and smooth fracture.  Sparse, well-sorted, fine quartz and sparse ill-sorted fine to medium, rounded red brown inclusions
Neckless, everted-rim jars, a lid and cupped rim carinated bowl.  Some vessels in this group may be Severn Valley ware and these included narrow-mouthed jars with wedge-shaped everted and bifid rims, a bowl Webster 1976 type 50 and a vessel with straight side, flat rim and very large diameter of unparalleled form.

OAA2 Medium orange. Soft with powdery/sandy feel and irregular fracture.  Common, well-sorted, fine quartz and sparse ill-sorted fine to medium, rounded red brown inclusions.  As OAA2 but more quartz.
Rouletted beakers, bifid rim narrow-mouthed jars, and wedge-shaped everted rim wide-mouthed jars.
OAA4 orange, smooth with very smooth fracture. Sparse, ill-sorted fine to medium, subrounded quartz. with sparse medium black inclusions – possibly fine charcoal-tempered SV.  Micaceous
All body or base sherds.  One carinated beaker or bowl and one narrow necked jar represented.

OAB: medium sandy oxidised wares

OAB1 Cheshire Plain medium Orange, hard to soft with rather sandy feel and quite smooth fracture. Sparse-moderate, ill-sorted medium to coarse subangular quartz, sparse, ill-sorted, rounded red/brown and grey inclusions
Samian form 37 copies including one with rouletted decoration and a second with traces of possible mica-dusting, two flanged, hemi-spherical bowls, a ring-necked flagon and a honey pot, a neckless, everted-rim jar, a narrow necked jar with bifid everted rim and one with wedge-shaped everted rim and a roughcast beaker, probably originally colour-coated.  Bodysherds with acute lattice burnish and cordons were also present, perhaps from narrow-necked jars.

OAB2 orange, hard with sandy feel and hackly fracture.  Abundant well-sorted, medium, subrounded quartz, sparse, medium, rounded red/brown inclusions.  Sandier than most Cheshire Plain ware.  More like texture of BB1 or FLA4.
Body sherds and one everted rim from a wide-mouthed jar.

OAB4 Fairly pale orange with buff core.  Soft with powdery feel and irregular fracture Sparse, medium subrounded quartz, moderate ill-sorted fine to medium rounded and elongated voids and sparse ill-sorted rounded white inclusions.  Compares well with some SV ware.
Everted rim jug with handle

OAB5 Brownish red.  Sandy feel and irregular fracture.  Fairly hard. Abundant medium, well sorted quartz and sparse medium well sorted black and brown inclusions.  Some of black may be charcoal.  Colour is similar to SV but sandy feel is not.
Grooved-rim dish, flagon neck, rouletted sherd and samian form 37 copy.

OAB6 Hard, smooth pink fabric with cream/buff core.  Irregular fracture.  Moderate, well-sorted subrounded quartz and sparse, medium, rounded red/brown ferruginous inclusions, rare coarse rounded black inclusions
One narrow necked jar bodysherd.

OAB7
One bodysherd.

OAC1 orange hard with gritty feel and hackly fracture.  Abundant, well-sorted, medium-coarse sub rounded quartz
16 body and base sherds.
OBA1 = OAA1 but buff
Short everted rim jar
OBA2 = OAA2 but buff
Bodysherds and lid.
OBB1 as OAB1 but buff
Bead-rim narrow-necked jar, rouletted beaker and campanulate bowl.
OBB2 buff with rough feel and irregular fracture.  Sparse-moderate ill-sorted medium subangular quartz, sparse, ill-sorted, angular and elongated vesicles, rare ill-sorted rounded brown inclusions.
One bodysherd
OBC as OAC
One bodysherd

SV Severn Valley type wares

SV1 Severn Valley ware. Reddish brown with virtually inclusionless matrix. Sparse fine quartz.  Micaceous.
Two everted-rim, wide-mouthed jars

SV2 Severn Valley ware with voids.  Orange with grey core.  Soft but fairly smooth. Irregular fracture.  Moderate ill-sorted elongated voids, fine to coarse, visible on surface.  Sparse mica and black inclusions.  Texture suggests subvisible quartz
A narrow-mouthed jar with everted rim.

SV3 Severn Valley ware with charcoal
One bodysherd.

DBY Derbyshire ware

NFC DBY COR

FL White and white-slipped wares

FLA1 White or off white.  Probably with darker cream slip.  Fairly hard with smooth feel and fracture.  Very few inclusions, rare quartz and rounded red/brown. FLA1P pinkish.
Flagon sherds and one possible beaker bodysherd. Rim sherd from beaker with painted arcs.

FLA2 White Hard, smooth with irregular fracture Moderate, well-sorted, medium/fine, subrounded quartz and sparse, ill-sorted medium to fine red/brown inclusions.  FLA2P – pinkish.
Ring-necked flagons and one flagon with flat out bent rim and one neck cordon.  Several Gauloise 4 type rims and one miniature honeypot.

FLA3 Yellowish cream with darker slip firing yellow-buff.  Hard and smooth, slightly grainy on inside.  Irregular fracture.  Abundant, well-sorted, fine, subrounded quartz and sparse to moderate, ill-sorted, rounded medium to fine red inclusions.

FLA4 Brockley Hill flagon/amphora ware

FLA7 Cream sometimes with grey core.  Hard with sandy feel and irregular fracture. Sparse ill-sorted, medium to fine crystalline quartz and moderate, ill sorted fine-medium rounded grey and brown inclusions
Ring-necked flagons and bodysherds including overfired examples and possible wasters

FLA10 Hard, smooth drab buff with grey core.  Irregular fracture.  Sparse quartz and coarse rounded orange inclusions.  Micaceous surfaces.
Flagon neck and a flagon handle.

FLA13 dirty cream with grey surfaces.  Hard and with lumpy feel and irregular fracture.  Sparse, subangular, medium quartz, rare, medium to coarse, rounded orange/brown inclusions.
Bodysherds

FLA14 dirty cream surface and light grey core.  Like GRC5.  Very hard and granular with hackly fracture.  Abundant, well-sorted medium/coarse, subangular quartz.  Possibly a St Albans fabric.

Bodysherds
FLB1 Orange, quite pale with white slip.  Soft with smooth or sandy/powdery feel and slightly irregular fracture.  Sparse well-sorted subangular quartz and rare rounded grey inclusions
Samian form 29 copy with rouletting, bead-rim lid or dish, tazze, ring-necked flagons, cupped-rim flagon, flagons with outbent flat rim and cordon on neck and everted rim flagons.  Several misfired and burnt, possibly wasters.

FLB2 Red-orange.  B=brownish red. Hard with sandy feel and irregular fracture.  Traces of white slip.  Moderate well-sorted medium, subangular quartz, sparse, coarse, rounded grey inclusions
Flagon body and base sherds, some burnt possible waster.
FLB3 fine hard brownish orange with grey core. Smooth feel and fracture.  Rare medium quartz and orange inclusions.  Micaceous with dirty white slip
Bodysherd.

F Fine wares

GMG1 as GRA1B with mica gilt

Campanulate bowls.

MG2 orange with traces of mica gilt. Fairly soft and smooth.  Irregular fracture Common, well-sorted, fine quartz and sparse ill-sorted fine to medium, rounded, red brown inclusions
Carinated bowl sherds and a carinated bowl with bell shaped rim.

MG3 Orange with traces of mica gilt.  Fairly hard with slightly sandy feel.  Orange with grey core.  Moderate, ill-sorted fine to medium subrounded quartz and sparse rounded red/brown inclusions.  Micaceous.  Coarser than MG2 but similar.  Like OAB1
Folded beaker sherds and short, everted rim neckless beaker or small jar

MG9 as OAB5 but with mica dusting.  Bodysherd only
MG10 light brown with buff/grey core with traces of mica slip.  Hard with smooth feel and fracture.  Sparse, ill-sorted, fine to coarse, subangular quartz
Reeded rim bowl.

Glazed ware

CNG GL1   Small glazed ware bodysherds, compares with Central Gaulish glazed ware 1 NFC CNG GL1 See http://www.worcestershireceramics.org/hms/object.php?type=fabrics&id=107
Bodysherd.

Colour-coated wares

Trier Tomber and Dore 1990 MOS BS.  Folded beaker.

CC1 as OBA1 with brown slip rough cast ware
Folded and bag rough cast beakers.

CC2 RHC ware Orange with brown coat.  Hard, smooth fabric with fairly smooth fracture.  Sparse, ill-sorted fine quartz and ill sorted, medium to fine red brown inclusions
Rough cast beakers

CC4 Cream with brown CC.  As CC2 but cream-buff. Hard, smooth fabric with fairly smooth fracture.  Sparse, ill-sorted fine quartz and ill sorted, medium to fine red brown inclusions
Rough cast beakers

CC 1 appears to be a local fabric within the Cheshire plain whereas CC2 and 4 are likely to be traded wares.  Symonds has discussed the difficulties of sourcing these wares without chemical and petrological examination (1990) and sources in the Argonne, Sinzig and Colchester are a possibility as well as other areas in Gaul.

CC7 orange with orange colour coat.  As OAB1 with slightly darker orange colour coat.  Local?

Bowl fragment.

The CC fabrics were overwhelmingly used to make rough cast beakers and fabric CC1 compares very well with Wilderspool roughcast beakers. CC2 was probably an Argonne import and CC4 may also be an imported fabric.  Only one sherd of CC7 was identified and this was a bodysherd, probably from a bowl.

KOL CC: Cologne colour-coated ware.  Tomber and Dore 1990 KOL CC.  Identified as likely to be from Cologne rather than Central Gaul.

.
NV Nene Valley colour coated ware Tomber and Dore 1990 LNV CC NV1 = white/cream paste, NV2= orange/brown paste.  Sherds of an indented beaker and a rouletted beaker.

M Mortaria

White/cream fabrics

MH  Mancetter-Hartshill

Fabric: Fine-textured, cream fabric, varying from soft to very hard, sometimes with pink core; self-coloured or with a self-coloured slip.  Inclusions usually moderate, smallish, transparent and translucent white and pinkish quartz with sparse opaque orange-brown and rarely blackish fragments; rarely white clay pellets (or re-fired pottery).  The range in fabric is, in fact, quite wide, from that with virtually no inclusions to fabrics with a fair quantity and fabrics with hard, ill-sorted black inclusions.

The trituration grit after AD130-140 consisted of hard red-brown and/or hard blackish material (probably re-fired pottery fragments), with only very rare quartz fragments.  This grit is easy to recognize, but earlier mortaria usually have a more mixed trituration grit in which quartz and sandstone are normal components and some early second-century mortaria seem to have entirely quartz trituration grit.  The Mancetter-Hartshill fabrics of AD100-130 are variable in texture and tempering.  It is also at this period when there is difficulty in distinguishing Mancetter-Hartshill, Little Chester and Wroxeter.  This can be complicated by the fact that a few of the same potters appear to have been active at both M-H and Little Chester, but there the evidence indicates that Little Chester never developed the extensive markets which became a norm for the Mancetter-Hartshill workshops.

MVER Verulamium region

Kilns are known at Bricket Wood, Brockley Hill, Radlett and Verulamium, but unless the specific kiln-site is known or suspected, the term ‘Verulamium region’ is used. (Tomber and Dore 1998, 154-5)
Fabric: a granular, usually greyish-cream fabric sometimes with pink core; often with cream to buff-cream slip; the fabric can be orange-brown but still granular. The texture was obtained by the presence or addition of a vast amount of well-sorted, small quartz inclusions, possibly with a little flint and very sparse red-brown material. The normal trituration grit consists mostly of flint with rare red-brown material and quartz.

MWROX  Wroxeter white ware mortaria

Wroxeter (location of kilns unknown, but serving Wroxeter as their primary market).  The floruit of these potteries fell within the period AD80-150/160, with a minimal later Antonine production which appears to have reached only sites in the West Midlands (Carlisle Mill mortaria, Hartley in prep).

Fabric: cream/white, usually hard, but can become soft in adverse conditions, often with a buff-cream slip.  Inclusions: moderate to fairly frequent, ill-sorted quartz, red-brown and opaque black material.  Trituration grit: mainly quartz, quartz sandstone, red-brown sandstone, black rock.

For a fuller description of the range produced in these potteries see James 2003, 245, Fabrics 8-12; also see Tomber and Dore 1998, 179.

Orange fabrics

MOWS1/MOAB1   Wilderspool
Fabric: orange with sandy texture, sometimes with grey core; fairly soft with irregular fracture.  MOWS1 same as MOAB1 but has white slip, often only traces surviving. Inclusions: moderate, well-sorted medium, subrounded quartz, and sparse medium, rounded grey/black.
Trituration grit: moderate, grits 1.5-5mm quartz (some polycrystalline), red/brown sandstone, igneous? grits and brown rounded grits.

MOWS2 Probably Wilderspool
Fabric: paler orange than MOWS 1 and 3, sandy fabric, fairly soft with irregular fracture.  White slip, often only traces surviving.  Inclusions: moderate, well-sorted medium, subrounded quartz, and sparse medium, rounded grey/black inclusions.
Trituration grit: sparse on all examples. 1.5-2mm quartz, sandstone, red/brown rounded grits and grey stone grits.

MOWS8 Fine probably Wilderspool
Fabric: Powdery, fine-textured, orange-brown fabric with pink core and traces of cream slip.  Inclusions: very moderate, sporadic ill-sorted, quartz with some black material.  Trituration grit: small to medium, quartz, pale and red-brown sandstone, quartz sandstone and rare cream fragments (?clay pellets). As Manchester fabric 17 (Hartley and Leary 2007)

MOWS9 Cheshire Plain or Wroxeter
Bright orange with lighter core.  Thick white slip.  Soft and powdery.  Inclusions: moderate, well-sorted fine to medium, subrounded quartz.  Trituration grits: moderate polycrystalline quartz 1-2m, rare 5mm.

MOWS10 Cheshire Plain
Fabric: orange with grey core with white slip.  Moderate medium, rounded quartz, buff clay pellets and brown ferric inclusions.
Trituration grits: abundant, 4-5mm quartz and red/brown sandstone and grey inclusions.  The grits are rounded

MOAB  Unknown source, probably Cheshire Plains
Medium sandy orange wares of uncertain source.

Red-slip fabrics

MRS1  Wilderspool

Fabric: orange, fairly soft.  With Rhaetian red slip, usually extending over the flange and the internal cavity below the bead.
Inclusions: sparse, well-sorted fine, subrounded quartz, and sparse medium, rounded grey/black inclusions.  Slightly micaceous.
Trituration grit: where surviving well, trituration grits are abundant 1.5-2mm quartz, sandstone, red/brown rounded grits and grey stone grits

Imports

M. GAL  Northern France: Oise/Somme area mortarium.  There is sufficient evidence in the mass of sherds, the presence of several stamps of C Iulius Priscus and some wasters to show that this fabric was being produced at Noyon in Oise, but other potteries producing a similar fabric also existed elsewhere in the Oise/Somme area of northern France (Hartley 1998, 201; see also Tomber and Dore 1998, 75-76).

Fabric: self-coloured, yellowish-cream fabric, sometimes with pink core; fabric softer, more powdery and more open in texture than Fabric 2.  Inclusions: moderate, tiny to small, quartz, red-brown and black material.  Trituration grit: usually flint, quartz with occasional red-brown.  , none extant on this example
A Amphora

Dr 20 Dressel 20 one rim sherd. Martin-Kilcher 1987 no. 89 dated cAD 110-150
Gal AMP Gallic amphora types, Tomber and Dore 1997 GAL AM.  Where identifiable these were from Narbonnensian Gauloise 4 amphorae.
AMP VER Verulamium amphora. Bodysherds are not always distinguishable from FLA4 flagons and the number of sherds are likely to be more than indicated.  Tomber and Dore 1997 VER WH.

G Grog-tempered wares

G2 Hard pinkish buff with grey core.  Bumpy feel and irregular fracture. Sparse medium quartz and sparse to moderate coarse grey, brown and white inclusions – grog?
Early pink grog type fabric. Jar bodysherds

G4 orange with grey core.  Hard, slightly sandy feel.  Sparse, medium, subrounded quartz and rare, coarse, rounded grey and buff clay pellets/grog.
Storage jar.

G5 orange with grey core. Smooth with irregular fracture.  Sparse, medium, subrounded quartz, ill-sorted, coarse to medium, rounded grog and rare black organics.
Large storage or narrow-necked jar

G2,G4 and G5 may all be variants of a single ware elated to early pink grogged ware from the south and west Midlands known around Towcester (Booth and Green 1989) and similar to wares at Metchley (Hancocks 2004 fabric 10 and 11, I am grateful to Jane Evans for help with these fabrics)

MALV   Malvernian ware. Tomber and Dore 1997 MAL RE A.  Small scraps only.

CT Shell-tempered wares

CTA1 buff with grey core. Hard, vesicular fabric with fairly smooth, soapy feel.  Abundant fairly well-sorted medium platey vesicles and white inclusions (shell).  Similar to fabric in Northamptonshire. Storage jar with squared bead rim.

CTA2  late shelly ware.  CTA2OX were oxidised.  Tomber and Dore 1997 HAR SH Harrold? Late shelly wares with triangular undercut rims and everted rims.

THE SAMIAN WARE
Margaret Ward, MA MIFA

METHODOLOGY

Each sherd was catalogued on a Microsoft Access database. Full details of sherds and numbers of vessels, including weights and measurements of rims for EVES (Estimated Vessel Equivalents) were recorded and are stored in the archive.

The products of the samian industry were highly standardised, and their study and publication have developed along standardised lines. The standard terminology is employed here.

The abbreviations SG, CG and EG denote vessels which were produced in South Gaulish, Central Gaulish and East Gaulish workshops. For other abbreviations such as Cala Culip, Oswald, S & S, etc see the bibliography. Hartley and Dickinson’s numbering system for their forthcoming index of potters’ stamps on samian ware has been adopted, using Roman numerals in lower case following the potter’s name; Roman numerals in upper case denote the numbering system (usually of styles) employed in Stanfield and Simpson’s work (S & S) and followed by Rogers (1974 and 1999). Vessel types are generally Dragendorff’s form numbers unless otherwise stated; for other terminology, see Webster 1996.

A dish from Central Gaul, found in layer 1282, Trench 12

Date-ranges such as c AD 70-110 or c 120-200, have been given rather than the use of epochs (e.g. Flavian-Trajanic or Hadrianic-Antonine). These should not be thought more precise than the use of epochs. They are employed to facilitate computer analysis of the material. Tables and a histogram have been provided in order to summarise the forms, fabrics and date-ranges of the material according to numbers of vessels (see Tables 2, 4, 6). Although measurements for EVES were recorded, EVES have been so little employed in samian reports that comparisons would be impossible (see Willis 1998, 94). Here, maximum numbers of vessels are given as the estimation of minimum numbers is considered misleading, especially in the case of small fragments of the same date, origin and form. Willis (2005, 5.2.2) has noted that, although this method has a potential problem of multiple counting of sherds from the same vessel in more than one context, multiple counting should arise primarily amongst the plain wares, since most moulded bowls have distinctive decoration. At any rate, the provision of measurements for EVES in the archive should facilitate the integration of the samian ware into the pottery assemblage as a whole.

The samian assemblage is summarized first by phase; details of individual vessels are listed by trench and phase; finally, the assemblage is summarized in its entirety.

Click on the sections

Samian Vessels Summarised by Phase

PHASE 4

A single vessel:
Tr 1 (183) One SG moulded bowl form 37, c AD 75-90 (Catalogue No 1)

PHASE 5

A single sherd:
Tr 1 (144). One SG moulded bowl form 29 fragment, c AD 65/70-85 (Catalogue No 2)

PHASE 5U

Fig 1. Floating bar diagram showing date ranges of vessels in Phase 5u contexts

(click to enlarge)

FormSGCGEGTotal
 18R or 18/31R1  1
79 1 1
30 1 1
3731 4
Indeterminate14 5
Total570       12

Fig 2. Table of samian forms found in Phase 5u contexts

Fig 3. Floating bar diagram showing date ranges of vessels in Phase 7 contexts

FormSGCGEGTotal
182  2
18/31 4 4
18/31R 4 4
18R6  6
2733 6
291  1
29 or 371  1
301  1
331  1
351  1
36 1 1
3763 9
Indeterminate94 13
Total
3119050

Fig 4. Table of samian forms found in Phase 7 contexts

Fig 5. Floating bar diagram showing date ranges of vessels in Phase 7u contexts

FormSGCGEGTotal
18R3  3
18 or 18R 1 1
18/31 1 1
361  1
372  2
indeterminate1  1
Total
7209

Fig 6. Table of forms found in Phase 7u contexts

Fig 7.  Floating bar diagram showing date ranges of vessels in Phase 8u contexts

FormSGCGEGTotal
15/17 or 181  1
271  1
37 1 1
Indeterminate11 2
Total3205

Fig 8. Table of forms found in Phase 8u contexts

Fig 9.  Floating bar diagram showing date ranges of vessels in Phase 9m contexts

FormSGCGEGTotal
18 or 18R1  1
18R or 18/31R1  1
18/31 1 1
18/31R 3 3
18/31R or 31R 3 3
2744 8
33 1 1
361  1
3758 13
38 4 4
79 1 1
Indeterminate12 3
Total
1327040

Fig 10.  Table of forms found in Phase 9m contexts

PHASE 10

A single sherd:
Tr 1 (108) One CG dish form 18/31R, c A D 120-160, burnt almost black. Weight 9 g

PHASE 11

2 rimsherds, both 2% of the rim, in Tr 1 (117): SG moulded bowl form 37 c AD 70-110, weight 3g and an EG sherd of indeterminate form c AD 160-250 (Trier?), weight 4g

Fig 11. Floating bar diagram showing date ranges of vessels found in Phase 12 contexts

FormSGCGEGTotal
18 or 18R1  1
18/31 or 31 1 1
31 1 1
31R group  11
2725 7
33 2 2
3611 2
3726 8
38 1 1
Lud Tx 1 1
Indeterminate413 17
Total
1031142

Fig 12. Table of forms found in Phase 12 contexts

PHASE 14

A single fragment:
Tr 8 (805) CG indeterminate form, c  AD 120-200, a flake weighing less than 1 g

FormSGCGEGTotal
Curle 112  2
15/172  2
182  2
18 or 18R1  1
18 or 18/312  2
18R2  2
18R or 18/31R1  1
18/31 1 1
18/31 or 18/31R 1 1
18/31 or 31 1 1
18/31R 2 2
18/31R or 31R 4 4
31R group  11
272  2
3311 2
291  1
30 1 1
3777115
38 2 2
indeterminate415322
Total
2735567

Fig 13. Table of forms; unstratified material from all areas (including Catalogue Nos 4, 8 and 9 above)

Detailed Catalogue of Selected Vessels
The individual vessels that are detailed below have been selected according to their intrinsic interest or significance to the site. Entries are listed in order of trench, phase and context, then by fabric, form and date. Amongst the moulded ware, figure-types as they appear on bowls are frequently smaller than Oswald’s illustrated types (see Dannell et al 1998, 71 and 87). Where this specific discrepancy occurs, it is not noted in the catalogue.

TRENCH 1

Phase 4
A single vessel:
(183)
1. South Gaulish moulded bowl form 37. S-shaped godroons (cf Dzwiza 2004, Abb 96. F4.3 at Pompeii) are set above a speckled boar (cf Nieto and Puig 2001, type Bc.8?) running over stalks. The basal wreath consisted of small but indistinct leaf-and-bud motifs. S-shaped godroons and animals running over stalks occur on a bowl form 37 at Cala Culip (Nieto and Puig 2001, 389 no 479) and a boar runs over stalks on other bowls there (ibidem, 404-405 nos 521-523). A date c AD 75-90 may be proposed for the Middlewich bowl. Two adjoining wallsherds, weight 24 g.

Phase 5
A single sherd:
(144)
2. South Gaulish moulded bowl form 29. A small fragment only from the beaded middle and lower zone with the edge only of a leaf, from a vessel produced in the period c AD 65-85 and most probably a Flavian product. Weight 2 g.

Phase 8
A single sherd:
(126)
3. Central Gaulish moulded bowl form 37. Ovolo above a guideline (usually said to be Rogers B52, but this bears greater similarities to B233; cf Rogers 1999, pl 89.8); below it, panels included a double medallion containing a smaller one (Rogers E17). All these motifs occur on a bowl from Corbridge (S & S pl 154.16), in the Pugnus-Secundus style.  This “Secundus-ish” style is dated c AD 150-170 according to Rogers (1999, 206, 232) and c 150-180 according to the forthcoming Leeds index of potters’ stamps (the late Brian Hartley, pers comm).  Rimsherd (2%), weight 14 g.

U/S
4. East Gaulish moulded bowl form 37. The decoration included, here, a large rosette (Ricken-Fischer O 37) in a plain medallion. This rosette was used at Rheinzabern by several potters from Ianus ii onwards. The general appearance of the sherd and it decorative composition may suggest a later potter such as Lupus (iv in the Leeds Index); see Ricken 1948, Taf 157.5-6. Lupus was an associate of Iulius and their association has been ascribed a date in the earlier-third century (c AD 210-235 for a piece in their style embedded in the late fort wall at Piercebridge; Ward 2008, D9, 15 no 2, Fig. D9.16 no. 1482008, forthcoming). Iulius (I) bowls occur in the Butzbach Steinkastell and at Pfünz as well as in a waster group at Rheinzabern, currently dated c 235-245 (Bittner 1986, 249-252 and in the second ‘shipment’ group at New Fresh Wharf, also dated c 235-245; see Bird 1986, 2.106).  A date in the range c AD 200-240 should cover all the possibilities for the production date of this bowl. Weight 14 g.

TRENCH 4

Phase 7
None of the samian vessels represented could be dated firmly any later than the Hadrianic period.

(402)
5. South Gaulish moulded bowl form 37.  A single sherd showing that distinctive ovolo with a long trident tip turned left which was used by a group of potters including Albanus iii, Amandus and Coii Bass[    Below, a pair of  gladiators (Oswald type 1007 and 1008). The same gladiators occurred on a bowl from the Middlewich Faircloughs Homes site (Ward 2008, samian catalogue no 59), but that was produced earlier in the Flavian period and the gladiators on the Community Project site have degenerated. The main activity of the Albanus iii group of potters is considered to have continued from the 80s AD into the Trajanic period: c AD  85-110 perhaps. Weight 17 g.

(419)
6. Central Gaulish moulded bowl form 37 in an excellent ware. Above the basal line of the decoration lay a small leaf (Rogers H146) and a finely modelled mask (Oswald type 1329), used by the Lezoux potter Butrio. The same mask occurred on a bowl in the style of Butrio from the Faircloughs Homes site  (Ward 2008, in print, samian catalogue no 75). c AD 120-145.  Weight 2 g.

TRENCH 9

Phase 7
(908)
7. Central Gaulish moulded bowl form 37. Both sherds display the figure of Vulcan (Oswald 66) in panelling bordered by astragali (Rogers A9) infilled with tufts derived from the leaf or plume Rogers J178; broken at a cleat-type repair hole. This is the early style of Cinnamus or an associate working in his group in the period c AD 135-160; Vulcan is attested for Cerialis; cf S & S pl 164, Cerialis no 3; Simpson and Rogers 1969, 6 no 13, with the plume motifs. Two sherds: the rimsherd was unstratified in Tr 9; diameter 20 cm (8%), weight 43 g.

U/S
8. Central Gaulish moulded bowl form 37, from Les Martres-de-Veyre. Badly blurred ovolo Rogers B37 above coarse wavy-line border and an arcade containing the indistinct head of a figure. Style of Igocatus (X-4), c AD 100-120. Rimsherd of diameter 20 cm (8%). Weight 19 g.

9. Central Gaulish moulded bowl form 37, with smeared and botched decoration. The ovolo is Rogers B231 (Cinnamus’s so-called ‘small bowl’ ovolo), poorly moulded here, above panelling that included a large caryatid (Oswald type 1207 or 1207A) and an erotic scene (Oswald  type H). This ovolo was used by various potters, including Cinnamus, Pugnus and the Large S Potter, potters who worked in the wide range c AD 125-180. This bowl looks likely to be Antonine and was most probably a product of Cinnamus’s firm in the period c AD  150-170. Weight 18 g.

TRENCH 12

Phase 7
(1284)
10. Central Gaulish moulded bowl form 37. Slightly indistinct ovolo (Rogers B47) above panelling that included a leafy festoon (Rogers F16) and (now abraded) figures: a caryatid (probably Oswald 1199) is set between a very large figure that must have overlapped the ovolo, and the front figure of an erotic group (Oswald type B). The motifs indicate the work of Criciro, who was active in the wide range c A D 135-170 but this bowl looks likely to have been produced in the late-Hadrianic or early-Antonine period (ie before c 160). Three adjoining sherds, rim diameter 20 cm (12%), weight 36 g.

Phase 7u
(1220)
11. South Gaulish moulded bowl form 37. A blurred stag (Nieto and Puig 2001, type Bb.18 or Bb.19) reclines between stylized, Germanus-type trees (op cit, nos 321-322) in which sits a large, indistinct bird as on Hofmann 1988, pl 16.125, Banassac. The Middlewich bowl appears to be a product of La Graufesenque probably in the period c 75-90. Weight 16 g; A second sherd from Phase 9m (1217) included the footring which was worn from use; weight 63 g.
Phase 8
(1210)
12. Central Gaulish moulded bowl form 37. The panelled decoration included a tripod (Rogers Q43), two small, crouching panthers (Oswald 1518 faces right) and the recurring figure of a small draped female (Oswald 939). The motifs point to the work of Cinnamus and Secundus; in either case the bowl was produced most probably in the period c AD 150-180. The footring is badly worn from use and an internal patch of wear probably represents intentional erasure of a graffito. The graffito had included a large cursive letter A that was incised in the lower wall/base but it has been partially erased.. Weight 81 g.

(1216)
13. Central Gaulish beaker form 72 with overall ‘cut-glass’ decoration, produced in the second half of the second century.  4 fragments and a 5 rimsherd of diameter 7 cm (20%); weight 12 g.

(1223)
14. South Gaulish indeterminate form. There is a small fragment of a basal stamp,  C[  or O[ or  ]O by a potter working at La Graufesenque within the range c AD 70-110,  weight 4 g.

15. Central Gaulish moulded bowl form 37. Ovolo (Rogers B7, but with a detailed rosette-tip to the tongue, above indistinct scrolls (probably Rogers M10 and M11, see Romeuf 2000, 333 no 5 and, with ovolo B7, 334 no 7). Infilling motifs: small animals including goats Oswald 1836, Rogers 1999, R.4016; birds (Oswald 2279 and 2315A) and cupids (Oswald 405 and 424). The bifid wreath consisted of rams’ horns (Rogers G370, indistinct here. This represents the work of Potter X-13 at Les Martres-de-Veyre; c AD 110-125. An unusual bowl at the Faircloughs Homes site (Ward 2008, samian catalogue no 35) probably displays the same ovolo and that bowl probably also represented X-13 rather than the Potter of the Rosette as identified by Terrisse (1968, pl 19.371). Seven pieces, constituting the complete profile of the vessel, whose footring shows wear from use. Rim diameter 21 cm (81%), weight 577 g.

16. Central Gaulish moulded bowl form 37. A fragment of a large, winding scroll with a large leaf (Rogers H58); H58 was used by the potter Attianus, c AD 125-145. Weight 18 g.

(1232)
17. South Gaulish indeterminate form, perhaps from the plain band of a moulded bowl form 37 and produced in the range c AD 70-110, but this is a mere fragment. It has been re-worked as a tiny counter of diameter 13mm; weight 1g.

18. Central Gaulish moulded bowl form 37, produced at some point in the range c AD 120-160. Rim of a very large bowl and an adjoining sherd: the plain band displays repair-work with round rivet-holes that retain their lead rivets; the exterior has been badly abraded and scored, perhaps accidentally, around the rivet-holes. Rim diameter 26 cm (12%), weight 55 g.

(1282)
19. South Gaulish cup form 27, produced in the range c A D 70-110. This wallsherd appears to have been cut down between the vessels curves: there were tool-marks that had evidently been made in the fabric before natural erosion occurred. Weight 12 g.

20. Central Gaulish dish form 18/31, produced at Lezoux c AD 120-145/150. Two pieces, one the complete profile of the vessel and the other an adjoining chip from the foot. This is vessel has been badly battered, apparently during use. The basal stamp has been abraded, probably scrubbed, away but may have begun or ended O[ or  ]O  The standing surface of the footring has been worn away totally during use, as also the rim and the external junction of the wall and base. The internal and external surfaces of the vessel are also badly chipped, pitted and scratched. The fabric is fairly soft and, even allowing for explosion out of small particles, small marks made through the surface gloss indicate short, sharp stabs by a sharp tool and there are occasional, tiny circular puncture marks. Whatever its final function may have been, this dish has clearly been treated badly and it can hardly have finished its life as fine tableware, Rim diameter 17 cm (38%), weight 176 g.

Samian Catalogue Number 20: Central Gaulish Dish

The evidence of the other three vessels in context (1282) may be significant. They were:

21. South Gaulish indeterminate form, c AD 70-110.  A small flake from the base or lower wall. Weight 2 g.

22. Central Gaulish dish form 18/31 c AD 120-150. The footring was worn from use and the fabric seems to have been slightly stained after breakage. Weight 43 g.

23. Central Gaulish flanged bowl form 38. Probably from les Martres-de-Veyre, but at any rate produced in the period c AD130-160. Rim and flange: both the top of the flange and the upper internal wall are scratched, possibly in use but this is not certain. Rim diameter 17cm (6 %), weight 87 g.

(1289)
24. South Gaulish cup form Ritterling 8. This form is almost exclusively pre-Flavian and this vessel is most likely to have been produced in the range c AD 55-70. The footring was very worn from use. Weight 20 g.

25. South Gaulish dish form 15/17 or 18. The basal stamp reads OF·CEN   This was a stamp of the potter, Censor i, who worked at La Graufesenque. Another of his stamps, die 3c, reading OFCEN (Polak 2000, pl. 7, C126) was found at the Fairclough Homes site, dated c AD 70-90 on form 18R. However, the item under discussion is more likely to represent Die 3b, reading OF·CEN and noted twice at Holt; see Dickinson in Ward 1998, 65 nos 6-7, where it was dated c AD 70-95. The footring, deeply grooved inside, was very worn from use; it again exhibits much scratching on top of the base, though this may have been accidental. It was also burnt. Weight 33 g.

Phase 8u
(1231)
26. South Gaulish cup form 27.  The basal stamp is battered but reads perhaps  IVL?·I with retrograde L? It is likely to represent a so-called ‘illiterate’ potter. The developed form of this cup with its heavy footring may suggest production in the period c AD 80-110. Complete profile of the vessel, whose footring was considerably worn in use. Rim diameter 14 cm (3%); weight 55 g.

27. Central Gaulish moulded bowl form 37 with a botched ovolo (Rogers B102) above figured panelling whose borders had a small rosette terminal. The main figure here is that of a triton, a sea-monster wielding what looks like a baseball bat here, was in fact a club (Oswald 19). B102 is recorded for Advocisus, the associated potters Priscus and Clemens, and Potter P-19; the triton was used by Priscus and Clemens and suggests their work at Lezoux in the period c AD 160-200. Rim of diameter 22 cm (7%), weight 32 g.

Phase 9m
(1217)
28. Central Gaulish dish form 18/31. Basal stamp DACO[MA]RI or DAGO[MA]RI by Dagomarus at Lezoux. This was one of those potters who moved from Les Martre-de-Veyre; another of his Lezoux stamps, Die 13a, was recorded in the Chester fortress at the Crook St 1973-4 excavations.  c AD 120/125-140. The footring was very worn from use and there is a fragment only of a graffito ]N or M[ incised below the base within the foot . Weight 81 g.

29. Central Gaulish cup form 33, most probably produced in the range c AD 120-160. The external wall of this sherd displays a fragment of graffito, that may have been erased. Weight 11 g.

29a   Central Gaulish moulded bowl form 37. The indistinct ovolo may well have been Rogers B144 rather than B143, above a horizontal astragaloid border A9 and panels including a small gladiator (Oswald 1059) in a single medallion and Victory (Oswald 819A). This probably represents the early style of the Cinnamus group; cf Simpson and Rogers 1969, 8 no 19, c AD 135-160. A rimsherd (3%), weight 17 g from the same bowl as a sherd in Phase 12 (1213), weighing 21 g.

Phase 12
(1204)
30. Central Gaulish indeterminate form, produced at some point in the range c AD  120-200. A badly battered flake from a basal sherd which was re-worked as a disc of diameter approximately 45mm, worn around the circumference. Weight 4 g.

(1212)
31. Central Gaulish moulded bowl form 37, produced at some point in the Antonine period (c AD 140-200). The heavy footring shows much wear from use on its standing surface. It was later hacked off from the main body of the vessel and shows wear not only inside the base but also below it inside the foot. This piece appears to have been re-used upside-down, presumably as a mixing-palette. Weight 69 g.

(1213)
32. Central Gaulish moulded bowl form 37. Large gladiators (Oswald 1001 and 1002) and a small figure (S & S 150, fig 18.12), as on a bowl from Holt (Grimes 1930, fig 45.117; S & S pl 76.32), in the style of the Large S Potter. Another (repaired) bowl in the style of this potter was found at the Faircloughs Homes site (Ward 2008, samian catalogue no 37. c AD 120-145. Two sherds including the rim, diameter 19 cm (4 %), weight 53 g.

Summary of the Samian Ware
There were 400 sherds in this collection, representing a maximum of 321 vessels, 6.88 estimated vessel equivalents (EVES), weight 4369 g. It will be helpful to make some comparison with the samian ware recovered from previous excavations at the neighbouring Faircloughs Homes site (925 sherds from a maximum of 633 vessels, 27.66 EVES; weight 17.23 kg). The Community Dig collection was in reasonably good condition, comprising sherds weighing a good average of 11 g, though this was considerably lower than at the Faircloughs Homes site (19 g). At the Community excavation, there were far fewer near-complete vessels: only four compared with 21 at the latter; two of the four were SG products and none of the four was produced later than c AD 150. There was also a large proportion of indeterminate fragments (29%).
The maximum of 83 moulded bowls constituted 27% of the collection, considerably less than at the Faircloughs Homes site (39%). 65 of the bowls retained at least some fragment of decoration and there was one beaker with decoration of the ‘cut-glass’ variety (Catalogue No 13). There were only four potters’ stamps, 1.2% compared with 4.9% at Faircloughs; however, this figure does not relate to the status of the site, but is likely to relate rather to its chronology, if it is the case that more potters were stamping more pots at certain periods (see Ward forthcoming).

The evidence of the samian ware suggests that occupation in this part of Middlewich began in the later first century and continued at a high level well into the Antonine period. The extreme shortage of late second-century samian on this site is highly significant. All the evidence of the samian ware points to reduction in occupation before c 160. The presence of six EG vessels, and one specifically dated within the earlier third century in particular, may be taken to reflect activity in the area in the third century.

Table 1. Absolute values of samian wares by maximum vessel numbers, sherd weight and estimated vessel equivalents (EVES)

Table 2. Relative quantities of samian by maximum vessel count, estimated vessel equivalent (EVES) and weight

Table 3. Faircloughs site. Relative quantities of samian by maximum vessel count, estimated vessel equivalent (EVES) and weight

Origin and date

A maximum of 139 vessels, forming 43% of the collection, originated in South Gaul, 175 vessels (55%) originated in Central Gaul and 7 vessels (2%) were from East Gaul. These figures are summarized on Table 1. According to EVES, the proportions for SG, CG and EG wares were 28%, 71% and less than 1% (1.92, 4.92 and 0.04 EVES respectively). Sorted by weight, the proportions of 27%, 71% and 2% (1181 g, 3110 g and 78 g) are closer to those of EVES than of maximum vessel numbers. This discrepancy reflects at least partially the large proportion of indeterminate fragments in the collection; the combined evidence of EVES and weights may well indicate that numerous South Gaulish sherds belonged to the same vessel or vessels.

Unless stated, for reasons given elsewhere, quantification below is based on the maximum numbers of vessels represented on the site rather than EVES.

Table 4. Middlewich Community Dig: histogram of all samian vessels by half decade (maximum nos)

Table 5.  Faircloughs Homes site:  histogram of all samian vessels by half decade (maximum nos)

Evidence for 1st-century occupation

There were at least one or two vessels (eg Catalogue No 24) that were produced in the pre-Flavian era and were probably Neronian products of the period c AD 55-70; the one example of a pre-Flavian cup form (Ritterling 8) was most probably a Neronian product.  A further four vessels (two of them fragments of moulded bowl form 29) were dated only loosely within the range c AD 65-85. Thus the possible pre-Flavian material must have ranged between 1 and 4% of the SG ware. Many more SG vessels, both plain and decorated, were not datable closely within the Flavian period. In contrast, at the Fairclough Homes sites much of the SG ware had been produced in the early-Flavian period and specifically before c AD 85/90 (compare the histograms summarizing all samian ware from both sites (Table 4-5). The samian was taken at Faircloughs to suggest a slightly later date for foundation than was indicated at the Millennium site in the fort at Carlisle. At Carlisle, the greater proportion of pre-Flavian material (c 4% of the SG wares) and many Neronian-Flavian products were considered consistent with a foundation date in the early 70s (Ward, unpublished report). Amongst the plain samian from this Buckley’s Field site, there were none of the dishes of form 18 or 18R displaying the pronounced external offset at the junction of wall and base that is recorded commonly on these forms in Neronian deposits (eg the fortress at Usk; Tyers 1993, 133). This feature on such dishes is thought to be diagnostic of Neronian date or of the very early 70s at latest; it was noted at the Faircloughs site, though not here.

At the Faircloughs site, too, the ratio of the earlier bowl form 29 to that of the typically Flavian form 37 was 1:10. At the Community site that ratio was 1:15. Recent research has suggested that the SG form was being produced until at least c 90. Felicity Wild (2002, 268) has argued for a date in the 70s or early 80s for parity of the two forms; however, Willis (2005, 5.3.2.4) has noted that, according to his database, parity between the two forms was reached specifically between AD 87 and AD 89 and, if correct, this would imply that the formation of the Middlewich material occurred later than AD 90. At Walton-le-dale, no precisely comparable data are available, but there was only one form 29 amongst 25.6 kg of samian ware (Wild 2002, 271) and at that site, foundation after c AD 90 was suggested. At any rate, the material under discussion appears in general to have been produced later than that on the Faircloughs site. Certainly, a higher proportion of form 29 would be expected if foundation of the Middlewich site occurred in the earlier-Flavian period and the main activity on this particular site appears to have begun in the later first century. .

The second century and later

The pronounced peak on Table 4 in the half-decade c120-125 owes much to the unusually large quantities of products from Les Martres-de-Veyre that are datable in the range c 100-125, combined with the bulk of Lezoux products that were dated in the Hadrianic and Hadrianic-Antonine periods. Bearing in mind that some of the Les Martres products dated c AD 100-125 will have been produced in the Hadrianic period, the evidence of the samian ware on this site nevertheless suggests that there was considerable activity in the vicinity during the Trajanic period.

Although, for whatever reason, there was a surprisingly small proportion of moulded bowls (17%) amongst the Les Martres products, the Les Martres ware as a whole constituted a very large proportion of the assemblage. There were 29 vessels, both plain and decorated, from the workshops that were operating there in the Trajanic-Hadrianic periods, including at least one of slightly later origin (probably contemporary with the potter Cettus who was active there in the period c AD 135-160). Thus, as much as 9% of the samian assemblage and 17% of the CG wares was produced at Les Martres, compared with only 4% of the samian ware as a whole (9% of the CG ware) at the Faircloughs site. Brenda Dickinson (2000, 204) commented that 8-10% is a fairly normal proportion of collections from on British sites. There appears therefore to have been considerable activity in Buckley’s Field in the Trajanic to early Hadrianic period.

PeriodFabricPotterVessels(max nos)
TrajanicLes MartresIgocatus (X-4)1
Trajanic to early-Hadrianic X-132
HadrianicLezouxArcanus2
Hadrianic-early Antonine Butrio1
  Large S Potter1
  Attianus1
 LezouxCinnamus early group2
  Criciro1
early- to mid-Antonine: c 150-170LezouxCinnamus standard style1
c 150-180 Cinnamus or Secundus1
  Pugnus-Secundus1
mid- to late-Antonine Priscus-Clemens1
  Attributable CG bowls: total15

Earlier 3rd- c.EG Lupus iv (Rheinzabern)1

Table 6 CG and EG moulded bowls with decoration that was attributable to specific potters or groups (max nos)

There was a maximum of 83 moulded bowls, of which 66 had some part of the decoration surviving: 35 of the 41 CG bowls bore decoration, though most were mere fragments. Those CG bowls that could be attributed with some certainly to specific styles are listed on Table 6 above. Amongst the CG bowls from Lezoux, over a quarter of those attributable to specific potters’ styles were Hadrianic or Hadrianic to early-Antonine products. As at the Faircloughs site, there was one bowl in the style of Criciro and here, two were in the style of the early Cinnamus group. Following the dating of the Leeds index of potters’stamps, a date c AD 135-160 is given for this style (though Rogers 1999, 98 dated the Cerialis-Cinnamus partnership as early as c 135-145 and the ‘standard’ style as c 140-160+). One or two bowls represented the standard style of Cinnamus, dated here c 150-170 and 150-180, the latter representing the style of Cinnamus or Secundus; there was also one bowl in the Pugnus-Secundus style (again c 150-180).

One bowl, No 27, in the Priscus-Clemens style was dated firmly within the mid- to late-Antonine period (approximately 160-200). As at the Faircloughs site, the virtual absence of all other bowls of that period from this site would be compatible with a period of abandonment or inactivity in this area of Middlewich not long after the mid-second century; the same absence of later-Antonine bowls was noted also at Holt (Ward, 1998, 139). It is quite possible that this bowl, as well as the few later-Antonine plain vessels that were also present on this Middlewich site could have been in use still in the third century.

FormSGCGEGTotal
Ritterling 81  1
Curle 1122 4
15/172  2
15/17 or 182  2
184  4
18 or 18/312  2
18 or 18R61 7
18R13  13
18R or 18/31R4  4
18/31 12 12
18/31 or 31 4 4
18/31 or 18/31R 2 2
18/31R 11 11
18/31R or 31R 7 7
31 1 1
31R 3 3
31R group  22
271415 29
3348 12
294  4
29 or 371  1
3022 4
30 or 371  1
373439174
354  4
3632 5
38 10 10
72 1 1
79 2 2
Ludowici Tx 1 1
Indeterminate3652492
TOTAL1391757321

Table 7. Total of vessel forms by fabric (maximum nos of vessels)
Amongst the plainwares, as at the Faircloughs site, the dish forms 18/31 and 18/31R that were Hadrianic-early Antonine products outnumbered greatly the Antonine forms 31 and 31R. Form 31R and its East Gaulish equivalents were the deep dish variety that developed after c 160 and are usually found in profusion on sites under steady occupation in the later second century. At the Community excavation, these developed forms constituted less than 2% of the total. Also, of the ten examples of the flanged bowl form 38, whose popularity reached a peak in the second half of the 2nd century, half of these may have been Hadrianic products and none of the remainder could be said with any certainty to have been produced after c 150.

Form 27 was the most popular of the cup forms made in South Gaul in the first century, but it lost popularity in favour of form 33 in the second century and went out of production by c AD 160. At both the King St excavations, there were more than twice as many form 27s as 33s. At the Faircloughs site, amongst the Central Gaulish wares, forms 27 and 33 were more or less equal in number, but in contrast Community Dig finds included 15 CG form 27s, but only 8 form 33s. It is conceivable that this reflects the small size of the sample, or it may signify some quirk in the supply to this site; however, it could suggest that activity on this site was reduced rather earlier than at the Faircloughs site. On the other hand, the fall-off at the latter site c 160 seems even more marked according to Table 5 than does the histogram based on the Community Dig finds (Table 4).

At any rate, at the Community Dig there were very few vessels of any form that were manufactured in the later-2nd century: there was one CG beaker with ‘cut-glass’ decoration, only two sherds from dishes of the late-second century form 79 (produced after c 160) and none of the mortarium forms that were produced after c 170 at the earliest. The presence of samian mortaria and particularly the popular lion-headed form 45 is normally a good indicator of late-Antonine activity. The virtual absence of late second-century samian, stamped, decorated or plain, is highly significant and all the evidence of the samian ware appears to point to reduction in activity on the site before c 160.

Early 2nd-century evidence from other north-western sites, and specifically those ‘industrial’ sites with varying degrees of military involvement may be considered, too (see Ward, forthcoming). Samian collections from Holt, Prestatyn, Holditch, Wigan and a very small group from Ochre Brook, Tarbock were used to produce Table 8.

Table 8. Other industrial sites with varying degrees of military involvement: all samian vessels, by half decade (maximum nos)

At the legionary works depôt at Holt, there was an abundance of Trajanic-Hadrianic samian ware, but the stamps indicated an ensuing reduction in activity there also (Ward 1998, 141, fig 8). At Holditch, none of the samian ware from recent excavation needs to have been produced after the middle of the second century (contra the editorial amendment in Ward 2007, 127). The chief periods of activity also ran out around the middle of the 2nd century at two more sites on the line of King St, not included on Table 8: the probably military depôt at Walton-le-dale and industrial site at Wilderspool (see Ward 1998a, 62). The evidence from Prestatyn and recent excavations at Wigan also appear to support this dating for sites where military presence is strongly suspected (Ward 1989 and Ward, unpublished samian report for the Grand Arcade site, Wigan). That there were changes afoot in this period at militarily linked establishments seems confirmed at the auxiliary tilery at Quernmore. The present sample from the Community Dig at Middlewich supports the suggestion that the area of the Faircloughs saw a reduction or change in activity in or very close to the early-Antonine period, with few vessels having been manufactured after c AD 160; much the same pattern is visible at other industrial sites with military involvement (cf Tables 4, 5 and 8). Certainly, the evidence of the samian ware can be taken to indicate little activity on the Community site at Buckley’s Field in the late second century

The general scarcity of EG wares on the western side of Britain is well known. The proportion of EG wares in the Community Dig collection (2%) is very low for a western site, even, when compared with, for example, the Faircloughs material (4%) or that from sites with a high level of third-century occupation such as the ‘mansio’ in Castle St, Chester (6%); see Bulmer 1980, 21; 1993, 16  (cf the much higher proportion from the north-eastern site at Piercebridge: 17%; Ward forthcoming, 2008). In this collection, there were no products of the Argonne factories of the Hadrianic- Antonine period as have been recorded at such sites as Lancaster, Ribchester, Chester and Carlisle. However, as at Holt (Ward 1998 and 1998a), the presence of not only the few late CG vessels (eg Catalogue No 27), but also EG products from Rheinzabern and/or Trier in this small sample could support renewed activity in the third century: in all, six CG and six EG vessels were produced after c AD 160. Of the later 2nd- or 3rd-century products from Rheinzabern and Trier at Middlewich, one of the Rheinzabern products was a moulded bowl in the style of Lupus iv, who was working in the earlier third century, probably within the range c AD 200-240; see No 4. This was the latest identifiable samian ware on this site (found unstratified in Trench 1). As noted above, this bowl along with a few other late CG and EG sherds could reflect third-century activity in the area.

Condition: burning, wear, repair and re-use

Samian ware can provide much information about a site and its occupation. The significance of this information has been acknowledged for many years (Bulmer 1980a, 89; Marsh 1981, 227f; Ward 1989; Willis 1998, 121). Re-working or reuse of samian ware has been noted at many sites (see Ward 1993, 19ff). In this collection, 11% of the total showed evidence of wear, repair or secondary use; 1.6% of these had been re-worked or re-used and 0.9% had been repaired. Most of these repaired, re-used or re-worked vessels had been produced in the second-century and may well have seen considerable use. Samian ware must have been a relatively valuable commodity and, where possible, its life will have been extended in use, whether by cutting down and smoothing off, re-working or repairing of accidentally broken pieces

Marks of ownership also point to the value of samian vessels to their owners (see Tomlin 2002, 504). At least three vessels displayed graffiti or erasure of graffiti (implying second ownership; see Nos 12, 29). One in Trench 12 Phase 8 (No 12) was on a bowl  manufactured in the range c 150-180, the other two, produced in the earlier second century, were a (stamped) dish of Hadrianic origin (No 28) and a cup produced in the Hadrianic-early Antonine period (No 29), both found in Trench 12, Phase 9m (1217). The proportion formed by these graffiti (0.93%), although in a small sample, may be compared with 0.16% of the total at the Faircloughs site: this comprised a single graffito (on a dish stamped in the period c 150-175).

In Trench 12 Periods 8 and 12, there was a tiny counter, a large disc, a footring re-used upside down, a cut-down cup and at least one vessel that had seen, at the least, hard use (No 20). There were no examples of spindle-whorls, an item that is thought typical of the late-Roman period and particularly the fourth century (Cool 2000, 53).

There were three repaired vessels in Trenches 9 (Period 7) and 12 (again in Period 8). These constituted 0.9% of the total, compared with as much as 3% of the Faircloughs site assemblage. These figures may be compared against 0.3% at the Millennium site in Carlisle fort, 0.7% at Prestatyn, 1.4% at Piercebridge, 1.6% at Mitchells Brewery in the Lancaster vicus, and 2.8% at Worcester Magistrates Court (see Ward 1989, 154; 1993, 21 and 2007, forthcoming , and Ward unpublished reports). Willis (2005, 11.5 Table 73) found that the average for nine of his listed military sites was 2%. Certainly, repairwork on samian ware has been noted at other sites known to have had metal-working or industrial activities, with military or possibly military involvement (see Holt, Ward 1998a, 52 and, on Heronbridge, 73; Prestatyn, Ward 1989, 154).  At Piercebridge, there was the workshop of a metalworker who may have taken on the repair of broken samian vessels, in the northern vicus (Ward 1993, 19f and 2008). In this small sample from the Community Dig, two repairs were of the rivet variety and one used cleats. However, it is difficult to judge the success of repairwork, particularly when the vessel had finally broken through the repair and lacked its rivets or cleats.

In addition to the re-worked or repaired sherds recorded above, Trench 12 (1267) contained a small fragment from a Hadrianic-early Antonine CG product that displayed a sharply worn corner and scoured and scratched edges. This could possibly have been used as a scraper, but, as in the case of possible examples at the Faircloughs site, its secondary use was only a tentative suggestion (cf Ward 2008).

7% of the material was burnt. This was only a little lower than at the Faircloughs site (10%), where, unlike in the present collection, several pieces appeared to have suffered unusually from smoke (rather than burning or sooting).

Status

The evidence of moulded bowls on the site may be considered. The products of Les Martres-de-Veyre always include a large proportion of these decorated bowls (31% at Carlisle Millennium site; Ward, unpublished report); see Darling 1998, 176. At the Faircloughs site, an exceptionally large proportion of the products of Les Martres comprised moulded bowls (48%) and on that basis it was proposed that moulded bowls were highly favoured in the vicinity of this Middlewich site in the early 2nd century (Ward 2008). However, at the Community Dig site, for whatever reason, the proportion was surprisingly small at only 17%.

In contrast, we have seen above that the overall total of 83 moulded bowls constituted 26% of the whole collection compared with 37% at the Faircloughs site (see Fig 3). If we discount the many fragments of indeterminate form from the total, then the moulded bowls from the Community Dig could have comprised as much as 41% by EVES, though (for whatever reason) considerably their proportion was considerably smaller according to the maximum numbers of vessels: 35% (see Tables 1-2).

Thus, the figure of 41% comprising moulded bowls by EVES is very close to that at the Faircloughs site (43%). Willis (2005, Table 42), relying on the ‘number of vessels represented,’ noted that the average percentage of decorated samian bowls on thirty military sites was 30% and in extra-mural occupation at military sites 35%. In contrast, the proportion at exclusively civil sites was much lower, at 17-26%. It is unclear whether Willis included all indeterminate fragments in his totals, but presuming that he did, even so the Middlewich proportions would be high for an exclusively civil site. The assemblage may be taken to reflect the military presence in the area, whether or not there was specifically military involvement at Buckley’s Field. The moulded bowl proportion according to maximum numbers represented is clearly much higher than that of 25% noted in the Carlisle Millennium assemblage (Ward, unpublished samian report). So too, although it is difficult to compare collections quantified differently, moulded bowls appear more frequent at Middlewich than at Ribchester (30%) or indeed than the average as quoted there (10%; see Dickinson 2000, 204). Ruth Leary concludes concerning the pottery on this site that the level of decorated samian does indeed indicate that the settlement had a military-type assemblage, but that the characteristics of the group in terms of other luxury goods and table ware: kitchen ware ratios suggest the area was of fairly low status. It may be noted that Willis (2005, Table 45) has compiled data for types of samian vessel represented at sites of differing status and it is striking that the proportions of bowls, cups and dishes on the Middlewich site are closer to those recorded from extra-mural occupation sites at Roman military installations than they are to those from the military installations themselves (op cit, 8.2.3 Chart 14, cf 8.2.2 Chart 13).

Table 9 The relative frequency of samian vessel types/functional categories, discounting indeterminate sherds (maximum vessel nos)

Table 10. The relative frequency of samian vessel types/functional categories, discounting indeterminate sherds (by EVES)

Table 11. Faircloughs site: relative proportion of vessel types (maximum vessel nos)
Although this was a relatively small sample, it may be noted that here there were none of the inkwells that were recorded at the Faircloughs site. Writing of graffiti on samian ware itself is taken to be evidence of a high status site (Evans 1987, 202). The proportion of 0.93% of the samian total formed by graffiti on this Community Dig site is relatively high. It may be compared with the figure of 0.16% at Faircloughs, 0.5% at Piercebridge and also at the large Mitchells Brewery site in the Lancaster vicus, or with 1.25% at the Millennium site in Carlisle fort (Ward, reports all unpublished or forthcoming). It is difficult to compare other, published data, since the proportions published are often based on all graffiti on all manner of ceramics. However, at Ribchester (Dickinson 2000), it appears that 26 graffiti comprised 0.86% of the samian ware. At the Faircloughs site, the present writer proposed that the proportion of 0.16% might reflect a low level of literacy amongst the average samian-owner in the vicinity and that this in turn could relate to the special, industrial function of the site. Clearly, there was greater evidence of graffiti in the present, smaller sample. There were still no obvious examples of the ubiquitous practices (not requiring literacy) of scoring bases with an X (Tomlin 2002, 504) or the widespread habit of nicking the standing surface of footrings.

As seen above, the samian ware on this site was clearly valued enough to warrant repair in order to extend life in use even though such vessels were probably abundantly available at the time of their repair (none was necessarily produced later than the early-Antonine period). Willis found that the proportion of repaired decorated samian vessels from rural sites is markedly lower than at military sites and smaller civil centres (Willis 2005, Table 75), though he admitted that rural sites had relatively low proportions of decorated ware anyway. Certainly Middlewich had high proportions of moulded bowls and this is no doubt reflected in the proportions of moulded bowls that were repaired. It would, however, not be surprising if the decoration made the vessel more highly prized and valued enough to make its repair more worthwhile. It may be that a craftsman’s services became necessary in order to extend the life of pots at a time when supplies perhaps ran low – during mass-movement of troops to Scotland in the early-Antonine period, perhaps.

ACKNOWLEDGMENTS
The writer wishes to thank Ruth Leary for her help and for sharing her expertise throughout this project.

Bibliography for the samian report
Bird, J. 1986. ‘Samian’ in L Miller, J Schofield and M Rhodes, ed T Dyson, The Roman quay at St Magnus House, London, excavations at New Fresh Wharf, Lower Thames Street, London 1974-78, London & Middlesex Archaeol Soc Special Paper No 8, 139-185Bittner, F-K 1986 ‘Zur Forsetzung der Diskussion um die Chronologie der Rheinzaberner Relieftöpfer,’ Bayerische Vorgeschichtsblatter 51, 233-259
Dannell, G B, Dickinson B, and Vernhet, A 1998 Ovolos on Dragendorff form 30 from the collections of Frédéric Hermet and Dieudonné Rey, in Bird 1998, 69-109
Darling, M J 1998 Samian from the City of London: a question of status? in J Bird (ed), Form and fabric. Studies in Rome’s material past in honour of B R Hartley, Oxbow Monograph 80, Oxford, 169-177

Dickinson B, 2000 Samian, in K Buxton and C Howard-Davis, Bremetenacum. Excavations at Roman Ribchester 1980, 1989-1990, Lancaster, 202-224

Dzwiza, K 2004 Ein Depotfund reliefziertersüdgallischer Terra Sigillata-Schüsseln aus Pompeji, Sonderdrück aus Jahrbuchdes römisch-germanischen Zentralmuseums Mainz

Evans, J 1987 Graffiti and the evidence of literacy and pottery use in Roman Britain, Archaeol J 144, 191-204

Grimes, W F 1930 Holt, Denbighshire. The twentieth legion at Castle Lyons, London

Nieto, J and Puig, AM 2001 Excavacions arqueològiques subaquàtiques a Cala Culip, 3. Culip IV: la terra sigillata decorada, Monografies del Centre d’ Arqueològia Subaquàtica de Catalunya 3, Girona

Oswald + catalogue no: Oswald, F. 1936-7. Index of figure-types on terra sigillata, Univ of Liverpool Annal of Archaeology and Anthropology supplement, Liverpool 1936-7.

Polak, M, 2000 South Gaulish Terra Sigillata with potters’ stamps from Vechten, Rei Cretariae Romanae Fautorum Acta Supplementum 9, Nijmegen.

Ricken, H. 1948. ‘Die Bilderschüsseln der römischen Töpfer von Rheinzabern (Tafelband), Speyer.

Ricken-Fischer + catalogue no: Ricken, H and Fischer, C 1963. Die Bilderschüsseln der römischen Töpfer von Rheinzabern (Textband), Bonn

Rogers + catalogue no: G B 1974 Poteries sigillées de la Gaule centrale, I: les motifs non figurés, Gallia suppl 28, Paris

Rogers, G B 1999 Poteries sigillées de la Gaule centrale, II. Les potiers, I, Lezoux

Romeuf, A-M 2001 Le quartier artisanale gallo-romain des Martres-de-Veyre (Puy-de-Dôme), Les Cahiers du Centre Archéologique de Lezoux, Lezoux)

S & S: Stanfield, J A & Simpson, G, 1958 Central Gaulish Potters, London; 1990 (French edition) Les potiers de la Gaule centrale, Revue Archéologique Sites 37

Terrisse J-R, 1968 Les céramiques sigillées gallo-romains des Martres-de-Veyre (Puy-de-Dôme), Gallia Suppl. 19.

Tomlin R S O 2002 Graffiti, in P R Wilson, Cataractonium. Roman Catterick and its hinterland, excavations and research, 1958-1997, CBA Res Rep 128 , 504-517

Ward, M 1998 Some finds from the Roman works-depôt at Holt, Studia Celtica 32, 43-84

Ward, M 2007 Samian ware, in I R Rogers and D J Garner, 2007 D J Wilderspool and Holditch, Roman boom-towns on the ‘road north.’ Gifford Archaeological Monographs 2, Oxford, 125-128

Ward, M 2008. The samian ware, in Cool, H E M and Mason, D J P (eds) Roman Piercebridge: Excavations by D.W. Harding and Peter Scott 1969 – 1981 Architectural and Archaeological Society of Durham and Northumberland Monograph (in press), digital version currently accessible at http://www.barbicanra.co.uk/PiercebridgeCA.pdf

Ward, M 2008a Samian ware in M Williams and M Reid, Salt: Life and Industry. Excavations at King Street, Middlewich, Cheshire 2001-2002, BAR, Oxford (in press)

Ward, M forthcoming Samian supply to northern Britain: a preliminary survey of 25,000 vessels, forthcoming

Webster, PV 1996 Roman samian pottery in Britain, CBA Practical Handbook in Archaeology 13, York

Willis, S 1998 Samian pottery in Britain: exploring its distribution and archaeological potential, Archaeol J 155, 82-133

Willis, S. 2005. Samian pottery, a resource for the study of Roman Britain and beyond: the results of the English Heritage funded samian project, Internet Archaeology 17

A total of 28 sherds of medieval pottery weighing 225g and 19 sherds of post-medieval pottery weighing 243g were recovered from the excavation. No material which could be ascribed to the Saxon period was identified in the assemblage.
Of the medieval material, three body sherds from vessels in an oxidised sandy ware (from storage vessels) were recovered from the initial cleaning of Trench 5, the remaining 22 sherds were recovered from contexts in Trench 12. The majority of this material was in either an oxidised or white ware with vestiges of green glaze, however the condition was very poor suggesting that this material had been worked into the soil through a later processes such as manuring.

The provenance of the medieval material in Trench 12 is interesting. One tiny undiagnostic sherd was recovered from Phase 8 gully fill 1215 at the northern end of the trench, and four small sherds from Phase 8 ditch fill 1216. The presence of this material within securely stratified Roman deposits would suggest either excavator error, or that the sherds have fallen into the features from the sides of the trench. A further eight sherds were recorded in contexts 1217 and 1271, a midden deposit and an unsealed buried soil respectively; in this case it is likely that the sherds were worked into the upper surface of these deposits much later than their initial formation. Finally twelve sherds were recovered from cleaning layers 1212 and 1218 following the initial machining of the trench, and are likely to have been residual from the overlying soil. Again, the majority of these pieces were undiagnostic, though three had incised horizontal bands of decoration, and a single rim sherd from a beaded-rim storage jar in a coarse oxidised fabric was recovered from layer 1212.

The post-medieval pottery comprises small abraded sherds, again probably worked into the soil through manuring. Fabrics represented include porcelaineous pottery, dark glazed earthenware, stoneware and slipware of 17th-19th century date. A single sherd was recovered from the subsoil in Trench 1 (101) and a second from cleaning layer (102), two sherds from Phase 7 fill 402 in Trench 4, two sherds from the subsoil in Trench 8 and eight sherds from buried soil 906 in Trench 9. Two further sherds were found in cleaning layer 1214 and ditch fill 1216 in Trench 12. As with the medieval material, it seems probable that sherds recorded in stratified contexts have been assigned in error, or were worked into the soil during machining.

All of the post-Roman pottery is typical of domestic waste, with fragments of storage vessels, bowls, plates and cups present. The material is of little interpretive value for the site.

ROMAN WINDOW GLASS

A total of nine fragments of Roman window glass weighing 88g were recovered from contexts in Trenches 9 and 12. In Trench 9 one fragment was found within buried soil 906, while a second was recovered from fill 908 in pit 909. This latter deposit has been securely dated to the second half of the second century.

Three fragments were recovered from cleaning layers 1212, 1213 and 1218, so are not strongly provenanced. One fragment was found in buried soil 1219, which continued to develop and accumulate until the early third century, and a second in Phase 7 pit 1229 which was backfilled around the middle of the second century. Finally two fragments were recovered from Phase 8 contexts 1242 and 1281; the fill of a pit in the southwest corner of the trench and a gravel pad in the centre of the trench respectively.

All of the fragments were cast glass, meaning that the molten glass had been poured into a shallow mould rather than blown. This type of window glass became increasingly common on military sites from the middle of the 1st century onwards.

The small sample size and scattered spatial distribution precludes meaningful interpretation of this group, however the presence of the material is indicative that at least one building with glazed windows stood at, or near to, the site during the early-mid 2nd century AD.

Roman window glass recovered during the excavation

ROMAN VESSEL GLASS

Thirty nine fragments of Roman vessel glass were recovered from Trenches 1, 4, 8, 9 and 12. The majority were body sherds from thick-walled square-blown storage vessels, though thin sherds of beaker glass were also present. The fragments are quantified in the table below; the date range given is for the pottery assemblage from each context.

CtxtTr Phase Date rangeNo. SherdsNotes
14118120-200 AD1Thin beaker body sherd. Slight yellow colouration
40247Late 2nd- 3rd C1Beaker bodysherd- blue/green colour
40747Early 2nd C22 beaker bodysherds, blue/green colour
40947Early 2nd C22 fragments of thick-walled storage vessel- blue/green
41047120-160 AD1Single fragment from thin walled vessel, blue/green
41147Early 2nd C1Single fragment from thin walled vessel, blue/green
41847Mid-late 2nd22 fragments of thick-walled storage vessel- blue/green
4194770-140 AD1Single fragment of thin-walled vessel in faint yellow glass, horizontal banded (facet-cut) decoration around circumference
U/S81Thin vessel fragment- dark green/yellow colouration
802813PM1Residual sherd of thin walled vessel- dark green/yellow glass
9129770-110 AD1Base of square, mould-blown storage vessel in blue/green glass
120212122nd-3rd C1Single small sherd of blue/green storage vessel wall
12041212Mid-2nd-3rd C2Body sherd and fragment of handle from blue/green thick walled storage jar
1206128Mid-late 2ndwith intrusive 3rd and 4th C41 body sherd of thick-walled storage vessel in blue/green glass, very abraded. 1 sherd from shoulder of thin walled vessel in yellow glass, 2 tiny undiagnostic fragments
1210128160-200 AD22 body sherds from thin-walled vessels in colourless and yellow glass
12121212Mid-2nd-3rd C11 small body sherd from blue/green thick-walled vessel
1216128Mid-late 2ndC11 small fragment of thin yellow glass vessel
1217129Late 2nd – 3rdC96 body sherds from thick walled blue/green storage vessels, 2 body sherds from thin walled colourless vessels, shoulder and rim of a blue/green prismatic storage jar with folded lip
1223128135-60 AD1Single very small fragment from a thick-walled blue-green storage vessel
1245128130-1601Shoulder and handle of a thick walled blue/green cylindrical storage vessel. Elongated bubble running through extruded handle
1265128Mid -2nd(inferred)1Body sherd from indented beaker in colourless glass
1266128Mid-late 2ndC1Single fragment from the neck and handle of a conical long-necked jug in yellow/green glass
1281128140-200 AD1Single fragment from body of thick-walled blue/green storage vessel



FORMS

The assemblage was dominated by thick-walled storage vessels with blue/green colouration (18 fragments), and thin walled vessels in either blue/green, yellow or colourless glass (16 fragments). Of the latter, most were undiagnostic body sherds. Four fragments of the storage jars/bottles were identifiable as either base (one fragment from the base of a prismatic, mould-blown jar) or shoulder/handle and rim (three fragments, one from a cylindrical jar). A single piece is identifiable as part of the neck and handle of a conical long-necked jug in a yellow/green glass (1266).

1204 vessel glass1245 vessel glass1266 vessel glass

Although the fragments were small, two of the cup/beaker sherds from Trench 4 had identifiable decoration, one displaying an indent, another with horizontal facet-cut lines running around the circumference of the vessel (419).

419 vessel glass

Wheel-cut vessel glass, context 419

CHRONOLOGY

Although not closely datable, the majority of the glass can be ascribed to activity in Phases 7 and 8, broadly falling into the date range 120-200AD. The lack of polychrome glass popular in the first century can be taken as an indicator that there was limited activity prior to the early second century, while the colours present, including blue/green, yellow and colourless, most likely denote a date range in the 2nd – 3rd century.. The material from Trench 8 was residual, while in Trench 12 four fragments were recovered from cleaning layers which are not securely stratified. The largest concentration of glass in Trench 12 (nine fragments) was found in midden deposit 1217, which extends from the late 2nd century through to the 3rd. It is possible that some of the glass found in this layer is residual; pottery from the same deposit is dated between the late 1st and 3rd centuries, suggesting that earlier material was reworked into the layer from elsewhere.

SPATIAL DISTRIBUTION

Single sherds from Trenches 1 and 9 do not warrant comment, though the low number of recovered fragments in these trenches is unsurprising, given the small excavated areas. Similarly, the residual material from Trench 8 cannot provide meaningful information.

The majority of the glass (25 fragments out of the total 39) was found in Trench 12. Thirteen of these fragments were not securely stratified, with material recovered from cleaning layers 1202, 1204 and 1212, and midden deposit 1217. Twelve glass fragments were securely stratified, the contexts represented falling into three distinct zones; the backfill of ditch 1221 (fills 1223 and 1216), the backfill of pit 1247 (fills 1210 and 1245) and spreads of gravel and briquetage to the north of clay-floored building 1208 (contexts 1206, 1265, 1266 and 1281). All of these contexts can be equated with the disuse of the building in Trench 12 and an apparent shift in focus of the settlement towards the east in the latter half of the second century.



Roman Dress Accessories

BROOCHES

Five brooches were recovered during the excavation. These fall into three categories; trumpet brooches, Colchester derived brooches and penannular brooches.

Three trumpet brooches were recovered from contexts in Trenches 4 and 12. These are summarised below:

416: 59mm long, the head of the bow is large with two circular recesses on either side. The upper body tapers to a central waist moulding which has suffered some corrosion, though a portion of the surviving surface suggests that this was decorated with an interlacing waved line. The lower body tapers gradually to a moulding with rebated collar which may have housed inlaid decoration (now missing). The front of the lower body is decorated with a symmetrical pattern of weaving lines, possibly in a pale yellow enamel, though the condition is now so poor that the surface is difficult to distinguish. The lower half of the pin survives, corroded into the clasp.

Brooch, 416

1202: 54mm long, the head of the bow is large and flattish, with a rebated groove running down the centre to a large central waist knob moulding between two knurled collars. The lower part of the body is unadorned, and tapers to a circular foot which is hollow, indicating that an inlaid decoration is missing. The pin has gone, though a portion of the spring is corroded to the head.

Brooch, 1202

1203: 27mm long, only the head of the bow survives, though this is broken in two. The head is small and tapers rapidly to a narrow upper body decorated with two parallel grooves. Towards the waist of the brooch the body starts to taper out again, but is broken off before reaching that point. Part of the spring survives corroded onto the head.

Brooch fragment, 1203

A single Colchester-derived ‘dolphin’ brooch was recovered from the spoil in Trench 12 through metal detecting. Though unstratified, this brooch is in good condition.

U/S: 40mm long, the wings are short with round cross-section, perforated at either end with a single small hole to receive the spring mechanism (now missing). The bow is humped over the wings and tapers gradually to the foot which ends in a single knob. The upper half of the bow is decorated with two knurled ridges either side of a recessed central groove, with two parallel outer grooves on either side of the body.

Brooch, Trench 12 unstratified

908: A single iron penannular brooch was recovered from context 908 in Trench 9. Though heavily corroded, the form can be distinguished. The diameter is 42mm, and the pin corroded to one of two ball-shaped terminals. The corrosion is too severe to determine the cross sectional shape of the brooch or to identify any surface decoration.

Brooch, 908

GLASS BEADS

Three decorative glass beads were recovered from Trenches 4 and 12.

The first of these is a faiance melon bead from context 419 in Trench 4. 28mm in diameter, this has lost its original vitrified outer surface, though the colour and finish is still visible running through the bead. These beads were common in the 1st and 2nd centuries, tending towards the 1st century on military sites.

Faiance bead, 419

A small melon bead of dark-blue glass, 16mm in diameter, was recovered from ditch 1215 in Trench 12. Hoffmann notes that such beads are less common than frit melon beads, but that both types are common on 1st-early 2nd century military sites (particularly associated with horse harness), with reduced numbers in the later second century onwards. (www.theromangaskproject.org.uk/Pages/Introduction/RomanGlass.html; accessed 08.05.08).

Melon bead, 1215

The third bead was a small, faceted cylindrical bead in green glass recovered from midden deposit 1217 in Trench 12, measuring 11mm long x 6mm wide. A parallel for this bead was found at Segontium Roman Fort (Allen 1993, 219; no. 53, SF864) from a Period 9 context (early-mid 4th century). Although such types cannot be closely dated, Allen notes that most of the beads on that site were found in late contexts with the exception of the melon beads.

Faceted bead, 1217

COPPER ALLOY HAIR PIN

The head and upper shaft of a copper alloy hair pin was recovered from context 912 in Trench 9 (Phase 7). The pin head is globular in form and 10mm in diameter. The shaft of the pin is broken off 11mm below the head.

Hair pin, 912

The Coins
David Shotter

INTRODUCTION

Twelve coins were recovered during the excavations at Buckley’s Field, although only two – both Roman – came from stratified deposits. Eight of the coins were Roman, two were of the reign of Charles I, and two copper coins were of eighteenth or nineteenth century origin. In the following list, the coins will be described by trench:

TRENCH 1 (1 coin)
1. Æ Magnentius (U/S); broken, but little worn LRBC II.49 AD 350-1
D N MAGNENTIVS P F AVG
FELICITAS REIPVBLICE TRP

TRENCH 8 (2 coins)

2. Æ Constantine II (U/S); chipped on edges, but little worn
as LRBC I.49 AD 330-5
[CONSTANTINVS] IVN NOB C
GLORIA EXERCITVS (2 standards)

3. AR Half-groat, Charles I (U/S); very worn c. 1644

TRENCH 9 (3 coins)

4. Æ As, Domitian as Caesar (under Vespasian) (906);
corroded, but not very worn AD 72-9
CAESAR AVG F DOMITIANVS C[OS ….] S C (Illegible)

5. Æ Dupondius, Vespasian (U/S): badly corroded AD 69-79
(legends illegible)

6. Æ Halfpenny (U/S) 18th/19th century

TRENCH 12 (6 coins)

7. Æ As, Nero (U/S); very corroded AD 62-8

8. Æ Dupondius, Vespasian (1213); corroded, but not very worn AD 69-79
(legends illegible)

9. AR Denarius, Hadrian (U/S); little worn RIC 2 (Hadrian), 118 AD 119-22
IMP CAESAR TRAIANVS HADRIANVS AVG
P M TR P COS III CONCORD (in exergue)

10 AR Denarius, Marcus Aurelius (U/S); moderately worn
RIC 3 (Marcus), 436 AD 161+
DIVVS ANTONINVS
CONSECRATIO Funeral Pyre

11. AR Half-groat, Charles I (U/S); very worn c. 1644

12. Æ One Penny (U/S); very corroded early-nineteenth century

DISCUSSION

It is clearly not possible to draw far-reaching conclusions regarding so small a coin-sample; however, it may be said that eight coins represent a significant number from a relatively small area. The appearance of a coin of Nero and three Flavian coins serve to strengthen the impression that military activity came to the Middlewich-area at an early point in the Flavian period, and that activity in general remained at a significant level from that point into the second and third centuries. Although there were two fourth-century coins in the present sample, we continue to see that coins from the mid-third century onwards remain relatively poorly represented, although it should be noted that the present excavations did produce the latest coin yet recorded from Middlewich – the issue of Magnentius (AD 351-3). Future research will no doubt find a reason for the continuing paucity of late coins, although it may suggest that the principal focal-points of activity shifted within the area in the later years. Further, the complete absence of any coins later than AD 351 still requires an explanation.

The chronological distribution of the 126 Roman coins now recorded from Middlewich may be shown thus:

PeriodNumber%
I (-AD 41)118.70
II (41-54)
III (54-68)43.18
IV (69-96)2217.46
V (96-117)2822.22
VI (117-138)1310.32
VII (138-161)75.56
VIII (161-180)129.52
IX (180-192)32.38
X (192-222)43.18
XI (222-235)32.38
XII (235-259)53.97
XIII (259-275)75.56
XIV (275-294)
XV (294-324)21.59
XVI (324-330)
XVII (330-346)43.18
XVIII (346-364)10.80
XIX (364-378)
XX (378-388)
XXI (388-    )
Metalwork
Industrial Residues
Building Material
Briquetage

THE VERTEBRATE REMAINS

DEBORAH JAQUES

SUMMARY

The vertebrate assemblage from this site was mainly concentrated in ditch and pit fills and deposits of early 2nd to early 3rd century AD date. Identified vertebrate material consisted mainly of cattle, pig and caprovid remains (no bird bones or wild mammal species were noted) but detailed analysis was hindered by the poor preservation. From the identified remains, the relative abundance of the different species suggested that cattle were prevalent, with pig forming a quarter of the identified assemblage and caprovids being of less importance. Despite the limitations of the assemblage, it does seem to fit well with other vertebrate material of this date, particularly from similar sites which have close associations with military facilities. A predominance of cattle is characteristic of many Roman assemblages and shows a marked change from the dietary preference for lamb and mutton typically suggested by Late Iron Age assemblages.

METHODS

For the vertebrate remains, data were recorded electronically directly into a series of tables using a purpose-built input system and Paradox software. For each context, subjective records were made of the state of preservation, colour of the fragments, and the appearance of broken surfaces (‘angularity’). Additionally, semi-quantitative information was recorded concerning fragment size, dog gnawing, burning, butchery and fresh breakage.

Identifications to species or species group were carried out using the PRS modern comparative reference collection. Selected elements were recorded using the diagnostic zones method described by Dobney and Rielly (1988), whilst remaining elements which could be identified to species were only counted. Other fragments (classified as ‘unidentified’) were, where possible, grouped into categories: large mammal (assumed to be horse, cow or large cervid), medium-sized mammal (assumed to be sheep, pig or small cervid) and totally unidentified.

Caprovid tooth wear stages were recorded using those outlined by Payne (1973; 1987), and those for cattle and pig followed the scheme set out by Grant (1982). Cattle, caprovid and pig mandibles and isolated teeth were assigned to the general age categories outlined by O’Connor (1989) and Payne (1973; 1987). Where present, epiphyseal fusion data was recorded. Mammal bones were described as ‘juvenile’ if the epiphyses were unfused and the associated shaft fragment appeared spongy and porous. Measurements followed von den Driesch (1976) unless otherwise specified.

RESULTS
In total, 1280 fragments of bone were recovered from four of the excavated trenches. The largest quantity of material came from the area excavation of Trench 12, and ditch 1221 in particular. Poor preservation was recorded throughout and the material was extremely fragmented. Tables 1 and 2 present summary information for the vertebrate assemblage by context and by trench.

Click for Table 1

Click for Table 2

TRENCH 1

Bone, amounting to 145 fragments, was recovered from 11 deposits in Trench 1. These deposits included pit and ditch fills, surfaces and layers, which dated from throughout the Roman period. Many of these features were associated with the ditches, surfaces (1st century AD) and subsequent realignment (2nd century AD) of a road. The bones were extremely poorly preserved, which may have resulted from their secondary use as part of the hard core material forming and stabilising the road/trackway encountered in this area. The bones may have originally been discarded elsewhere and then, perhaps, deliberately brought to the site and dumped as construction material.

Six of the deposits gave identifiable remains (Contexts 102, 103, 119, 122, 126 and 183), which were primarily those of cattle, with a collection of tooth enamel fragments from Context 102 which were identified as a horse tooth. Cattle remains included a tooth, metapodials and phalanges from Contexts 103, 119, 122 and 126, with tarsals and radius fragments from Context 183. Some of the large mammal shaft fragments recorded in the ‘unidentified’ component from Context 119 were probably parts of the metapodials recovered from this deposit, as the condition of the bones was poor and the surfaces had split into layers. Tooth enamel fragments in these deposits were not identified to species but those recorded as ‘large mammal’ were probably cattle; they were too badly broken to reconstruct.

TRENCH 4

Nine of the 11 deposits from this trench which produced bone were fills of a large rectangular feature, Context 403, described by the excavator as a possible ‘tank’ which had been cut into the natural sand. No evidence of a lining for this feature was seen or recorded. Fills of two other associated, but smaller, pits gave another 11 fragments of bone. The fills of the three pits were of early 2nd to early 3rd century AD date and, in total, 294 fragments were recovered, of which just 34 were identifiable.

As with the material from Trench 1, the vertebrate remains were of extremely poor preservation, with a high degree of fragmentation. This was largely the result of fresh breakage damage which had occurred during excavation and post-excavation processes but the very poor condition of the bones in the ground rendered them easily broken when moved. Much surface erosion was apparent, suggesting that the surrounding matrix was not conducive to the survival of bone. Bones were splitting into layers and some were flakey and crumbly. Some fragments of large mammal tooth enamel were present, but these were also of rather poor preservation.

The remains were mostly identified as cattle and pig, with a very few sheep/goat bones also being present. Some fragments were recorded as possible cattle, because their poor condition made a more precise identification impossible. A range of skeletal elements were recorded for cattle, including major meat-bearing bones such as humeri and femora, and fragments typically interpreted as primary butchery waste e.g. mandibles, isolated teeth and phalanges. The pig remains were clearly biased in favour of teeth, with a mandible and scapula fragment also noted.

The unidentified fraction or fragments which could only be identified into broad categories, such as ‘large mammal’ and ‘medium-sized mammal’ consisted mainly of tooth enamel, shaft and rib fragments. These were almost certainly cattle, particularly the enamel fragments, but the presence of fragments of horse or even perhaps large deer (both of which have bones of a similar size) cannot be ruled out especially as the preservation was so poor. Two hundred fragments could not be identified; this component comprised many small fragments of bone, some of which had lost all of their surfaces and, in most cases, distinctive morphological characteristics were entirely absent. Small burnt bones, frequently white in colour were found throughout the deposits.

TRENCH 9

The vertebrate assemblage from this trench was recovered from six deposits, four of which were fills of Context 909, an oval pit which cut through a buried soil. Infilling of the pit was thought to have occurred by about 150 AD. The buried soil also produced a small collection of bones (Context 905=906). In total 156 fragments of animal bone were recovered from this trench, of which 24 were identifiable to species or family group (Table 3).

As seen from elsewhere on the site, the bone preservation was poor and the assemblage extremely fragmented. The material from Context 908, the fill from which many of the bones were recovered, did show slightly better preservation, although surface erosion and fresh breakage damage were still much in evidence. The bones were in such a poor condition that breakage on excavation was inevitable. Tooth enamel, which usually survives better in adverse conditions because of its higher mineral content, was also not particularly well preserved.

Identified remains from the earlier buried soil were restricted to two caprovid teeth. The degree of wear (attrition) of one of these (a mandibular M3) suggested the tooth came from an adult individual of approximately 3 to 4 years of age when it died (after Payne 1973; 1987).

Bones from the fills of the oval pit were dominated by the remains of cattle, in particular skeletal elements typically discarded during initial carcass preparation, e.g. horncore fragments, metapodials, calcaneii, astragalus and phalanges. There were also two scapula fragments but both of these were very eroded and poorly preserved. Given the poor preservation, it is likely that the remains are biased in favour of the smaller more robust fragments such as phalanges and calcaneii. All of the bones were from adult animals.

Pig remains from Context 908 were mainly teeth or mandible fragments and included a fragment of a canine from a male individual. The ?maxillary and mandibular third molars were unworn so may not have erupted (or at least were not in wear) and the isolated teeth appeared to be fragments of molar that may have been from the same tooth but which could not be reconstructed.

TRENCH 12

This trench formed the main intervention at the site and was an open area which encompassed some of the evaluation trenches (although not Trenches 1, 4 or 9). Features encountered in this trench included a clay floor of an industrial building, with a large circular pit (Context 1247) at its centre and a ditch (Context 1221) along its southern edge. Hand-collected bone was recovered from 27 deposits, seven of which were fills of the large pit and three represented deposits from within the ditch. The ditch fills produced just over 50% of the vertebrate remains from this trench. Most of the features probably dated to the first half of the second century, and had fallen out of use by 150 AD, at which time a substantial midden layer, Context 1217, was deposited in this area. A total of 683 fragments of bone were recovered, but of these only 64 were identifiable to species or family group.

Preservation of the remains was poor, and this was particularly noticeable for the fragments recovered from the fills of ditch 1221. A high degree of fragmentation was noted throughout, much of which resulted from fresh breakage damage; the bones were very fragile, however. Surface erosion was frequently observed and some of the bone surfaces had lost their outer ‘face’ and were splitting into layers. Fragments of tooth enamel were common and clearly were small fragments or broken into pieces, whilst burnt fragments, usually white in colour, were noted from many of the deposits. On the basis of the colour, these fragments have probably been subjected to high temperatures or have been exposed to prolonged heating.

Identified remains from this trench were restricted to the main domestic mammals, with cattle and pig remains being most numerous. A single small fragment of a dog maxilla was identified from Context 1228. A large quantity of bone (619 fragments) could not be identified other than to broad groupings and of these 226 fragments were wholly unidentifiable. The large mammal category included very many fragments of tooth enamel, most of which showed recent damage. These were probably cattle teeth but there was too much damage to make definitive identifications. Medium-sized mammal fragments were fewer in number and were mainly rib, shaft and vertebra fragments, although a few cranium fragments were also present.

The cattle bones included a range of skeletal elements with the ditch fills, in particular, dominated by head and terminal limb elements (metapodials, carpals, tarsals and phalanges). Remains of pigs showed a similar emphasis, whilst the few caprovid bones included several meat-bearing bones such as scapulae and pelves.

Age-at-death data were somewhat scarce. Caprovid remains included a mandible with some of the teeth in situ which was from an animal of approximately two years old, whilst an isolated third molar was from a slightly older individual aged three to four years when it was killed. Other isolated teeth were, for the most part, too fragmented to provide any information.

DISCUSSION

The vertebrate assemblage from this site was mainly concentrated in ditch and pit fills and deposits of early 2nd to early 3rd century date. Detailed analysis of the vertebrate remains was hindered by the poor preservation which resulted in there being few fragments that could be identified to species or that were able to provide useful biometrical and age-at-death information. The high proportion of tooth enamel fragments clearly highlighted a taphonomic bias in favour of certain skeletal elements, i.e. those which are more durable and survive better when preservational conditions are poor – teeth tend to be prevalent in such conditions because of their higher mineral content (in comparison to bone). Given the problems with preservation and limitations resulting from taphonomic factors, the apparent frequencies of different species represented and the identification of disposal patterns may not truly reflect the economic significance of the species or the original composition of the discarded remains. However, with these caveats in mind, some information was gleaned from the assemblage.

Identified vertebrate material consisted mainly of cattle, pig and caprovid remains; no bird bones or wild mammal species were noted. Taking the assemblage as a whole (it was too small to try to differentiate between date periods), the relative abundance of the different species suggested that cattle were prevalent (60%), with pig forming a quarter of the identified assemblage and caprovids being of less importance (12 %). This was supported to some extent by the unidentified component, almost 40% of which consisted of large mammal fragments, in comparison with the 5% of fragments representing medium-sized mammals. Horse and dog were the only other species to be identified but remains of these were few. From the little age-at-death data obtained, most of the animals represented were adult when they were slaughtered, although the presence of younger animals was hinted at for each of the three main species.

The higher proportion of cattle is noted at the adjacent Fairclough Homes site- 76% of the identifiable assemblage (see Viner in Williams and Reid 2008, 170). Sheep/goat and pig formed a much smaller proportion of the assemblage, while horse and dog were represented by single fragments.

At the community dig site skeletal element representation for cattle and pigs suggested that the bones probably represented primary butchery waste from the initial preparation of carcasses. Consumption refuse (represented by meat-bearing elements such as scapulae, radii, femora and pelves) was also present but only formed a minor component of the assemblage, with most of the few caprovid remains being in this category.

Much of the material was recovered from features which must have been convenient places for the disposal of rubbish, e.g. ditch 1221, pit 909 and tank 403. Material from Trench 1, associated with the road and its surface, may represent bones deliberately brought to the site to be used as hard core.

Despite the many limitations of this assemblage, it does seem to fit well with other vertebrate material of this date, particularly from similar sites which have close associations with military facilities. A predominance of cattle is characteristic of many Roman assemblages and shows a marked change from the dietary preference for lamb and mutton typically suggested by British Late Iron Age assemblages (Albarella 2007). However, this shift in emphasis did not occur everywhere, nor was it instantaneous following the Roman invasion, but, generally, the earliest occurrences of this trend have been noted from assemblages recorded from military sites and the civilian settlements which grew up around them (King 1978). It has been suggested that this change represents an adoption of ideas associated with the incoming Roman military population; the cultural and dietary traditions represented being more characteristic of the Low Countries and Germany from where most of the army based in Britain originated (Dobney 2001). Higher frequencies of pig remains have also been noted at early Roman military and urban sites (King 1978) and some researchers (King op. cit.; Dobney 2001) have suggested that higher proportions of pig remains may provide evidence of higher status occupation or could, perhaps, be related to occupancy by people of Mediterranean origin. Whether this is the case at Middlewich is unclear but the activities in the area do seem to have been closely linked to the military installation nearby.

REFERENCES

Albarella, U. (2007). The end of the Sheep Age: people and animals in the Late Iron Age, pp. 389-402 in Haselgrove, C. and Moore, T. (eds). The Later Iron Age in Britain and beyond. Oxford: Oxbow Books.

Cappers, R. T. J., Bekker, R. and Jans J. E. A. (2006). Digitale Zadenatlas van Nederland. Gronigen Archaeological Studies 4. Gronigen: Barkhuis Publishing & Gronigen University Library.

Dobney, K. (2001). A place at the table: the role of vertebrate zooarchaeology within a Roman research agenda, pp. 36-46 in James, S. and Millett, M. (eds.), Britons and Romans: advancing an archaeological agenda. Council for British Archaeology Research Reports 125. York.

Dobney, K. and Rielly, K. (1988). A method for recording archaeological animal bones: the use of diagnostic zones. Circaea 5, 79-96.

Grant, A. (1982). The use of tooth wear as a guide to the age of domestic ungulates, pp. 91-108 in Wilson, B., Grigson, C. and Payne, S. (eds.), Ageing and sexing animal bones from archaeological sites. British Archaeological Reports, British Series 109. Oxford.

King, A. C. (1978). A comparative survey of bone assemblages from Roman sites in Britain. Bulletin of the Institute of Archaeology 15, 207-32.

O’Connor, T. P. (1989). Bones from Anglo-Scandinavian Levels at 16-22 Coppergate. The Archaeology of York 15 (3), 137-207 + plates VII-XI. London: Council for British Archaeology.

Payne, S. (1973). Kill-off patterns in sheep and goats: the mandibles from Asvan Kale. Anatolian Studies 23, 281-303.

Payne, S. (1987). Reference codes for the wear state in the mandibular cheek teeth of sheep and goats. Journal of Archaeological Science 14, 609-14.

Van der Veen, M. and O’Connor, T. (1998). The expansion of agricultural production in late Iron Age and Roman Britain, pp. 127-43 in Bayley, J. (ed.), Science in Archaeology: an agenda for the future. London: English Heritage.

von den Driesch, A. (1976). A guide to the measurement of animal bones from archaeological sites. Peabody Museum Bulletin 1. Cambridge Mass.: Harvard University.

Williams, M and Reid, M (2008). Salt: Life and Industry. Excavations at King Street, Middlewich, 2001-2002. BAR British Series 456

The human bone recovered from the excavation (the contents of a cremation urn in Trench 2, context 208) was submitted for analysis to Dr J A Pearson and Laura O’Gorman at the School of Archaeology, Classics and Egyptology, University of Liverpool.

SUMMARY

Total bone weight analysed: 468g
Estimated number of individuals: 1
Age: adult
Sex: indeterminate
Presence of animal bone: one long bone shaft of microfauna
Cremation temperature: exceeded 650°C
Completeness of skeleton: all areas represented (but no teeth)

Cremation urn during excavation, Trench 2

DETAILED DESCRIPTION OF FRAGMENTS

All fragments were examined and separated into the following fragment types:
1) Non-diagnostic/unidentifiable
2) Diagnostic
3) Identifiable

NON-DIAGNOSTIC FRAGMENTS

The non-diagnostic fragments were separated in small, medium and large fragments and weight of these recorded as the following:
Smaller fragments (<4mm) : 68 g Larger fragments (>4mm) : 125 g

For comparative purposes, Mays (1998) reports that a complete adult skeleton weighs approximately 2kg.

DIAGNOSTIC FRAGMENTS

The diagnostic fragments were examined for positively identifiable fragments (cranial and post cranial) and the remainder next separated into long bone diaphyses and articulations. The majority of the long bone diaphyses could not be identified to element, but there are fragments from bones with larger circumferences (suggestive of the presence of humerus/femur/tibia) and those with smaller circumferences (suggestive of radius/fibula/ulna/clavicle).

IDENTIFIABLE FRAGMENTS

Cranial

A large number of fragments (~60) were identified as belonging to the cranium including the petrous part of the temporal. Four additional fragments were also identified to the eye/cheek region, three to the maxilla and one to the mandibular condyle

Axial
Approximately 12 fragments of vertebrae were identified, two possible portions of the sacrum and 4 fragments of ribs.

Appendicular

In addition to evidence above for long bones, several fragments could be positively assigned to particular elements: a portion of the tibia displaying the nutrient foramen, two curved articulations belonging to the proximal/distal femur, proximal humerus or perhaps the proximal talus. One fragment of fibula ~3cm long, three fragments of metacarpals or metatarsals and one distal fragment of a finger or toe phalanx.

Notably absent fragments
Mays (1998) reports that a number of fragments are commonplace in cremation burials, and a few of these are absent here. The odontoid process of the axis vertebra, one of the mandibular condyles and one side of the petrous portion of the temporal. Also, there were no dental remains of any kind.

NUMBERS OF INDIVIDUALS

There is no duplication of any identifiable bones and thus would conclude that this cremation represents the remains of a single individual.

AGE AND SEX

No dental remains were recovered, despite the presence of fragments of the maxilla and mandible and so the individual has been identified as an adult due to present and complex cranial sutures and thickness of the cranial vault bone and muscularity of the fibula. No diagnostic features of the skeleton relating to sex were present, thus sex could not be identified.

OTHER MATERIALS PRESENT


A few small stones and a single long bone shaft of microfauna were picked out.

ESTIMATED TEMPERATURE OF CREMATION

Most of the cremated bone was whitish in colour. But the outer surfaces of the denser bones occasionally displayed a white exterior and black/blue/grey interior. Therefore, the cremation probably exceeded 650 degrees Celsius (Mays 1998), to calcine most bones but that this temperature was not maintained long enough to penetrate the denser long bones.

REFERENCES

Mays, S (1998) Archaeology of Human Bones. Routledge

THE ENVIRONMENTAL SAMPLES

Alexandra Schmidl, Örni Akeret and John Carrott

SUMMARY

Most of the biological remains recovered from the ten sediment samples were plant remains well preserved by waterlogging, with a few also well preserved by charring. The concentrations of organic finds varied, with rather few being recorded from six of the deposits but the four others yielding interpretatively valuable assemblages of plant remains and three of these also giving useful numbers of invertebrate macrofossils. There were very few records for cultivated plant taxa – only occasional cereal remains. Overall, the larger plant and invertebrate assemblages recovered suggested that these deposits were principally composed of waste from the housing of domestic animals, together with subsequent colonizers of the cleared material. No identifiable microfossil remains other than of pollen grains/spores were detected.

Waterlogged silver birch timbers in pit 1247, Trench 12

METHODS

Seven sediment subsamples were processed by the excavators prior to delivery to PRS, and the unsorted ‘flots’ (or washovers) for analysis. The weights and volumes of the subsamples were recorded before being placed onto 500 micron nylon mesh in a sieving tank. The light organic fraction was washed over into a 500 micron sieve to collect the washover fractions.

In addition, three sediment subsamples were processed by PRS. The lithologies of these deposits were recorded using a standard pro forma and subsamples taken and processed, broadly following the techniques of Kenward et al. (1980; 1986), for the recovery of plant and invertebrate macrofossils. Plant and invertebrate remains in the processed subsample fractions (residues and flots) were recorded briefly by ‘scanning’ using a low-power microscope (x7 to x45), identifiable taxa and other biological and artefactual components being listed on paper.

Plant remains were identified by comparison with modern reference material at PRS and the use of published works (Cappers et al. 2006, Jacomet 2006). Identifiable taxa and other components being listed on paper. Nomenclature for plant taxa follows Stace (1997).

The flots were also examined for insect and other invertebrate remains using a low-power microscope (to x45). Unfortunately, the work required for full analysis of the invertebrate assemblages was far in excess of the financial resources available to the project and, consequently, these remains were only rather superficially recorded. Nomenclature for insect follows Kloet and Hincks (1964-77).

The three samples of sediment submitted were also examined for the eggs of intestinal parasitic nematodes using the ‘squash’ technique of Dainton (1992). Assessment slides were scanned at 150x magnification with 600x used where necessary. Although primarily for the detection of intestinal parasitic nematode eggs, the ‘squash’ technique routinely reveals other microfossil remains, and where present these have been noted.

RESULTS

The results are presented in context number order by trench. Archaeological information, provided by the excavator, is given in square brackets. A brief summary of the processing method follows in round brackets after the sample numbers. No unprocessed sediment remains from these samples. The plant remains recovered are listed in Table 1.

Click to view Table 1

TRENCH 1

Context 142 [possible 1st century AD buried turf] Sample 4/T (10 litres sieved to 500 microns with washover; processed by the excavator)

The small washover (2 g, dried) consisted mostly of modern rootlets and some charcoal (to 3 mm), with a few decayed wood fragments, unidentifiable plant fibres and sand, but there was also a very small number of waterlogged seeds and fruits including common nettle, orache/goosefoot and silver birch.

TRENCH 9

Context 908 [waterlogged fill of pit 909, 2nd century AD] Sample 2/T (10 litres sieved to 500 microns with washover; processed by the excavator)

There was a small washover (12 g, dried) mostly of ‘woody’ debris including decayed wood, bark and twig fragments, with some rootlets and charcoal (to 5 mm), and a few unidentifiable plant fibres and invertebrate remains. The last were restricted to occasional poorly preserved pieces of unidentified beetle sclerite (eroded and rather fragmented), however.

The deposit produced a moderate amount of decayed seeds and fruits of plants representing various habitats, but dominated by taxa growing on heath/moor and grassland (especially damp), such as gypsywort, lesser/marsh stitchwort, lesser spearwort, marsh pennywort, sedge, silver birch, spike-rush and tormentil. There were also leaves of bogmoss which probably arrived with imported peat. Other botanical remains derived from waste/rough ground and included black nightshade, common nettle, hemlock, henbane, knotgrass, orache/goosefoot and white/red dead-nettle. In addition, a few remains of plant species growing in hedges (e.g. blackberry/raspberry, elder, hazel) were recorded and there was also a single charred grain of barley.

TRENCH 12

Context 1215 [fill of ditch 1224] Sample 16/T (20 litres sieved to 500 microns with washover; processed by the excavator)

The tiny washover (1 g, dried) contained sand, culm fragments (to 20 mm) and rootlets, with a little charcoal (to 2 mm), cinder (to 3 mm) and unidentifiable plant fibres. A rather small range of waterlogged seeds and fruits were recovered from this deposit. The most abundant plant taxon in this assemblage was common nettle, but there were also traces of other wild plant species such as blackberry/raspberry, elder, orache/goosefoot and selfheal. In addition, two charred caryopses of brome were found.

Context 1220 [buried soil beneath track 1206] Sample 15/T (20 litres sieved to 500 microns with washover; processed by the excavator)

There was a small washover (2 g, dried) mostly of rootlets, with a few leaf fragments, and a little sand, charcoal (to 5 mm) and slag/cinder (to 3 mm). Identifiable botanical remains were restricted to a small number of waterlogged seeds and fruits, including chickweed, common nettle, dock, elder, gypsywort, orache/goosefoot and white/red dead-nettle, representing habitats such as waste ground and hedges. There were also two charred caryopses of brome in this assemblage

Context 1222 [fill of ditch 1221] Sample 7/T (20 litres sieved to 500 microns with washover; processed by the excavator)

The small washover (4 g, dried) consisted mainly of slightly silted unidentified charcoal (to 15 mm), with some rootlets and a very little sand, but there were also a few waterlogged nuts and catkin-scales of silver birch and seeds of orache/goosefoot. Other identifiable remains were restricted to two charred caryopses of brome.

Context 1257 [‘peaty’ basal fill of circular pit 1247 within 2nd century Roman industrial building] Sample 11/T (2 kg/4.5 litres sieved to 300 microns with paraffin flotation; processed by PRS)

Moist, dark grey (externally) to light to mid orange-brown (internally), brittle, layered and compressed, slightly sandy slightly clay, fine and coarse herbaceous detritus and amorphous organic sediment. There were some areas where clay and silt formed a greater, but still minor, part of the deposit. Stones (2 to 6 mm) were present and ‘straw’ was abundant in the sample.

The fairly large wet residue (1.4 litres) and small flot (~25 ml) both consisted mostly of ‘straw-like’ material and small unidentifiable plant fibres, but there were also wood fragments, twiglets, bud scales, cereal pericarps, ‘stems’ and ‘leaves’ of mosses (Bryophyta), small undisaggregated lumps of possible herbivore dung, some charcoal and a few rootlets. Twigs and leaves of heather were the most commonly identified plant remains from this deposit. In addition, there were moderate numbers of very well preserved waterlogged seeds and fruits. However, the identifiable component of these remains was restricted to a rather small range of taxa: seeds and fruits of bent, sedge, clover, cornflower, dock, hemp-nettle, selfheal and wild basil. There were also a few charred utricles of sedge present.

There were a few variably preserved invertebrate remains in the flot. Some beetle sclerites (e.g. of Cercyon analis(Paykull) and ?Monotoma picipes Herbst) were very well preserved and there were also some fragile remains present (e.g. wing fragments), whereas other macrofossils were heavily eroded (though fragmentation was generally quite low). Other remains present included sclerites of staphylinid beetles, a small weevil (probably Ceutorhynchus sp.), Helophorus ?flavipes (Fabricius), some fly puparia and a few mites (Acarina).

The microfossil ‘squash’ was mostly fragments of plant tissue, with some pollen grains/spores and a very small inorganic content. No eggs of intestinal parasitic nematodes were seen.
Context 1265 [burnt layer surrounding possible 2nd century hearth within 2nd to 3rd century industrial building] Sample 6/T (10 litres sieved to 500 microns with washover; processed by the excavator)

The small washover (3 g, dried) was mostly of rootlets and slightly silted charcoal (to 10 mm), with some sand, a single earthworm egg capsule and a few waterlogged nuts and catkin-scales of silver/downy birch.
Context 1278 [‘peaty’ fill of pit 1247 within late 2nd to 3rd century Roman industrial building] Sample 9/T (2 kg/3.8 litres sieved to 300 microns with paraffin flotation; processed by PRS)

Moist, mid to dark grey-brown to very dark grey (with some areas which were mid to dark orange-brown internally), brittle, layered and compressed, slightly sandy silty clay fine and coarse herbaceous detritus and amorphous organic sediment. There was a minor component of light to mid grey clay silt. Stones (2 to 20 mm), fly puparia, wood, ‘straw’ and rootlets were present in the sample.

There was a large wet residue (1.8 litres) and a small flot (~15 ml) both largely composed of tiny pieces of wood, ‘straw-like’ fragments and other unidentifiable plant fibres, with some undisaggregated lumps of possible herbivore dung. Again, a large number of the twigs and leaves were of heather, together with ‘leaves’ of mosses (Bryophyta) and bracken. Fruits and seeds were well preserved by waterlogging and included representatives of wild plant taxa such as brome, buttercup, chickweed, cornflower, foxtail, grass family, hemp-nettle, meadow-grass, mouse-ear, orache, ribwort plantain, rush, sedge, selfheal and tormentil. There were also a few remains of cultivated plant species, in the form of glume bases of spelt wheat, from this deposit.

The flot contained a substantial assemblage (forming perhaps 30% to 50% of the total volume) of highly variably preserved invertebrate remains. Many of the remains were very well preserved but still more were reduced to ‘filmy’ scraps of cuticle. There were numerous beetle remains, including those of Cercyon analis, Cryptopleurum ?minutum(Fabricius), various staphylinids (including Omalium rivulare (Paykull)), ?Monotoma picipes, Anobium punctatum(Degeer) (the woodworm beetle), some Carabidae and weevils (Curculioindae, probably including Ceutorhynchussp.). There were also many fly puparia and mites (Acari), some sculpted and other ants (Formicidae) and occasional remains of relatively fragile invertebrate body parts in the form of wing fragments.

The microfossil ‘squash’ was mostly fragments of plant tissue, with very many pollen grains/spores and a small inorganic content. No eggs of intestinal parasitic nematodes were seen.
Context 1280 [lens of black fibrous organic material in pit 1247 within late 2nd to 3rd century Roman building] Sample 12/T (1 kg/1.4 litres sieved to 300 microns with paraffin flotation; processed by PRS)

Wet, very dark grey-brown to black, unconsolidated to slightly sticky (working more or less soft), slightly sandy slightly clay silt. Stones (2 to 20 mm) and twigs were present and fine and coarse herbaceous detritus was abundant in the sample.

The fairly large wet residue (600 ml) and small flot (~10 ml) were, again, largely composed of plant remains. More than half of the plant material was charred or partially charred. This deposit consisted mostly of wood fragments, twiglets, bark, charcoal, ‘straw-like’ fragments, fibres, rootlets, bud scales, mosses and small lumps of possible herbivore dung. Identifiable charred botanical remains included brome, common knapweed, dock, hulled barley, rush (perianth), sedge and selfheal. In addition, waterlogged seeds and fruits of bedstraw, clover, corncockle, gypsywort, hawkbit and meadow-grass were noted.

The flot gave relatively few invertebrate remains most of which were of fly puparia. There were also some mites, ants and a few beetle remains (including Cercyon analis, staphylinids, ?Monotoma picipes and a weevil head). Preservation of the remains was, again, highly variable, with some being very well preserved and others no more than heavily eroded (‘filmy’) scraps – some of the remains appeared to be charred.

The microfossil ‘squash’ was mostly of charred (approximately two-thirds) and uncharred (most of the remaining third) organic detritus, with a small inorganic content. No eggs of intestinal parasitic nematodes were seen.
Context 1287 [fill of possible pre-Roman pit 1273] Sample 13/T (15 litres sieved to 500 microns with washover; processed by the excavator)

The tiny washover (~1 g, dried) was mostly modern rootlets and some sand, with a few leaf fragments and a little charcoal (to 3 mm). Identifiable botanical macrofossil remains were restricted to a few waterlogged seeds and fruits of common nettle, silver birch and small nettle.

DISCUSSION

Most of the plant remains recovered from the ten sediment samples were well preserved by waterlogging and a small amount of them by charring. The concentrations of finds varied between the deposits, being relatively low in Context 142 (Trench 1) and Contexts 1215, 1220, 1222, 1265 and 1287 (all from Trench 12), whereas the other four (Context 908 from Trench 9 and Contexts 1257, 1278 and 1280 from Trench 12) produced abundant seeds and fruits. The same pattern was seen for the diversities of the plant taxa represented (see Table 1).

The processed subsamples from Contexts 908, 1257, 1278 and 1280 gave interpretatively valuable assemblages of well preserved seeds and fruits and very variably preserved invertebrate remains. In Contexts 908, 1257 and 1278, all or almost all of the plant material was waterlogged, whereas in Context 1280 there was also a considerable proportion of charred remains. All of the plant remains recovered from the four contexts – whether preserved by waterlogging or charring – were in an excellent state of preservation and represented taxa of various habitats (see Table 1).

The plant assemblages were dominated by remains of wild taxa indicative of different habitats: heath and moor, wet or damp places (e.g. wet grassland, ponds, marsh, banksides), grassland, disturbed and rough ground, scrub and hedgerow (the abundant remains suggesting nearby, perhaps adjacent, hedges) and, to a lesser degree, areas of disturbed waste ground.

Overall, rather few finds of cultivated plants were found at this site – Contexts 908, 1222 and 1280 each gave a small number of charred hulled barley grains. The records of spelt wheat from Context 1278 accord well with the date of the building (late 2nd to 3rd century) in which the pit was situated, as this was an important cereal for the Roman period (Greig 1991, Van der Veen and O’Connor 1998). These food plant remains were presumably charred by accident during some stage of crop processing (e.g. parching, drying) or cooking, but were too few to be of any real interpretative value.

In Contexts 1257 and 1278 remains of heather (Calluna vulgaris (L.) Hull) were conspicuously frequent. This species is characteristic of heath land and may have been imported with turves, perhaps used for roofing or to serve as bedding (for animals or humans). It may conceivably also have been used as a dye plant (Kenward and Hall 1995) but, in the present archaeological context, the most likely utilisation would seem to be as bedding for animals.

Lumps of compacted and layered short plant fragments which are likely to be herbivore dung were found in Contexts 1257, 1278 and 1280. This, together with fragmentary cereal pericarp, grassland species and crop weeds, which might have been gathered with hay or eaten by animals grazing in pastures or meadows suggests that ‘stable manure’ (sensu Kenward and Hall 1997) was probably a major component of these sediments. Such ‘hay’-rich deposits have also been recorded from other Roman sites and especially from military establishments (see Hall and Huntley 2007).

In addition, a few Sphagnum ‘leaves’ were found in Context 908 (fill of pit 909) from Trench 9, together with other wetland species such as marsh pennywort, sedge, spike-rush and tormentil, which suggest an origin in imported peat, presumably brought to the site for use as fuel or, perhaps, in construction (see Hall 2003).

Invertebrate remains were present in the three samples for which paraffin flotation was employed (Contexts 1257, 1278 and 1280) and abundant in the flot from Context 1278 (Sample 9). Each of the assemblages exhibited highly variable preservation, but included some very well preserved remains. Remains of the beetle Cercyon analis were recovered from all three deposits. This species lives in decaying organic matter of various kinds (including dung and compost) and supports the suggestion that the lumps of compacted and layered short plant fragments seen were of herbivore dung. The presence of Omalium rivulare and Cryptopleurum ?minutum in Context 1278 lend further support, again indicating the presence of decaying organic material and specifically dung, respectively. The presence of a component of animal dung could also be one explanation for the presence of fly puparia in all three of these samples. Small numbers of poorly preserved and unidentified beetle sclerites were also seen in the washover from Context 908 but these were of no interpretative value.

Although some of the processed subsamples from Trench 12 were from contexts located within an industrial building, only traces of material indicative of industrial activity (i.e. cinder/slag) were found from just two deposits (Contexts 1215 and 1220). Overall, the larger plant and invertebrate assemblages recovered suggested that these deposits were principally composed of waste from the housing of domestic animals (e.g. soiled bedding material, traces of cereals – perhaps from fodder), together with subsequent colonizers of the cleared material.

The only identifiable microfossils recorded from the ‘squash’ subsamples were pollen grains/spores—numerous in Context 1278, present in Context 1257 and absent from Context 1280. In particular, no eggs of intestinal parasitic nematodes were seen.

REFERENCES

Cappers, R. T. J., Bekker, R. and Jans J. E. A. (2006). Digitale Zadenatlas van Nederland. Gronigen Archaeological Studies 4. Gronigen: Barkhuis Publishing & Gronigen University Library.

Dainton, M. (1992). A quick, semi quantitative method for recording nematode gut parasite eggs from archaeological deposits. Circaea, the Journal of the Association for Environmental Archaeology 9, 58 63.

Dobney, K., Hall, A. R., Kenward, H. K. and Milles, A. (1992). A working classification of sample types for environmental archaeology. Circaea, the Journal of the Association for Environmental Archaeology 9 (for 1991), 24-6.

Greig, J. R. A. (1991). The British Isles, pp. 299-334 in Van Zeist, W., Wasylikowa, K. and Behre, K.-E. (eds), Progress in Old World palaeoethnobotany. Rotterdam/Brookfield: Balkema.

Hall, A. (2003). Recognition and characterisation of turves in archaeological occupation deposits by means of macrofossil plant remains. Centre for Archaeology Report 16/2003. English Heritage.

Hall, A. R. and Huntley J. P. (2007). A Review of the Evidence for Macrofossil Plant Remains from Archaeological Deposits in Northern England. Research Department Report Series 87/2007. English Heritage.

Jacomet, S. (2006). Identification of cereal remains from archaeological sites – 2nd edition. published by the IPAS, Basel University.

Kenward, H. K., Hall, A. R. and Jones, A. K. G. (1980). A tested set of techniques for the extraction of plant and animal macrofossils from waterlogged archaeological deposits. Science and Archaeology 22, 3-15.

Kenward, H. K., Engleman, C., Robertson, A. and Large, F. (1986). Rapid scanning of urban archaeological deposits for insect remains. Circaea 3, 163–172.

Kenward, H. K. and Hall, A. R. (1995). Biological evidence from Anglo Scandinavian deposits at 16 22 Coppergate. The Archaeology of York 14 (7), 435-797 + xxii + loose figures. York: Council for British Archaeology.

Kenward, H. K. and Hall, A. R. (1997). Enhancing bioarchaeological interpretation using indicator groups: stable manure as a paradigm. Journal of Archaeological Science 24, 663-673.

Kloet, G. S. and Hincks, W. D. (1964-77). A check list of British Insects (2nd edition). London: Royal Entomological Society.

Stace, C. (1997). New Flora of the British Isles: second edition. Cambridge: Cambridge University Press.
